KINO-CV-D25501/N26001 SBC
Page 25

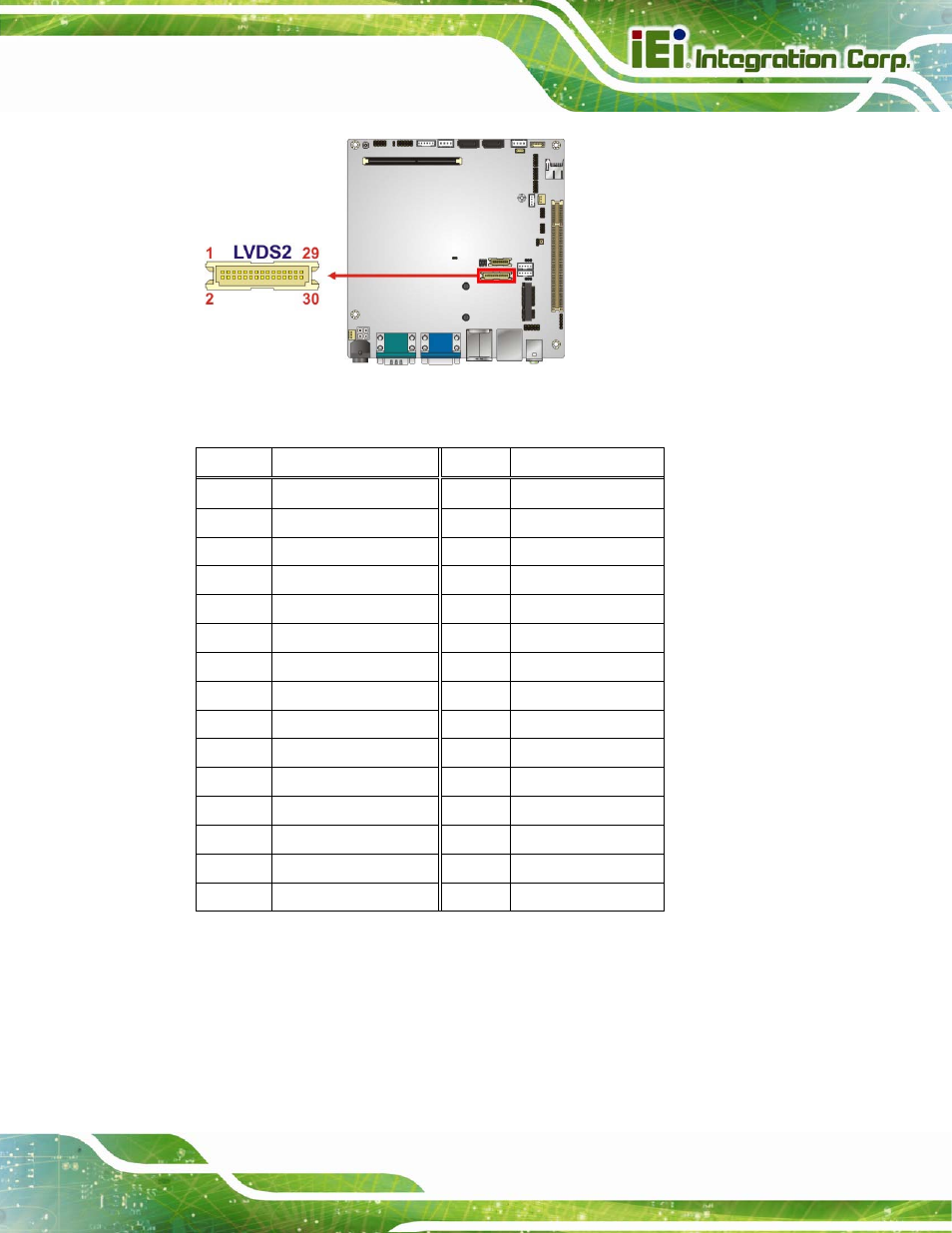

Figure 3-9: LVDS2 Connector Location
Pin Description Pin Description
1 GND 2 GND
3 LVDS_DATA0 4 LVDS_DATA0#
5 LVDS_DATA1 6 LVDS_DATA1#
7 LVDS_DATA2 8 LVDS_DATA2#
9 LVDS_CLK1 10 LVDS_CLK1#
11 LVDS_DATA3 12 LVDS_DATA3#
13 GND 14 GND
15 LVDS_DATA4 16 LVDS_DATA4#
17 LVDS_DATA5 18 LVDS_DATA5#
19 LVDS_DATA6 20 LVDS_DATA6#
21 LVDS_CLK2 22 LVDS_CLK2#
23 LVDS_DATA7 24 LVDS_DATA7#
25 GND 26 GND
27 VCC_LCD 28 VCC_LCD
29 VCC_LCD 30 VCC_LCD
Table 3-10: LVDS2 Connector Pinouts
