SPCIE-5100DX PICMG 1.3 CPU Card

Page 74

5.2 Main

The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.

The Main menu gives an overview of the basic system information.

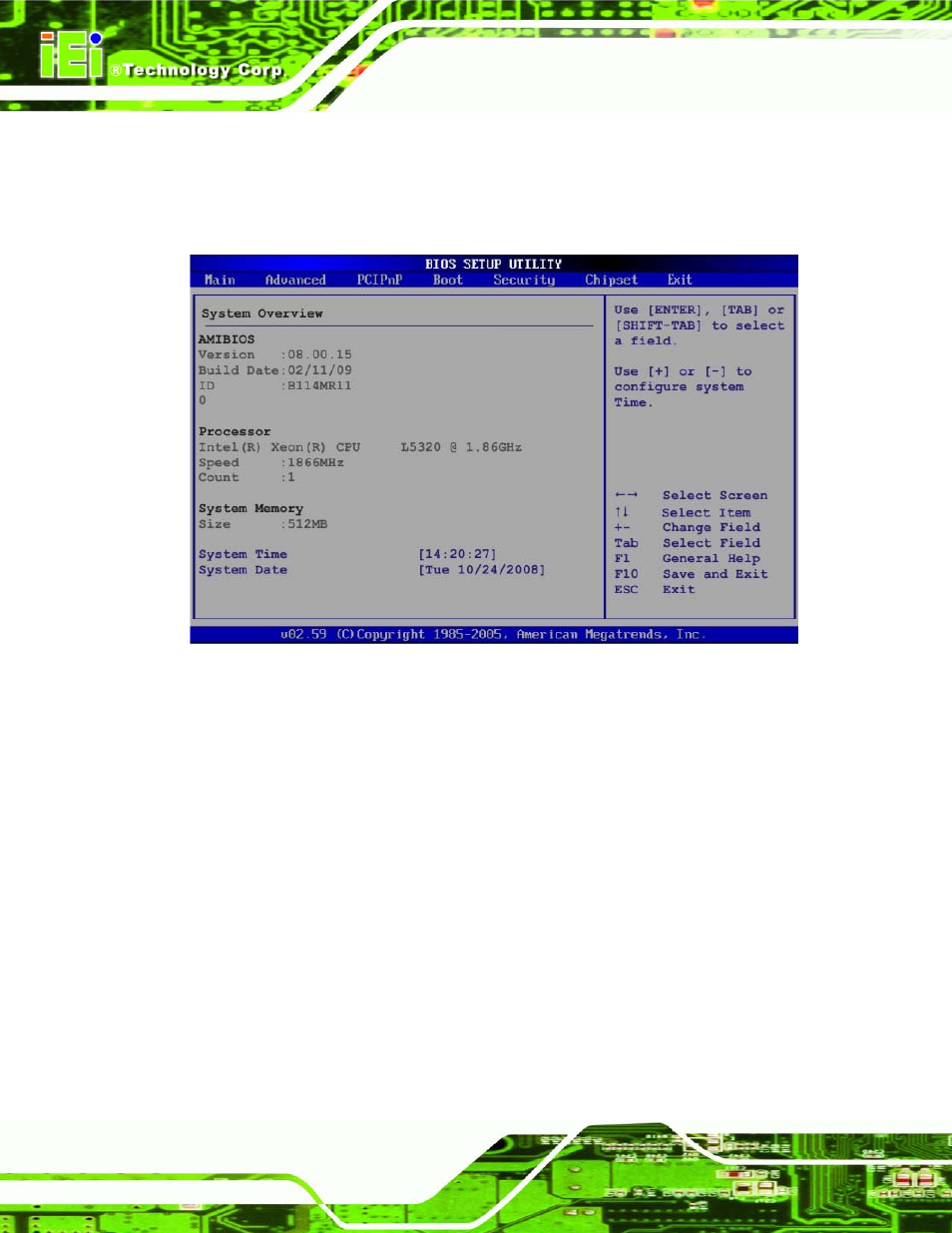

BIOS Menu 1: Main

System Overview

The System Overview lists a brief summary of different system components. The fields in

System Overview cannot be changed. The items shown in the system overview include:

AMI BIOS: Displays auto-detected BIOS information

o

Version:

Current BIOS version

o

Build Date: Date the current BIOS version was made

o

ID: Installed BIOS ID

Processor: Displays auto-detected CPU specifications

o

Type: Names the currently installed processor

o

Speed: Lists the processor speed

o

Count: The number of CPUs on the motherboard

System Memory: Displays the auto-detected system memory.
