SPCIE-5100DX PICMG 1.3 CPU Card

Page 52

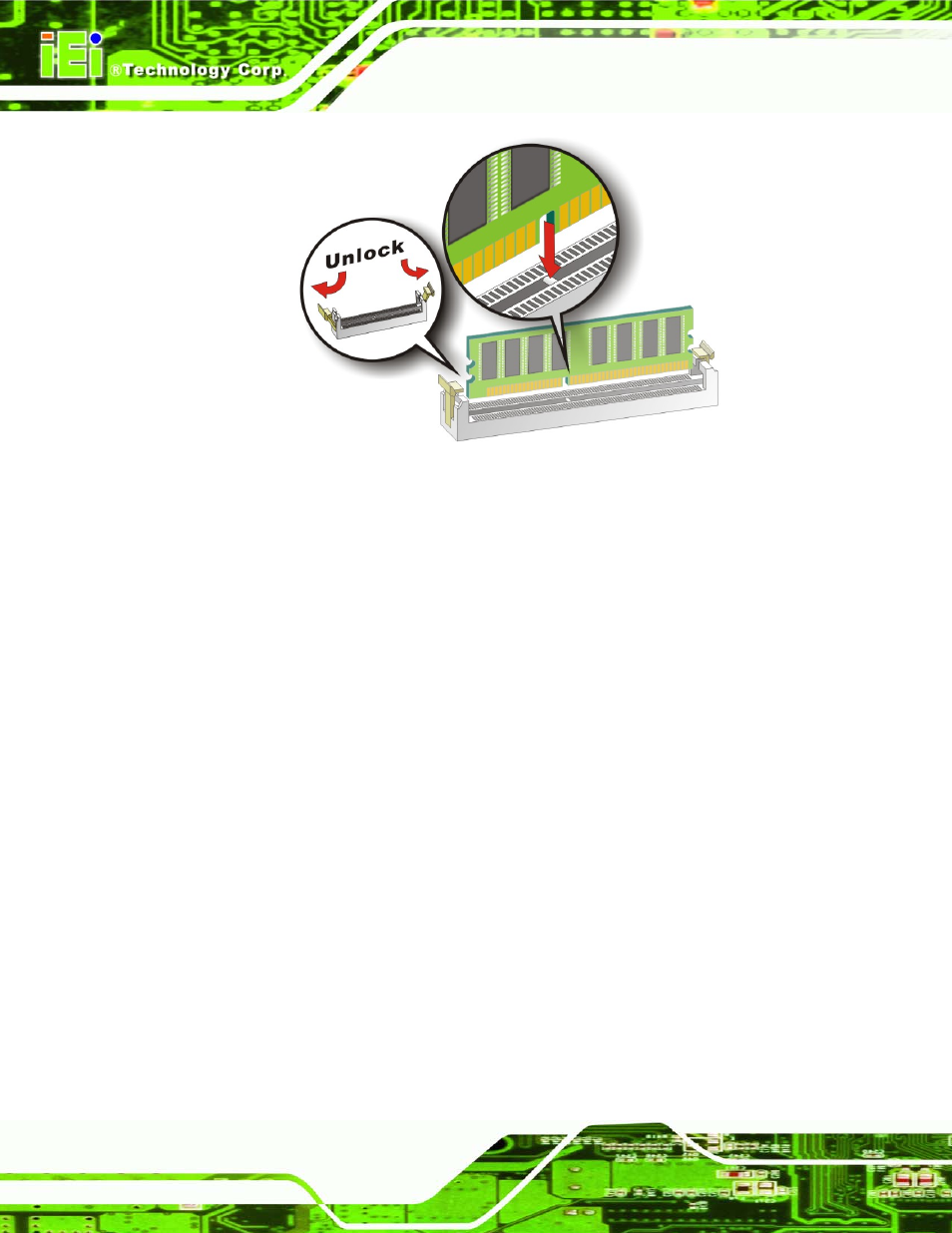

Figure 4-10: Installing a DIMM

Step 1:

Open the DIMM socket handles. The DIMM socket has two handles that secure

the DIMM into the socket. Before the DIMM can be inserted into the socket, the

handles must be opened. See Figure 4-10.

Step 2:

Align the DIMM with the socket. The DIMM must be oriented in such a way that

the notch in the middle of the DIMM must be aligned with the plastic bridge in the

socket. See Figure 4-10.

Step 3:

Insert the DIMM. Once properly aligned, the DIMM can be inserted into the

socket. As the DIMM is inserted, the white handles on the side of the socket will

close automatically and secure the DIMM to the socket. See Figure 4-10.

Step 4:

Removing a DIMM. To remove a DIMM, push both handles outward. The

memory module is ejected by a mechanism in the socket.
