SPCIE-5100DX PICMG 1.3 CPU Card

Page 25

CN Pinouts:

See Table 3-7

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.

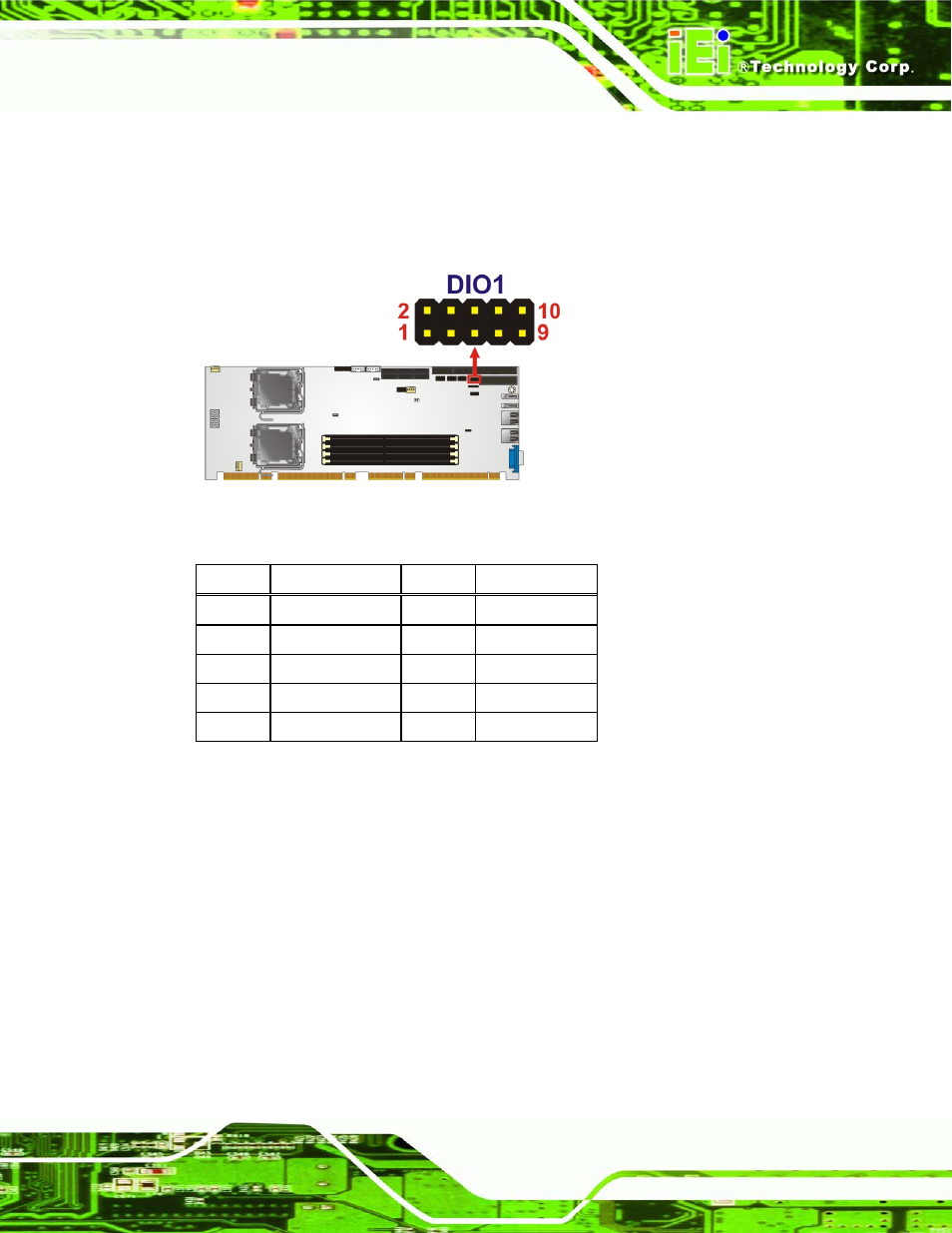

Figure 3-6: DIO Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

VCC (+5V)

3

Output 3

4

Output 2

5

Output 1

6

Output 0

7

Input 3

8

Input 2

9

Input 1

10

Input 0

Table 3-7: DIO Connector Pinouts

3.2.6 Floppy Disk Connector (34-pin)

CN Label:

FDD1

CN Type:

34-pin header (2x17)

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-8

The floppy disk connector is connected to a floppy disk drive.
