SPCIE-5100DX PICMG 1.3 CPU Card

Page 28

7 PWRBTN+

8 SPEAKER-

Power

Button

9 PWRBTN-

10

N/C

11 HDDLED+

12 RESET+

HDD LED

13 HDDLED-

Reset

14 RESET-

Table 3-9: Front Panel Connector Pinouts (14-pin)

3.2.8 Infrared Interface Connector (5-pin)

CN Label:

IR1

CN Type:

5-pin header (1x5)

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift

Key Infrared (ASKIR) interfaces. To use the infrared port, configure COM2 as SIR or

ASKIR model in BIOS (see Section 5.3.4). By doing this, the normal RS-232 COM 2 will

be disabled.

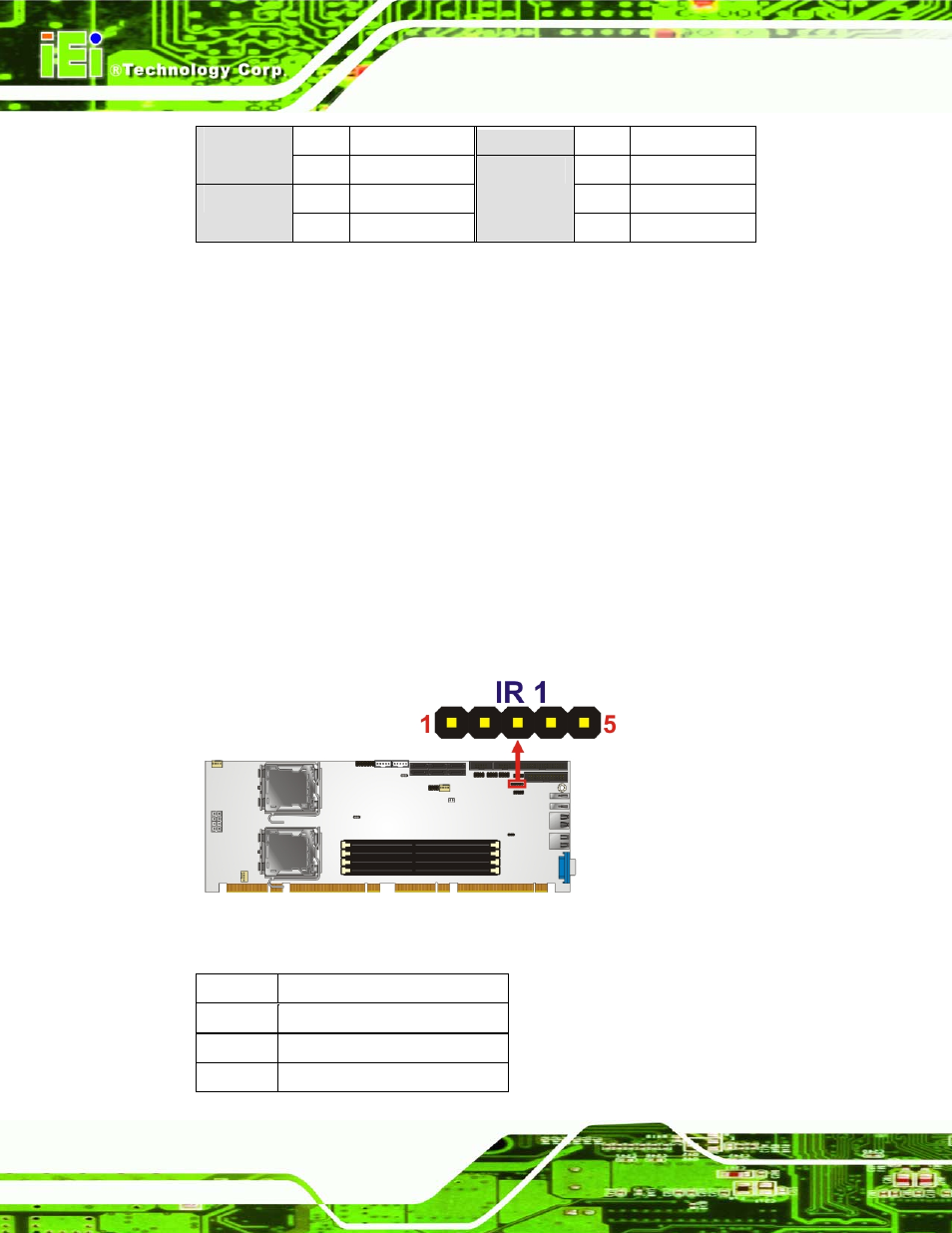

Figure 3-9: Infrared Connector Pinout Locations

PIN NO.

DESCRIPTION

1

VCC (+5V)

2

N/C

3

IR-RX
