SPCIE-5100DX PICMG 1.3 CPU Card

Page 30

3.2.10 Mouse Connector

CN Label:

MS1

CN Type:

5-pin header (1x5)

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The mouse connector can be connected to a standard PS/2 cable or PS/2 cable to add

mouse functionality to the system.

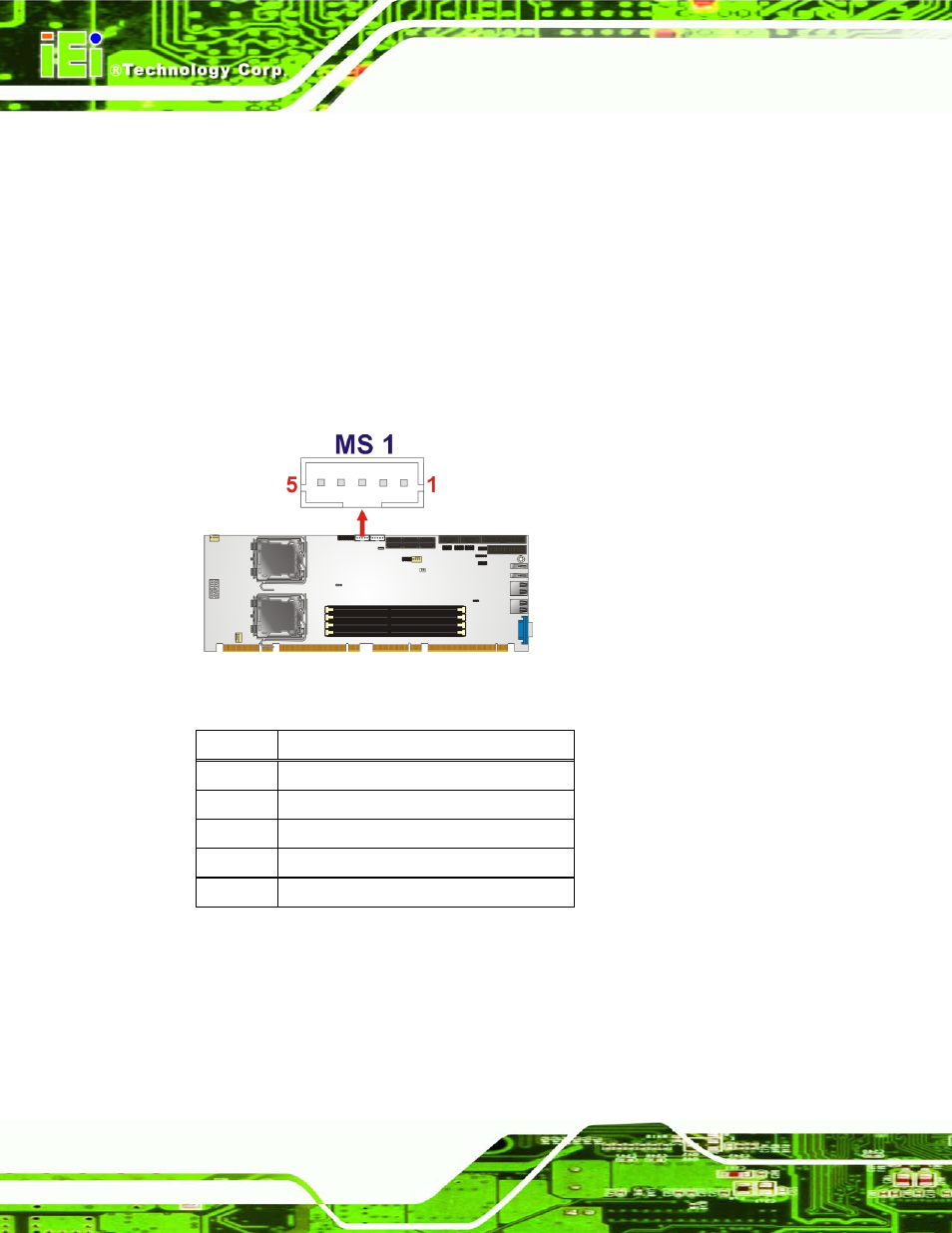

Figure 3-11: Mouse Connector Location

PIN NO.

DESCRIPTION

1

Mouse CLOCK

2

Mouse DATA

3

N/C

4

GROUND

5

VCC

Table 3-12: Mouse Connector Pinouts
