IEI Integration SPCIE-5100DX - Manual (Page 133)

SPCIE-5100DX PICMG 1.3 CPU Card
Page 119
Step 2: Name the RAID volume. Enter a name for the RAID volume, or press E NTER to
accept the default volume name. Upper and lower case alphabetic, numeric,
space, and underscore characters are all applicable for naming an array. See
Figure A-2.

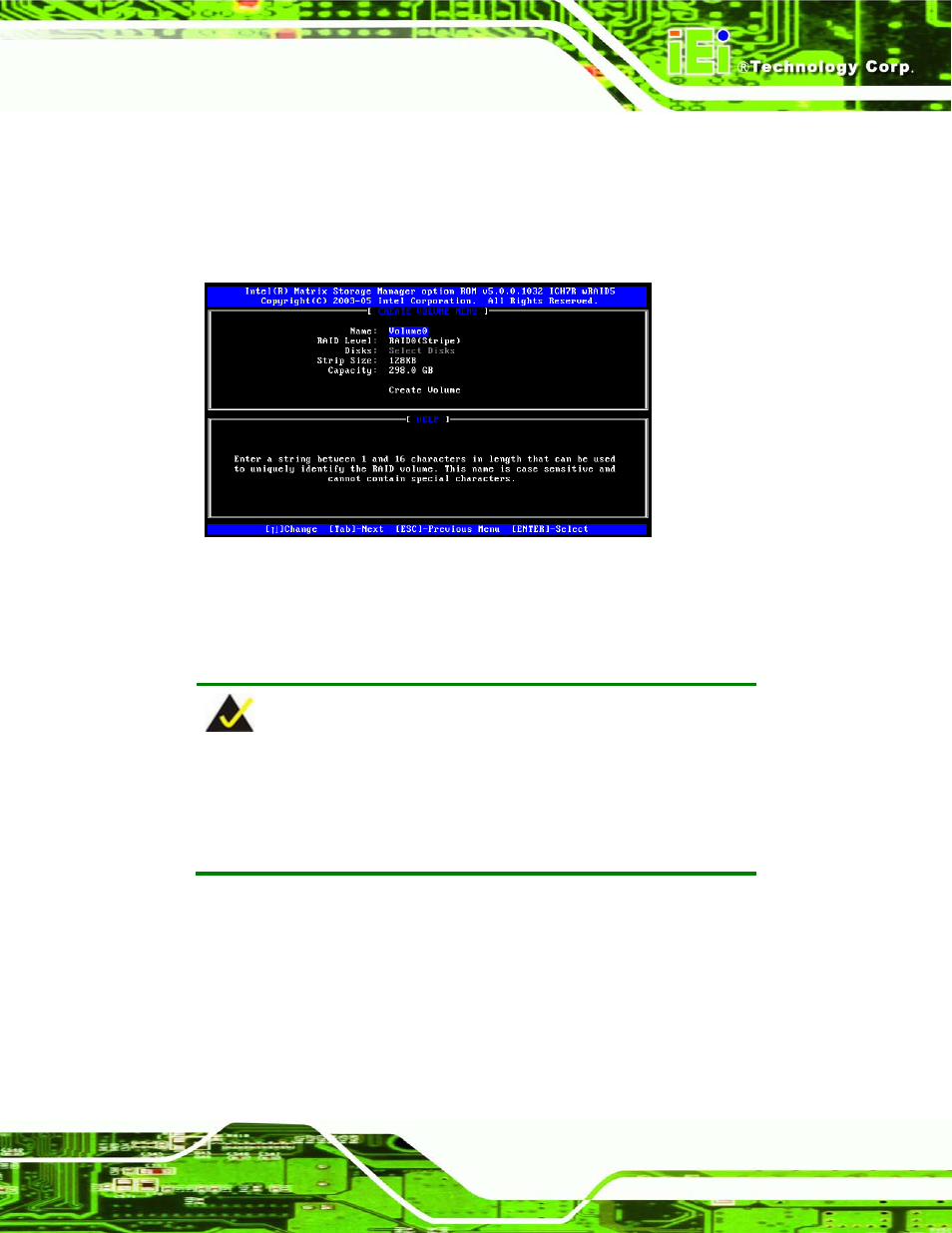

Figure A-2: Create RAID Volume Name
Step 3: Choose the RAID level. Select a RAID level from the list. RAID levels include
RAID 0, 1, 5 and 10. See Figure A-3.
NOTE:
RAID 0 and RAID1 levels require a minimum of two hard drives.
RAID 10 level requires a minimum of four hard drives.
RAID 5 level requires a minimum of three hard drives.
