SPCIE-5100DX PICMG 1.3 CPU Card

Page 38

PIN NO. DESCRIPTION

4 GROUND

Table 3-20: USB Port Pinouts

3.3.3 VGA Connector

CN Label:

VGA1

CN Type:

15-pin Female

CN Location:

See Figure 3-17

CN Pinouts:

See Figure 3-19 and Table 3-21

The SPCIE-5100DX has a single 15-pin female connector for connectivity to standard

display devices.

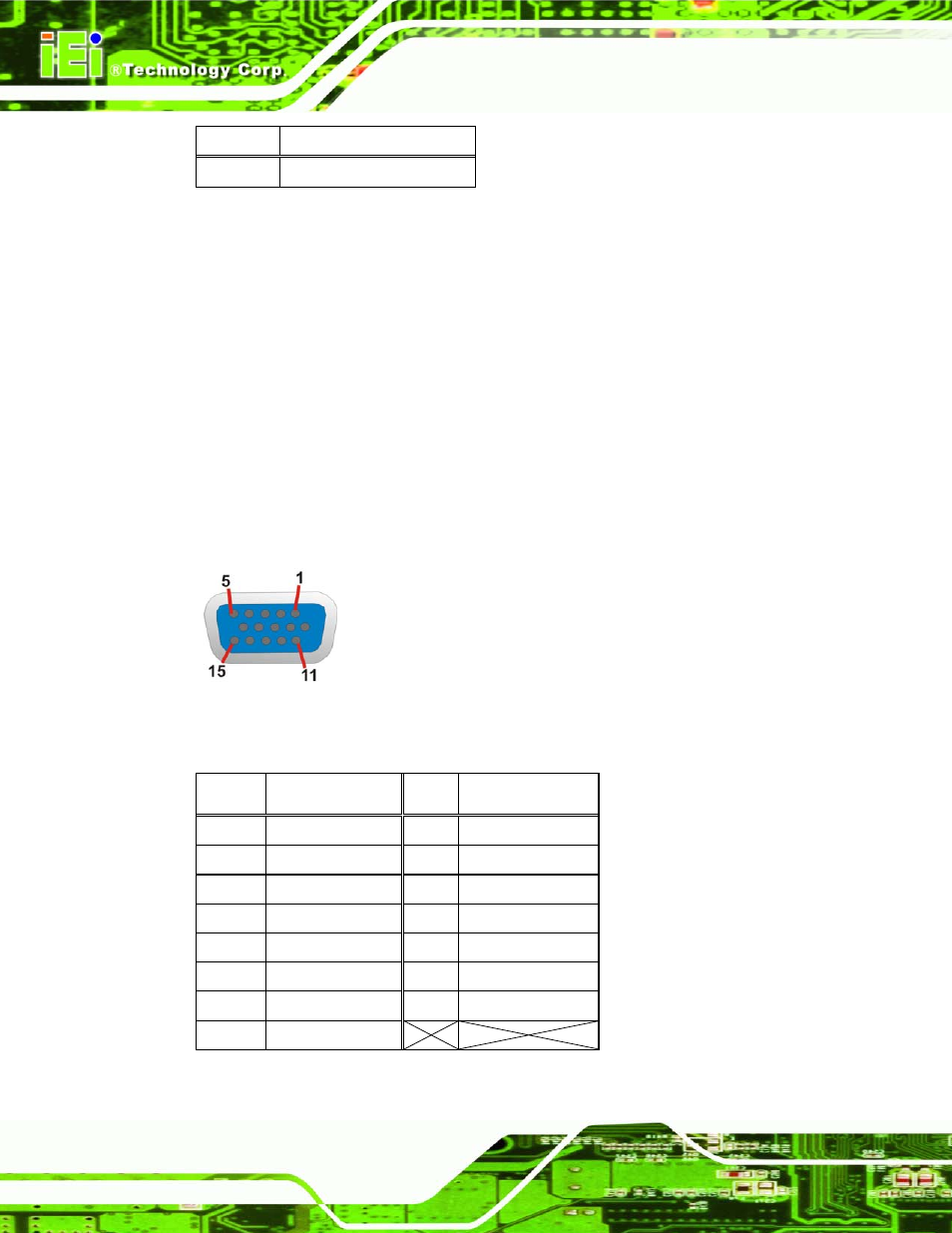

Figure 3-19: VGA Connector

PIN DESCRIPTION

PIN

DESCRIPTION

1 RED

2 GREEN

3 BLUE

4 NC

5 GND

6 GND

7 GND

8 GND

9 VCC

10

GND

11 NC

12 DDC

DAT

13 HSYNC

14 VSYNC

15 DDCCLK

Table 3-21: VGA Connector Pinouts
