SPCIE-5100DX PICMG 1.3 CPU Card

Page 60

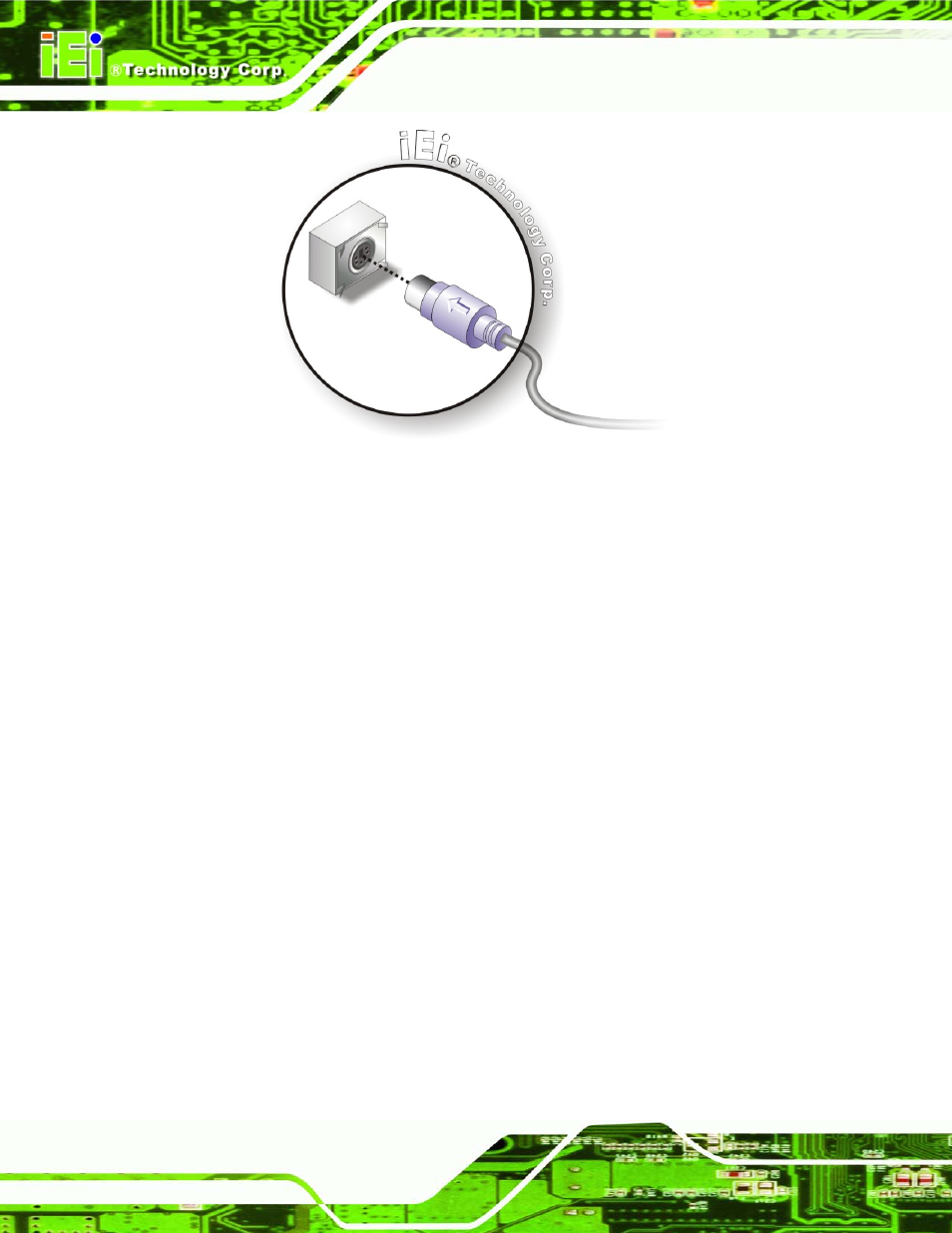

Figure 4-15: PS/2 Connector

4.7.4 Dual RS-232 Cable Connection

The dual RS-232 cable consists of two connectors attached to two independent cables.

Each cable is then attached to a D-sub 9 male connector that is mounted onto a bracket.

To install the dual RS-232 cable, please follow the steps below.

Step 1:

Locate the connectors. The locations of the RS-232 connectors are shown in

Chapter 3.

Step 2:

Insert the cable connectors. Insert one connector into each serial port box

headers. See Figure 4-16. A key on the front of the cable connectors ensures

the connector can only be installed in one direction.
