SPCIE-5100DX PICMG 1.3 CPU Card

Page 89

system and the parallel port device and the

transmission rates between the two are much faster

than the Normal mode

The parallel port is also be compatible with EPP

devices described above

Parallel Port IRQ [IRQ7]

Use the Parallel Port IRQ selection to set the parallel port interrupt address.

IRQ5

IRQ5 is assigned as the parallel port interrupt address

IRQ7 D

EFAULT

IRQ7 is assigned as the parallel port interrupt address

5.3.5 Hardware Health Configuration

The Hardware Health Configuration menu (BIOS Menu 8) shows the operating

temperature, fan speeds and system voltages.

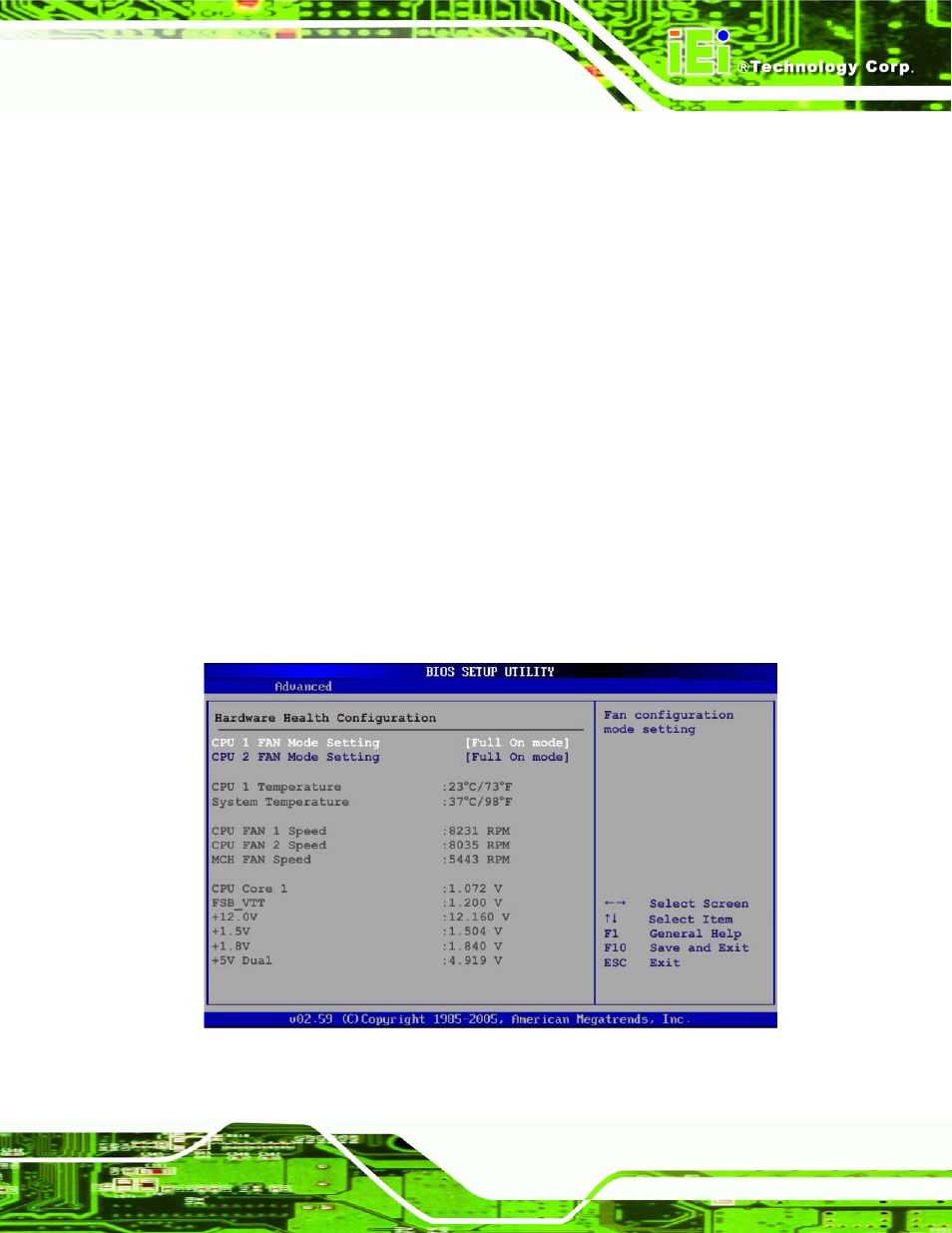

BIOS Menu 8: Hardware Health Configuration
