SPCIE-5100DX PICMG 1.3 CPU Card

Page 37

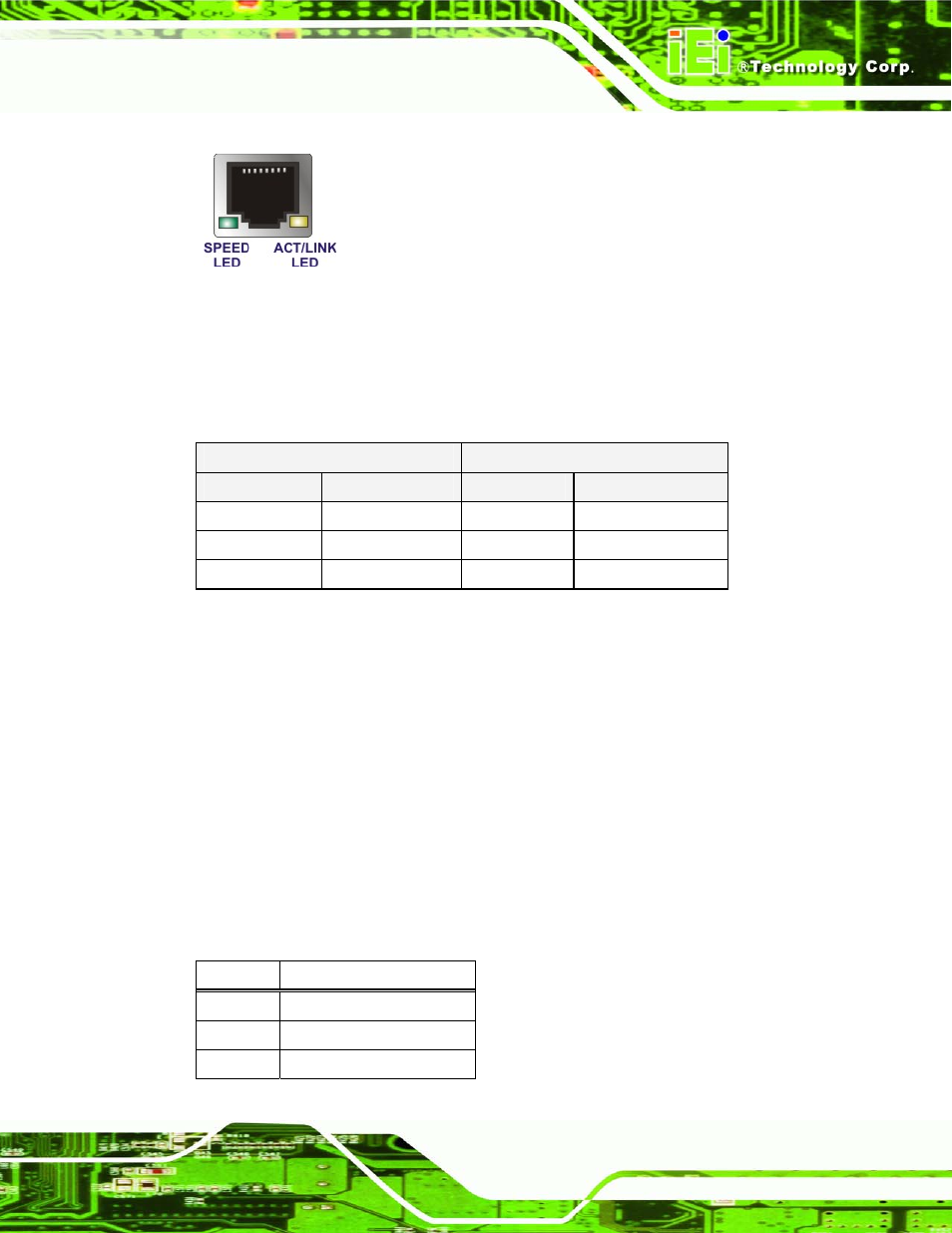

Figure 3-18: RJ-45 Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green

LED indicates activity on the port and the yellow LED indicates the port is linked. See

Table 3-19.

SPEED LED

ACT/LINK LED

STATUS

DESCRIPTION

STATUS

STATUS

OFF

10 Mbps LAN

OFF

OFF

Green

100 Mbps LAN

YELLOW

Linked

ORANGE

1000 Mbps LAN

BLINKING

Data Activity

Table 3-19: RJ-45 Ethernet Connector LEDs

3.3.2 USB Connector

CN Label:

USB_C0 and USB_C1

CN Type:

USB port

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-20

The SPCIE-5100DX has four external USB 2.0 ports. The ports connect to both USB 2.0

and USB 1.1 devices.

PIN NO. DESCRIPTION

1 VCC

2 DATA-

3 DATA+
