SPCIE-5100DX PICMG 1.3 CPU Card

Page 57

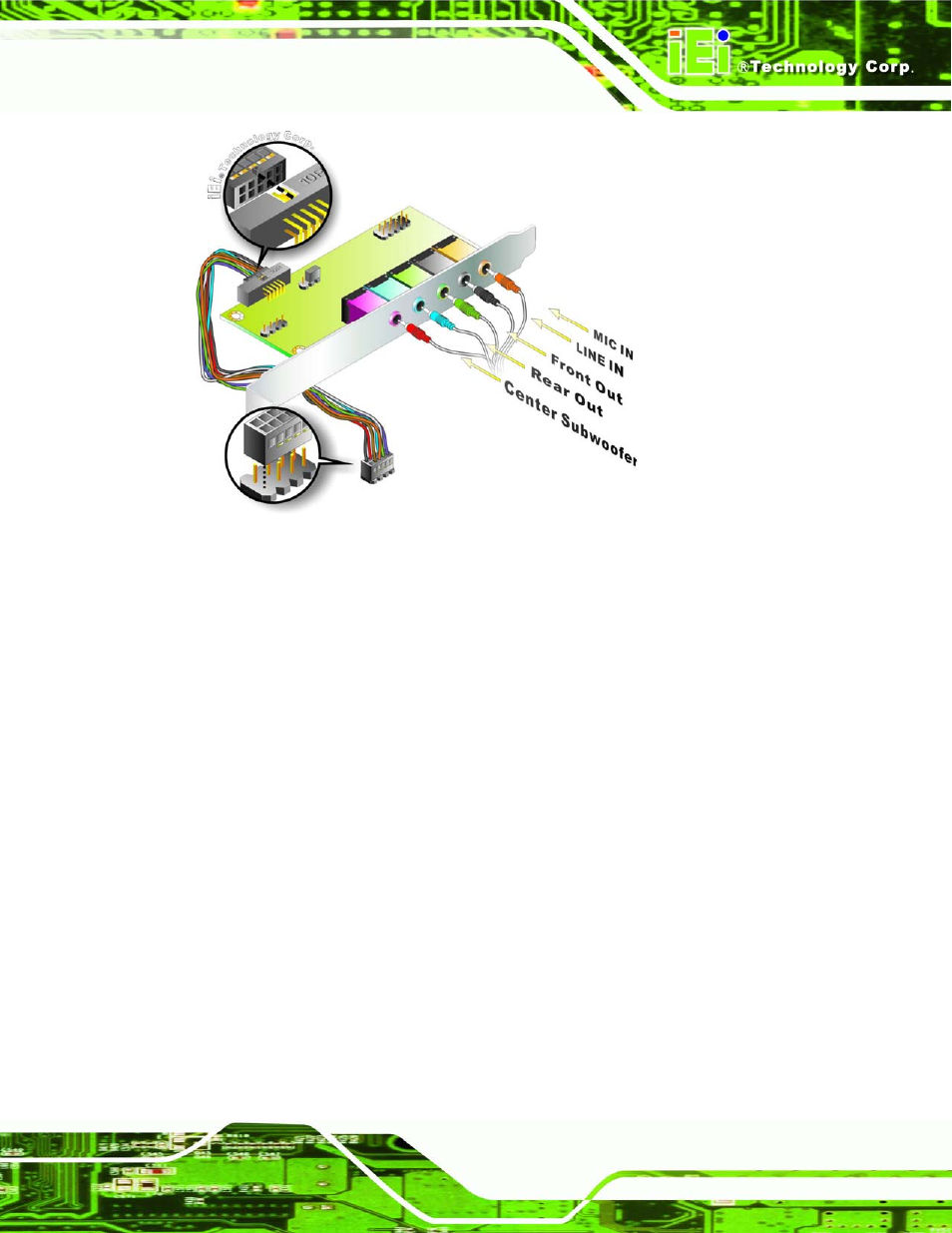

Figure 4-12: Audio Kit Connection

Step 3:

Connect the audio devices. Connect the speakers and the subwoofer to the

appropriate audio jack shown in Figure 4-12.

Step 0:

4.7.2 FDD Cable Connection (Optional)

The FDD flat cable connects to the SPCIE-5100DX to one FDD device. To connect an

FDD to the SPCIE-5100DX please follow the instructions below.

Step 1:

Locate the FDD connector. The location of the FDD device connector is shown

in Chapter 3.

Step 2:

Insert the connector. Connect the FDD cable connector to the on-board

connector. See Figure 4-13. A key on the front of the cable connector ensures it

can only be inserted in one direction.
