SPCIE-5100DX PICMG 1.3 CPU Card

Page 70

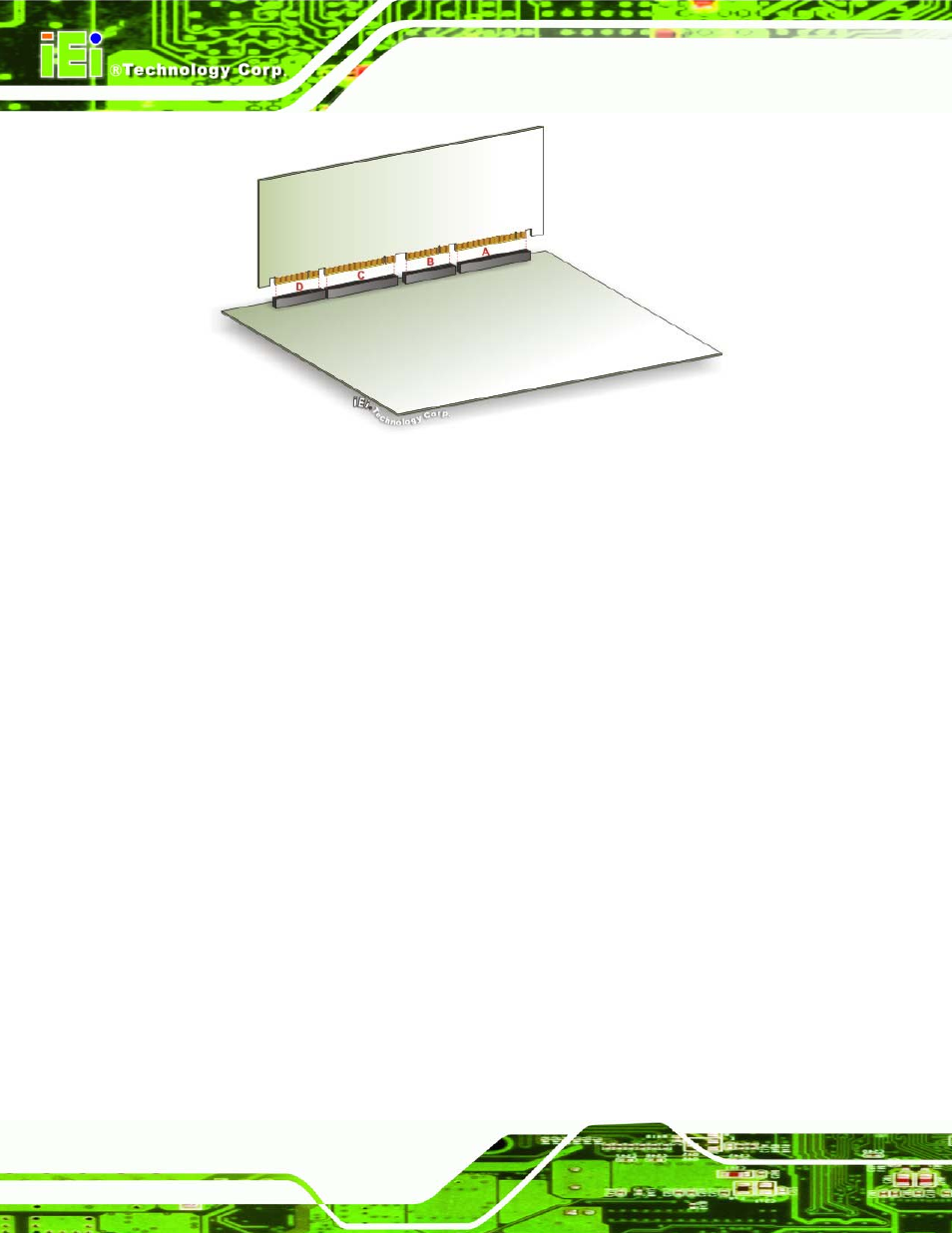

Figure 4-25: SPCIE-5100DX Installation

Step 2:

Insert the connectors. Gently push the CPU card onto the connectors making

sure the CPU card edge connectors are securely inserted into the

corresponding backplane connectors.

Step 0:
