SPCIE-5100DX PICMG 1.3 CPU Card

Page 29

PIN NO.

DESCRIPTION

4

GND

5

IR-TX

Table 3-10: Infrared Connector Pinouts

3.2.9 Keyboard Connector

CN Label:

KB1

CN Type:

5-pin header (1x5)

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The keyboard connector can be connected to a standard PS/2 cable or PS/2 cable to add

keyboard functionality to the system.

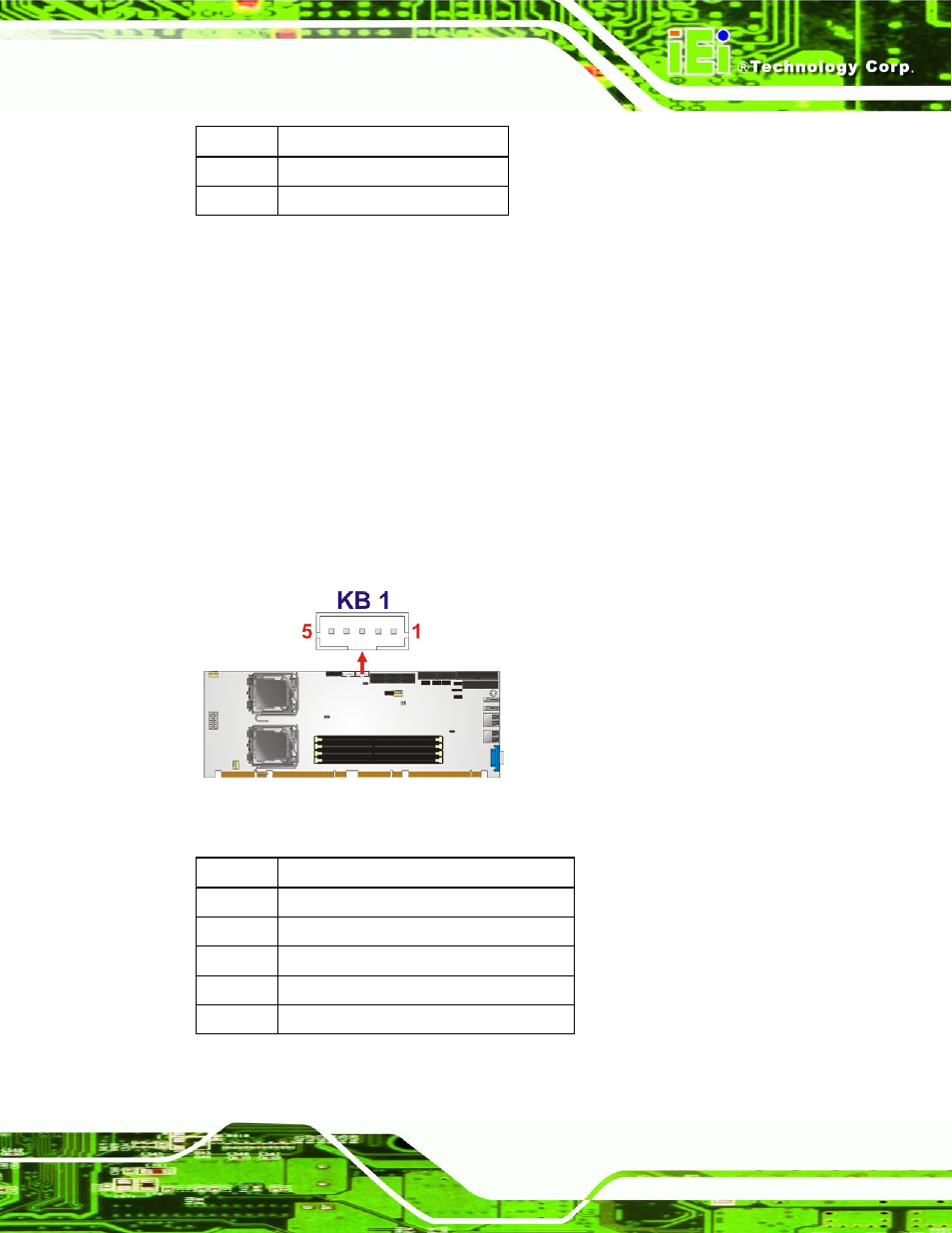

Figure 3-10: Keyboard Connector Location

PIN NO.

DESCRIPTION

1

KEYBOARD CLOCK

2

KEYBOARD DATA

3

N/C

4

GROUND

5

VCC

Table 3-11: Keyboard Connector Pinouts
