SPCIE-5100DX PICMG 1.3 CPU Card

Page 34

3.2.14 SPI Flash Connector

CN Label:

JSPI1

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-16

The 8-pin SPI Flash connector is used for the BIOS.

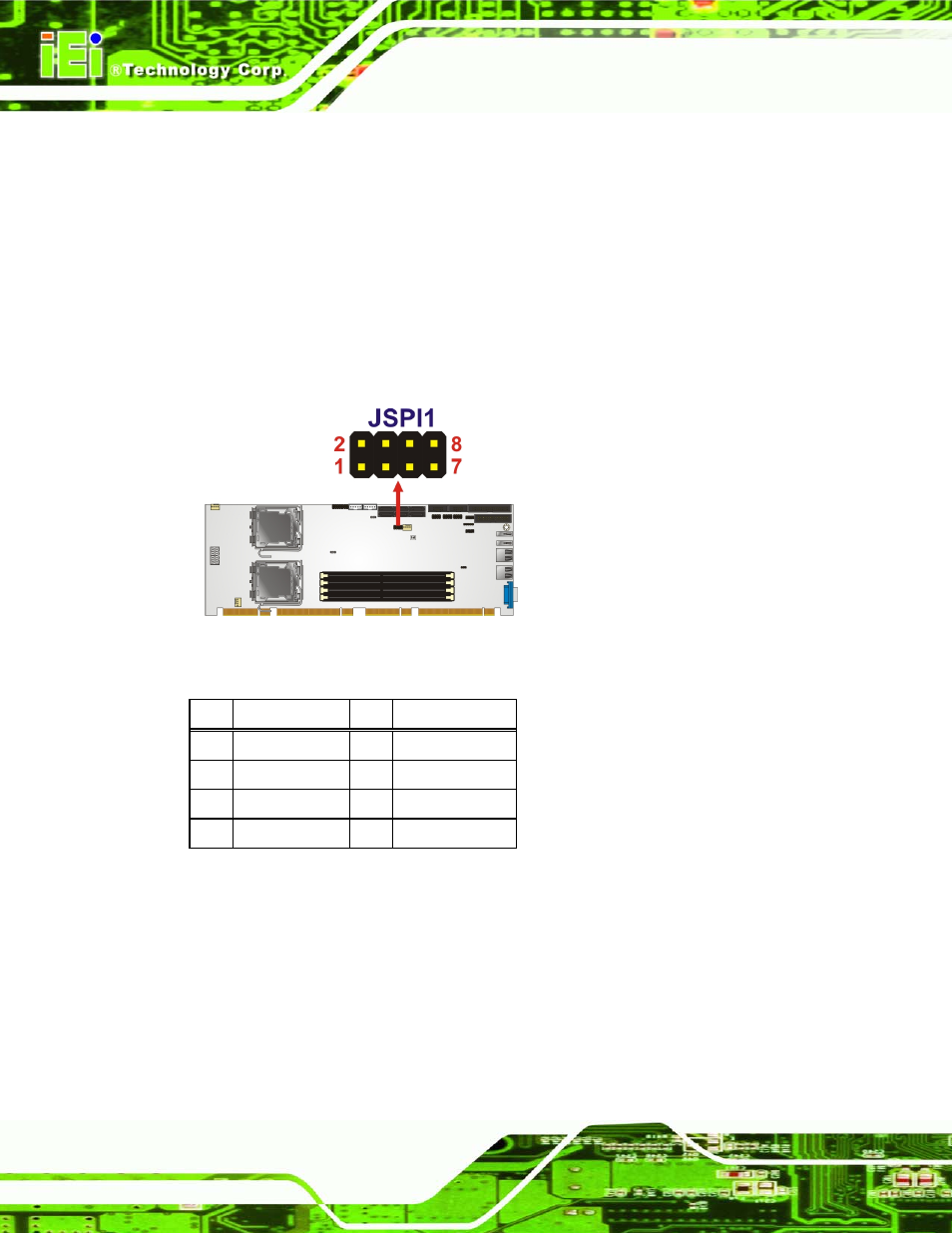

Figure 3-15: SPI Flash Connector Pinouts

PIN DESCRIPTION PIN DESCRIPTION

1

3.3V

2

GND

3

CS0

4

CLOCK

5

SO0

6

SI

7

N/C

8

N/C

Table 3-16: SPI Flash Connector

3.2.15 USB Connectors (Internal)

CN Label:

USB23, USB45 and USB67

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-16
