SPCIE-5100DX PICMG 1.3 CPU Card

Page 31

3.2.11 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin box header

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-13

The 26-pin parallel port connector connects to a parallel port connector interface or some

other parallel port device such as a printer.

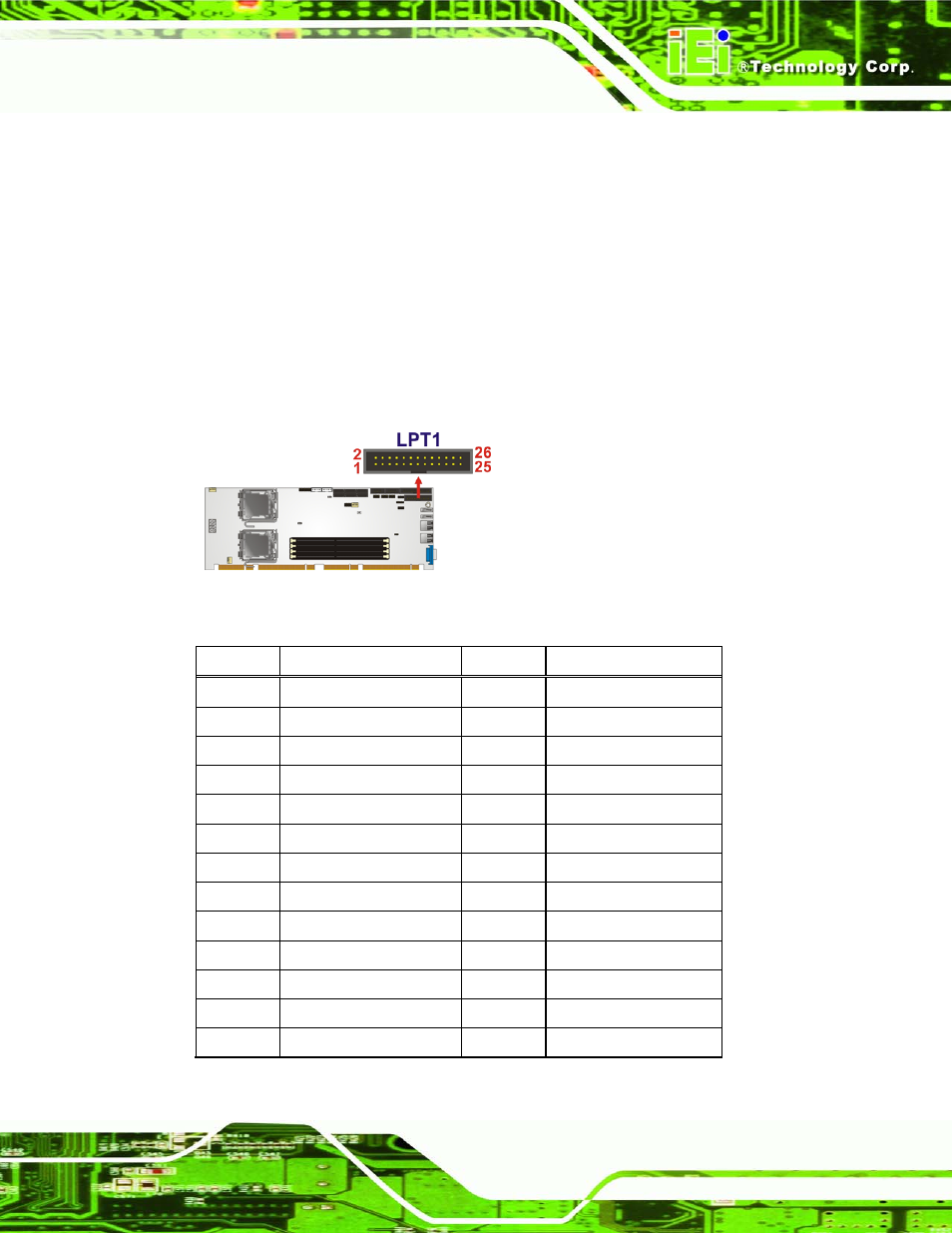

Figure 3-12: Parallel Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

STROBE#

14

AUTO FORM FEED #

2

DATA0

15

ERROR#

3

DATA1

16

INITIALIZE#

4

DATA2

17

PRINTER SELECT LN#

5

DATA3

18

GND

6

DATA4

19

GND

7

DATA5

20

GND

8

DATA6

21

GND

9

DATA7

22

GND

10

ACKNOWLEDGE#

23

GND

11

BUSY

24

GND

12

PAPER EMPTY

25

GND

13

PRINTER SELECT

Table 3-13: Parallel Port Connector Pinouts
