1 external interface panel dimensions – IEI Integration SPCIE-5100DX User Manual
Page 20
SPCIE-5100DX PICMG 1.3 CPU Card
Page 6
1.4.1 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in Figure 1-4.

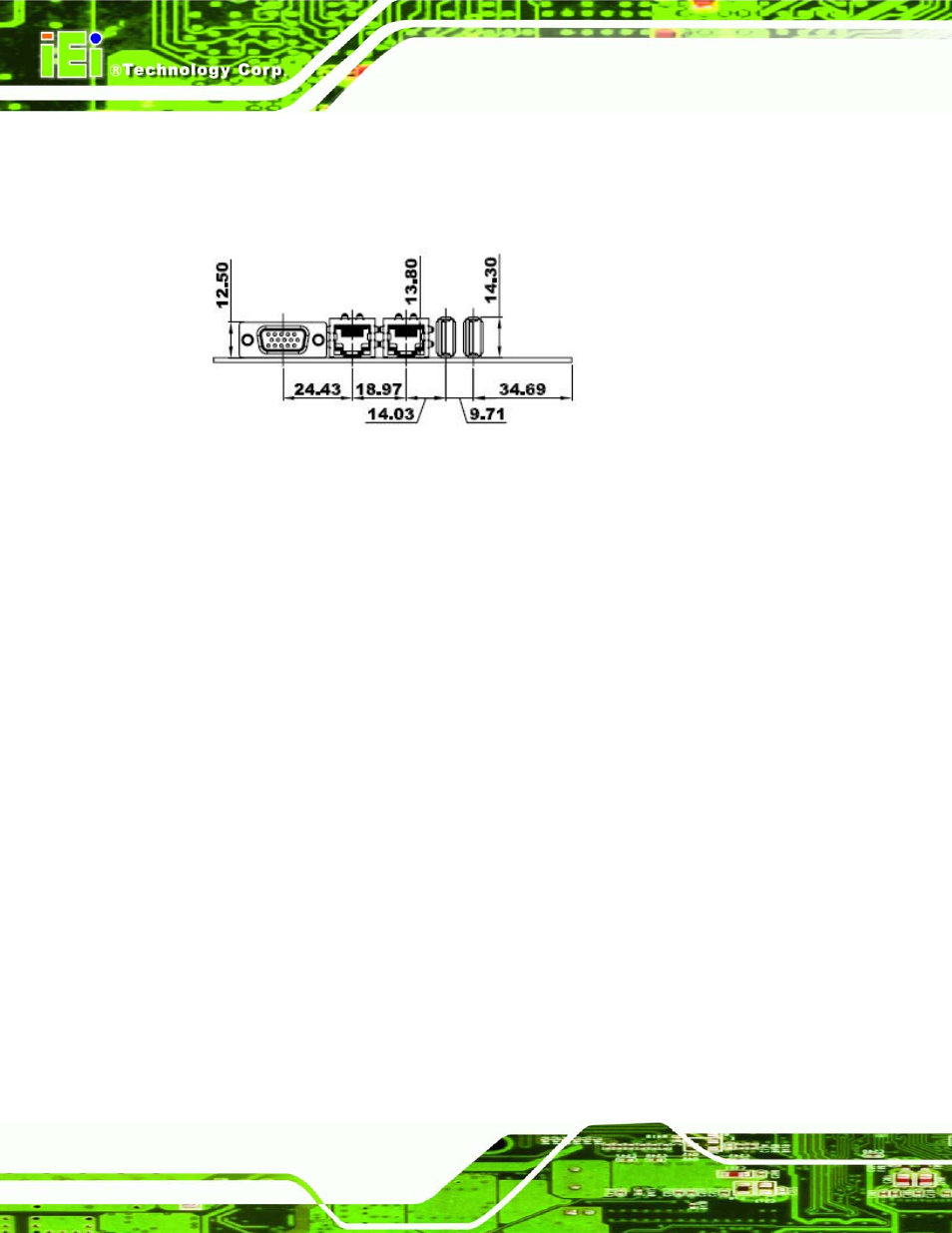

Figure 1-4: External Interface Panel Dimensions (mm)
