SPCIE-5100DX PICMG 1.3 CPU Card

Page 63

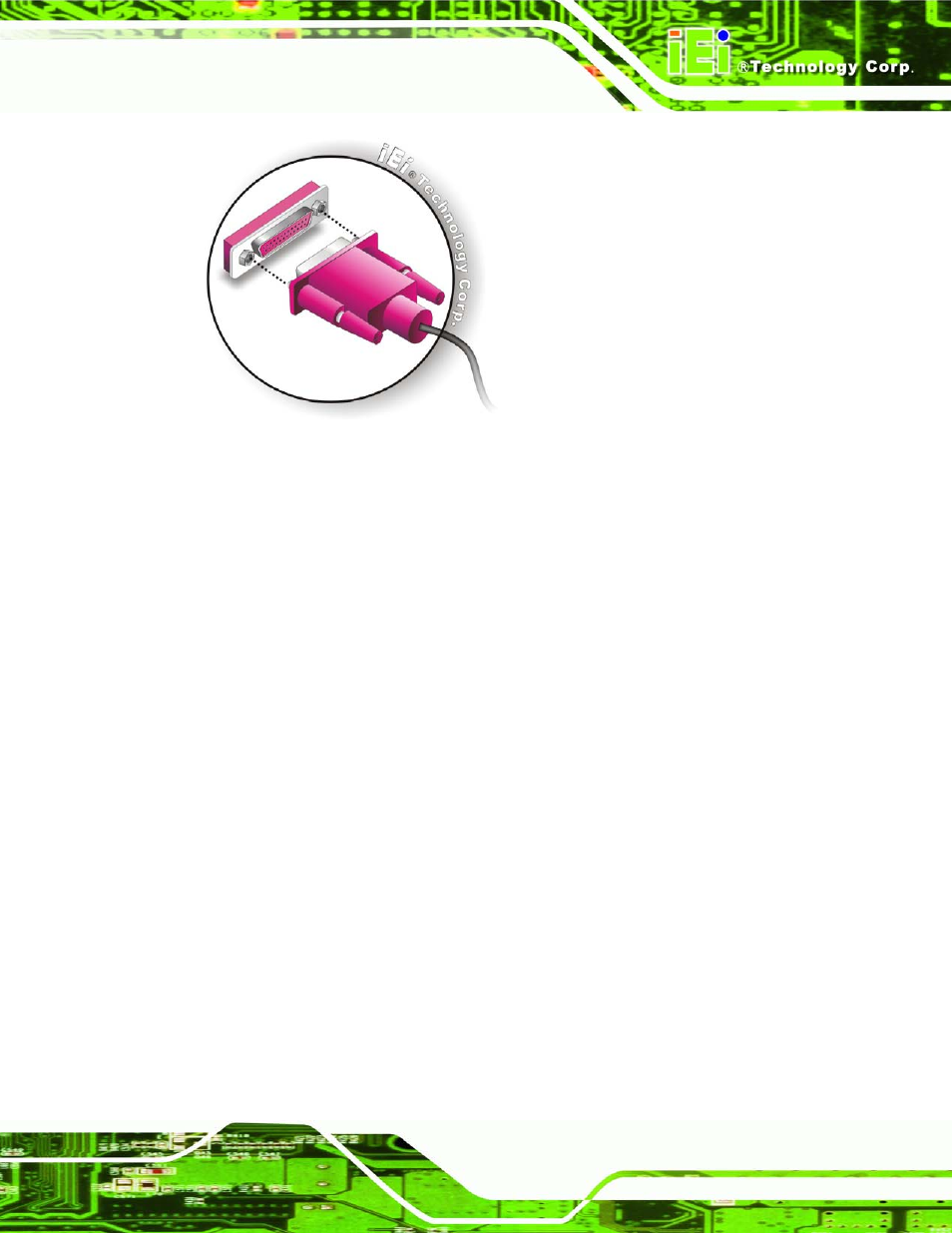

Figure 4-18: Connect the LPT Device

4.7.6 SATA Drive Connection

The SPCIE-5100DX is shipped with two SATA drive cables and one SATA drive power

cable. To connect the SATA drives to the connectors, please follow the steps below.

Step 1:

Locate the connectors. The locations of the SATA drive connectors are shown in

Chapter 3.

Step 2:

Insert the cable connector. Press the clip on the connector at the end of the

SATA cable and insert the cable connector into the on-board SATA drive

connector. See Figure 4-19.
