SPCIE-5100DX PICMG 1.3 CPU Card

Page 65

4.7.7 USB Cable (Dual Port)

The SPCIE-5100DX is shipped with a dual port USB 2.0 cable. To connect the USB cable

connector, please follow the steps below.

Step 1:

Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

Step 2:

Align the connectors. The cable has two connectors. Correctly align pin 1on

each cable connector with pin 1 on the SPCIE-5100DX USB connector.

Step 3:

Insert the cable connectors. Once the cable connectors are properly aligned

with the USB connectors on the SPCIE-5100DX, connect the cable connectors

to the on-board connectors. See Figure 4-21.

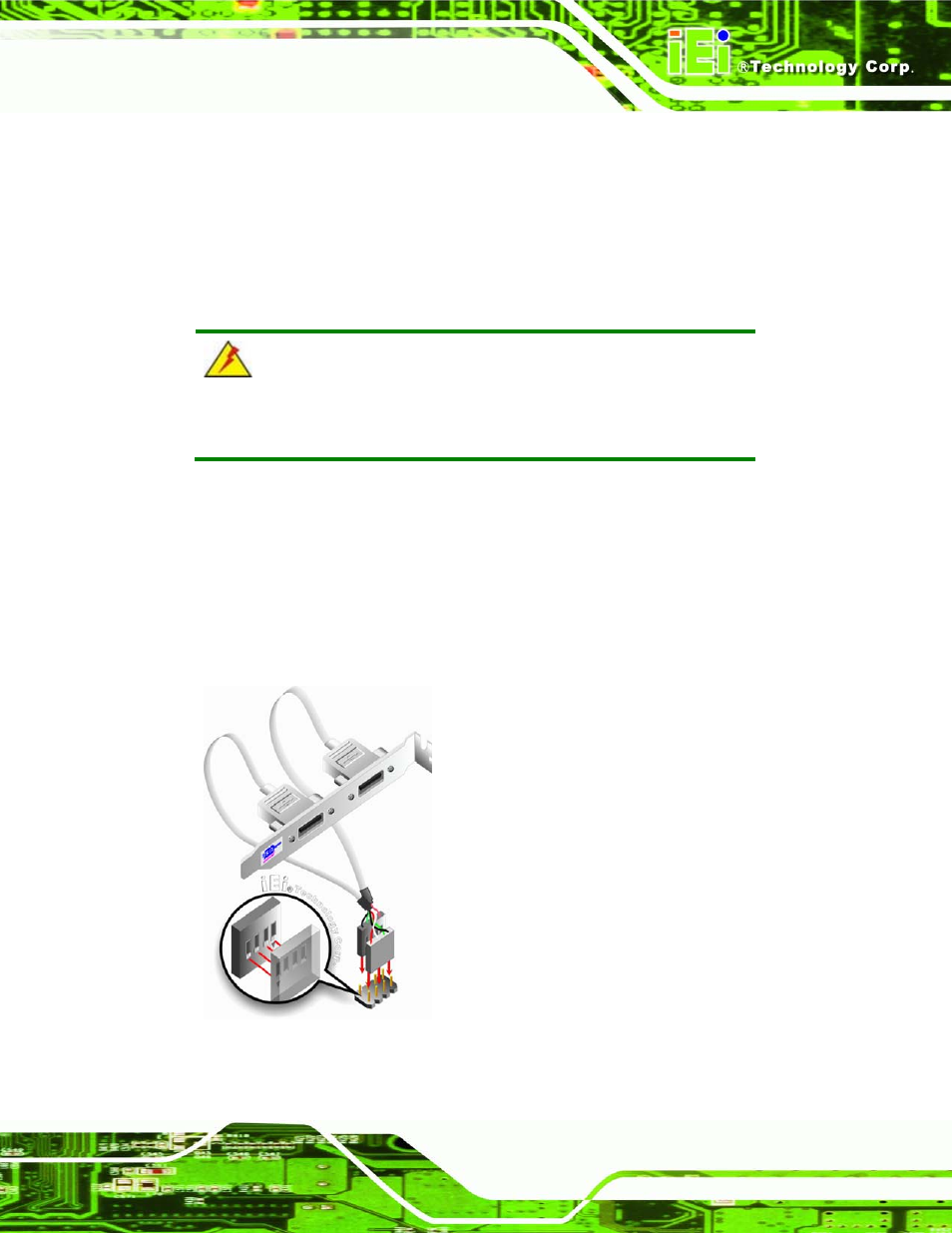

Figure 4-21: Dual USB Cable Connection

Step 4:

Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
