SPCIE-5100DX PICMG 1.3 CPU Card

Page 51

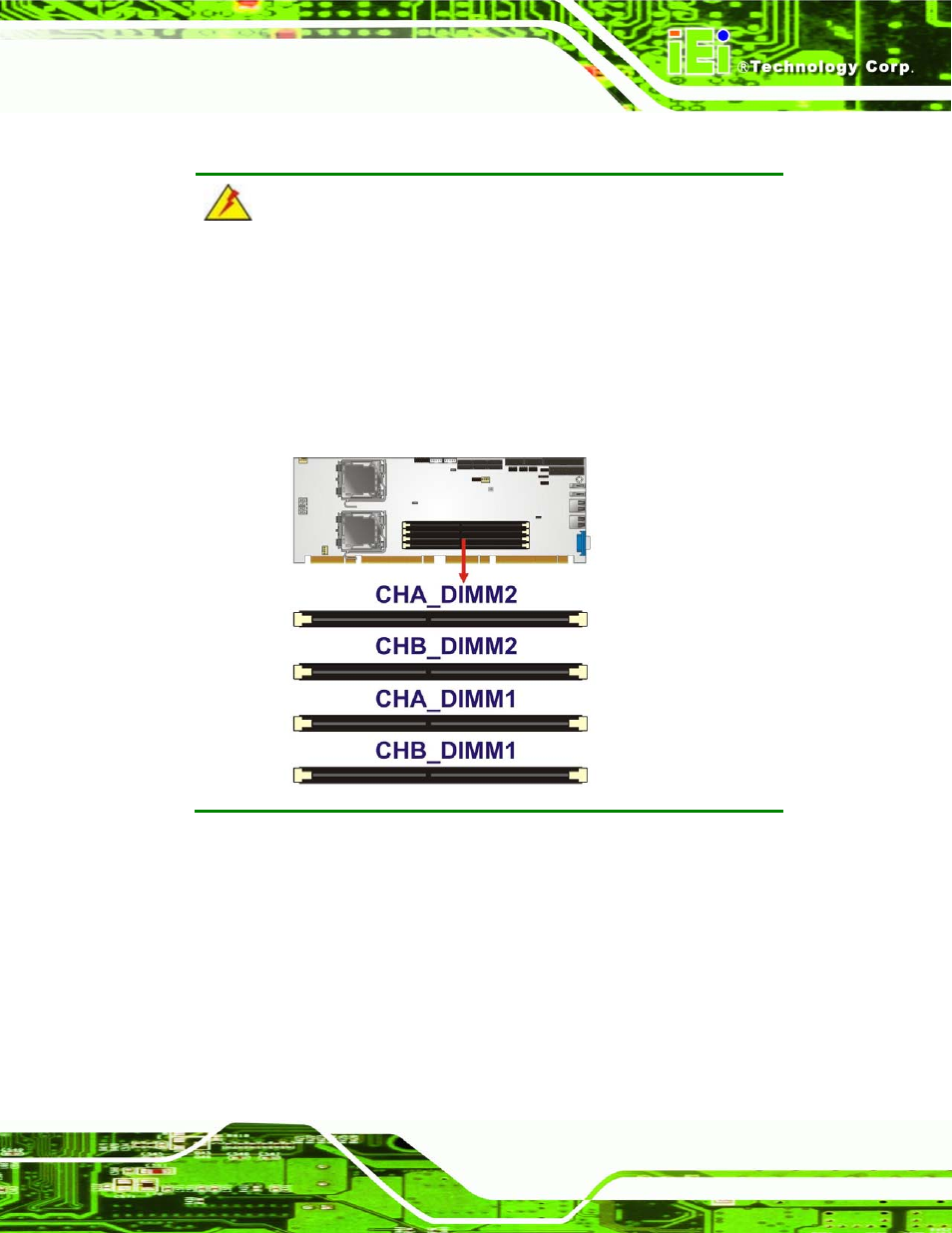

4.4.4 DIMM Installation

WARNING:

To be able to turn on the SPCIE-5100DX, either the CHA_DIMM1 or the

CHB_DIMM1 socket must install with an ECC Registered DDR2 DIMM. To

install a second DIMM, install in the socket that is at the same channel with

the first DIMM. For example, the first DIMM is installed in CHA_DIMM1

then the second DIMM should be installed in the CHA_DIMM2. The DIMM

socket locations are shown below.

To install a DIMM into a DIMM socket, please follow the steps below and refer to

Figure 4-10.
