SPCIE-5100DX PICMG 1.3 CPU Card

Page 33

3.2.13 Serial Port Connector (COM1, COM 2)

CN Label:

COM1 and COM2

CN Type:

10-pin box header (2x5)

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-15

The 10-pin serial port connector provides a RS-232 serial communications channel. The

serial port connector can be connected to external RS-232 serial port devices.

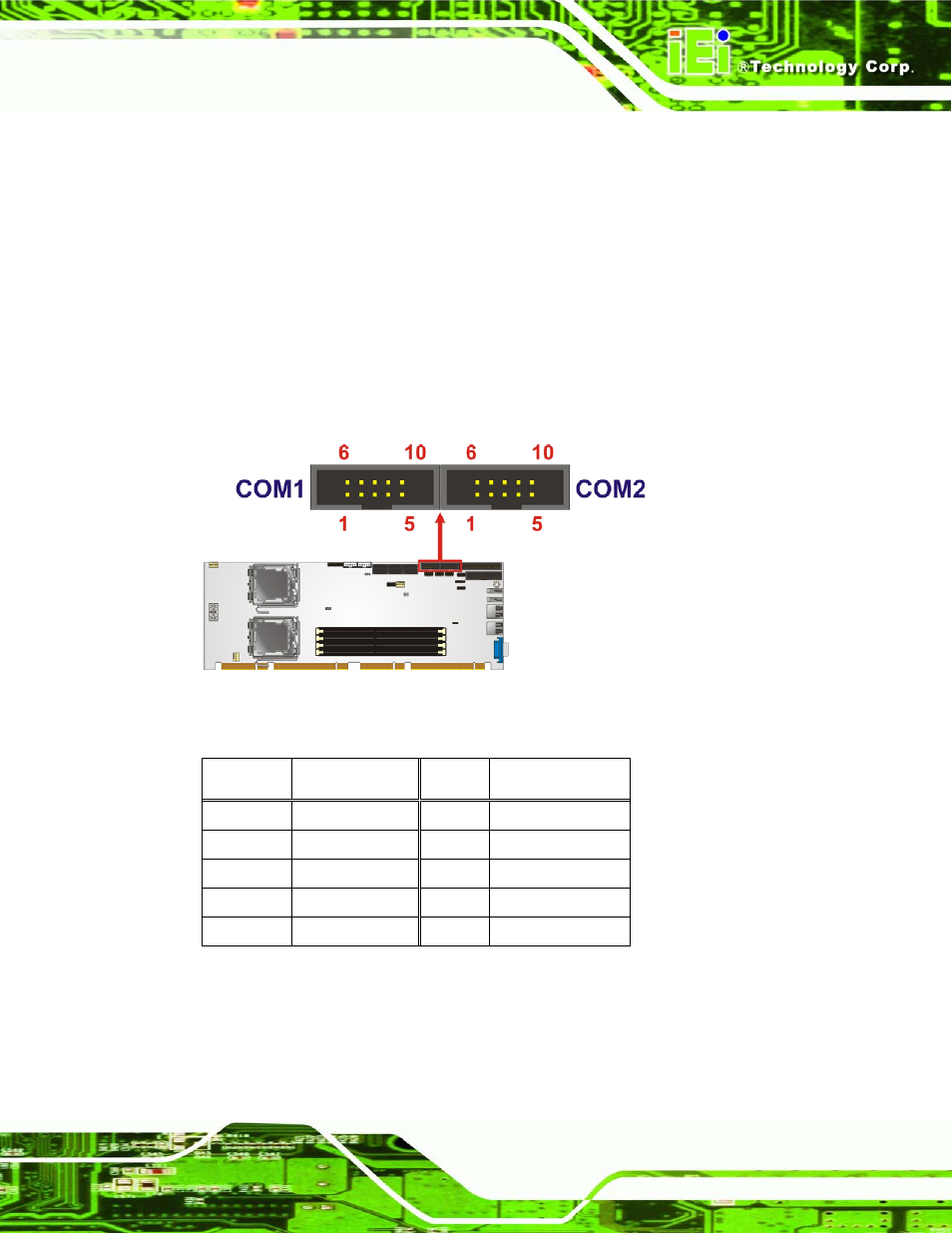

Figure 3-14: Serial Connector Pinout Locations

PIN NO.

DESCRIPTION

PIN NO. DESCRIPTION

1 DCD# 2

DSR#

3 RXD

4

RTS#

5 TXD

6

CTS#

7 DTR# 8

RI#

9 GND

10

NC

Table 3-15: Serial Connector Pinouts
