SPCIE-5100DX PICMG 1.3 CPU Card

Page 36

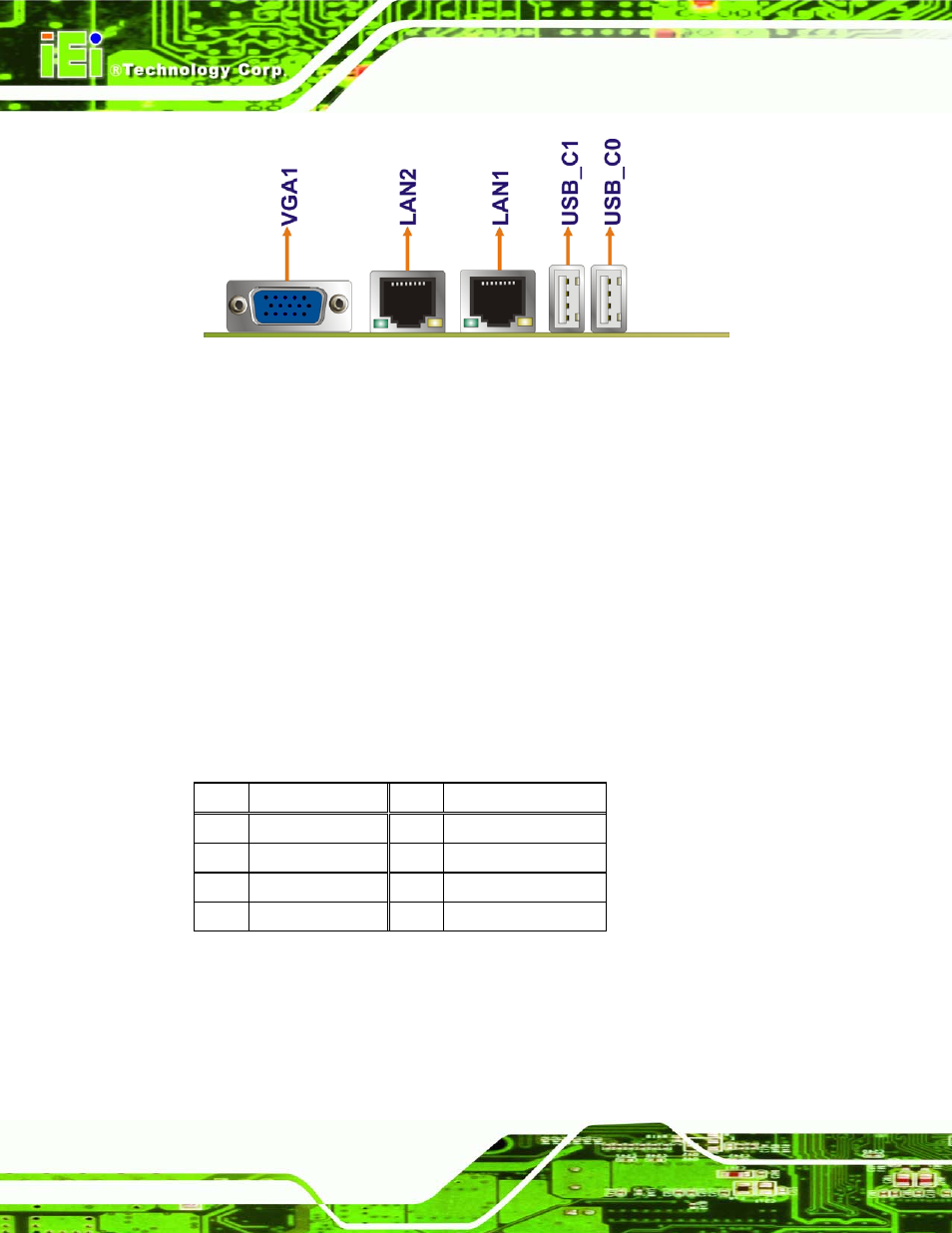

Figure 3-17: SPCIE-5100DX External Peripheral Interface Connector

3.3.1 LAN Connectors

CN Label:

LAN1 and LAN2

CN Type:

RJ-45

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-18

The SPCIE-5100DX is equipped with two built-in RJ-45 Ethernet controllers. The

controllers can connect to the LAN through two RJ-45 LAN connectors. There are two

LEDs on the connector indicating the status of LAN. The pin assignments are listed in the

following table:

PIN DESCRIPTION PIN

DESCRIPTION

1 MDIA3-

5 MDIA1+

2 MDIA3+

6 MDIA2+-

3. MDIA2-

7 MDIA0-

4. MDIA1-

8 MDIA0+

Table 3-18: LAN Pinouts
