SPCIE-5100DX PICMG 1.3 CPU Card

Page 144

Step 7:

The confirmation screen offers the option of restarting the computer now or later.

For the settings to take effect, the computer must be restarted. Click F

INISH

restart the computer.

Step 0:

7.7 Intel

Matrix Storage Manager Driver Installation

To install the Intel® Matrix Storage Manager driver, please follow the steps below:

Step 1:

Select SATA from the list in Figure 7-3.

Step 2:

A new window opens (Figure 7-22).

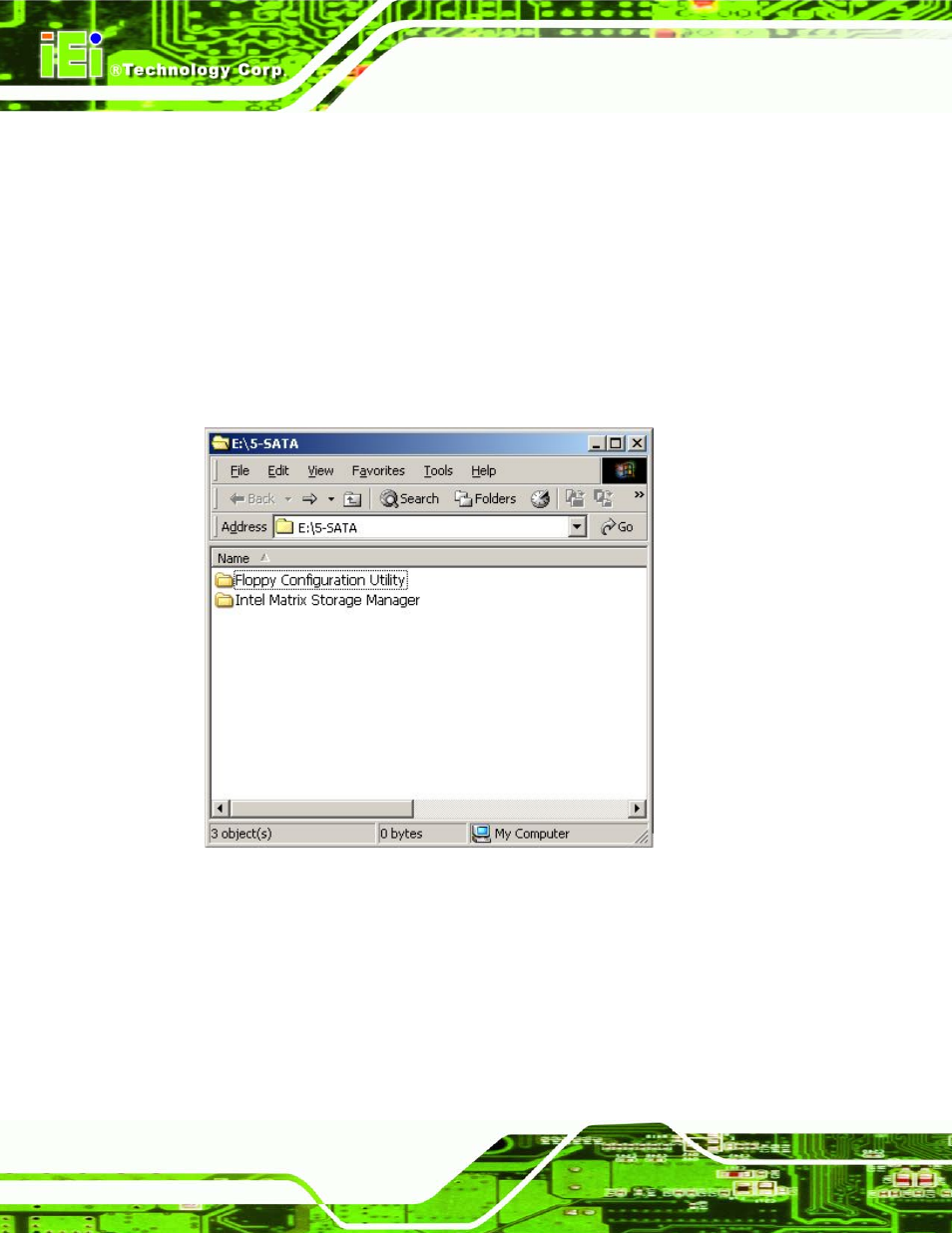

Figure 7-22: SATA RAID Driver Installation Program

Step 3:

Double-click the Intel Matrix Storage Manager folder.

Step 4:

Double-click the iata86cd.exe program icon.

Step 5:

Figure 7-23 shows the InstallShield Wizard preparing to guide the user

through the rest of the process.
