Scatter
Chart

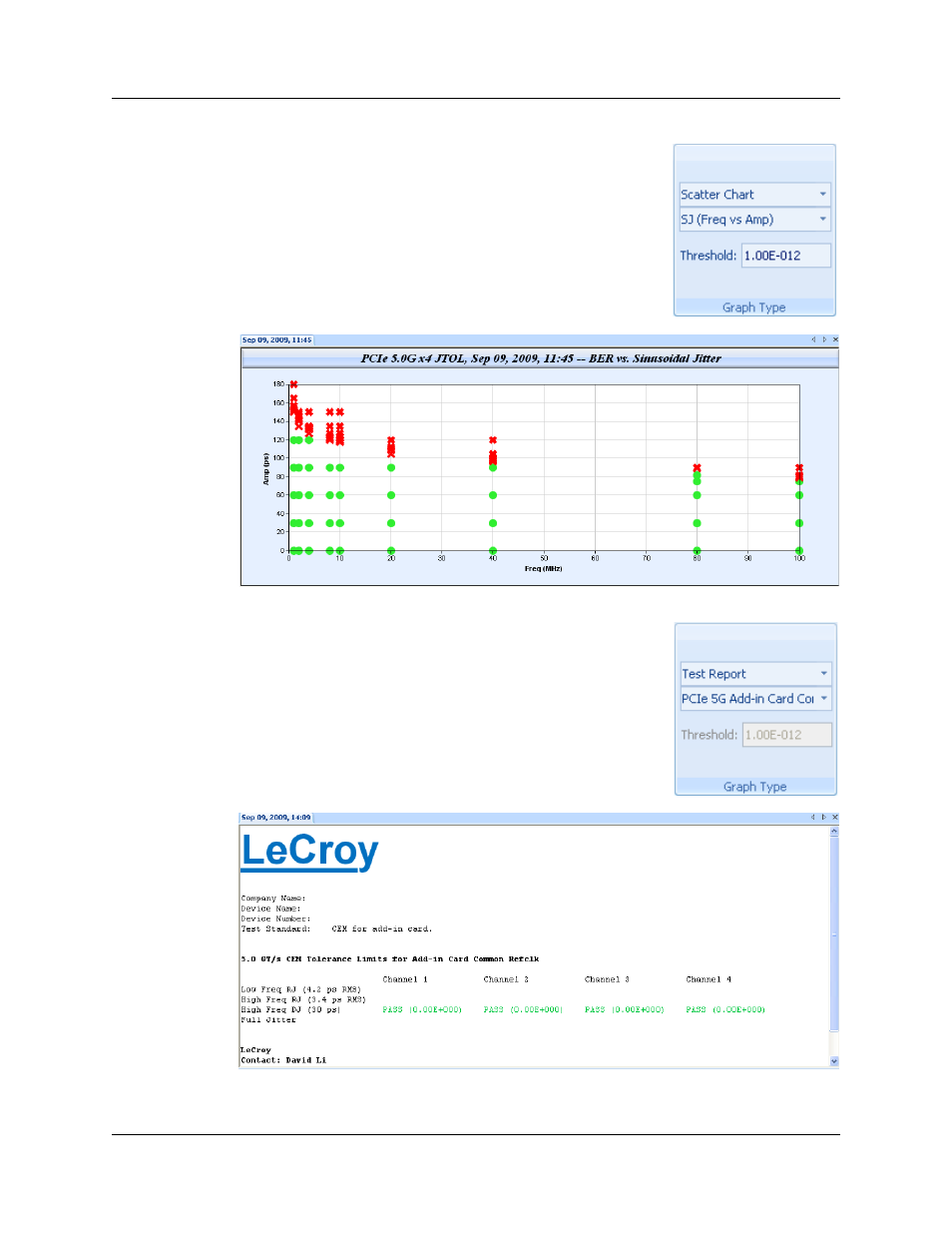

The Scatter Chart provides a means of displaying the results
of two different variables using the Threshold value as a
"Go/No-Go" gauge of performance. The second field in the
Graph Type panel can be used to select which two variables
form the axes of the chart, and the Threshold value changed
to display different settings. If more than two parameters are
varied, the nominal settings for other values can be selected
from the Data Set panel. Only one channel at a time can be
graphed, by clicking the channel number in the Data Set
panel.
Test Report The Test Report option allows the user to select from a series
of pre-defined test reports to provide automated results in the
form of a formal report. Select from one of the test reports
formats displayed in the drop-down menu of the second field.
