If custom steps are desired, click the Custom Steps box and type in the
values desired, in any sequence desired, separated by commas. For
example, you can type "100, 200, 500, 1000, 2000" which produces the
display as shown on the left. You can also type in non-sequential
values, such as "100, 1000, 200, 2000, 500" and the steps will be
executed as entered.
To delete a range, click on the small arrow to the right of the heading,
and unclick the Enable Range box, or simply change the setting by
moving the slider or clicking the + or - button and the range will be
removed.

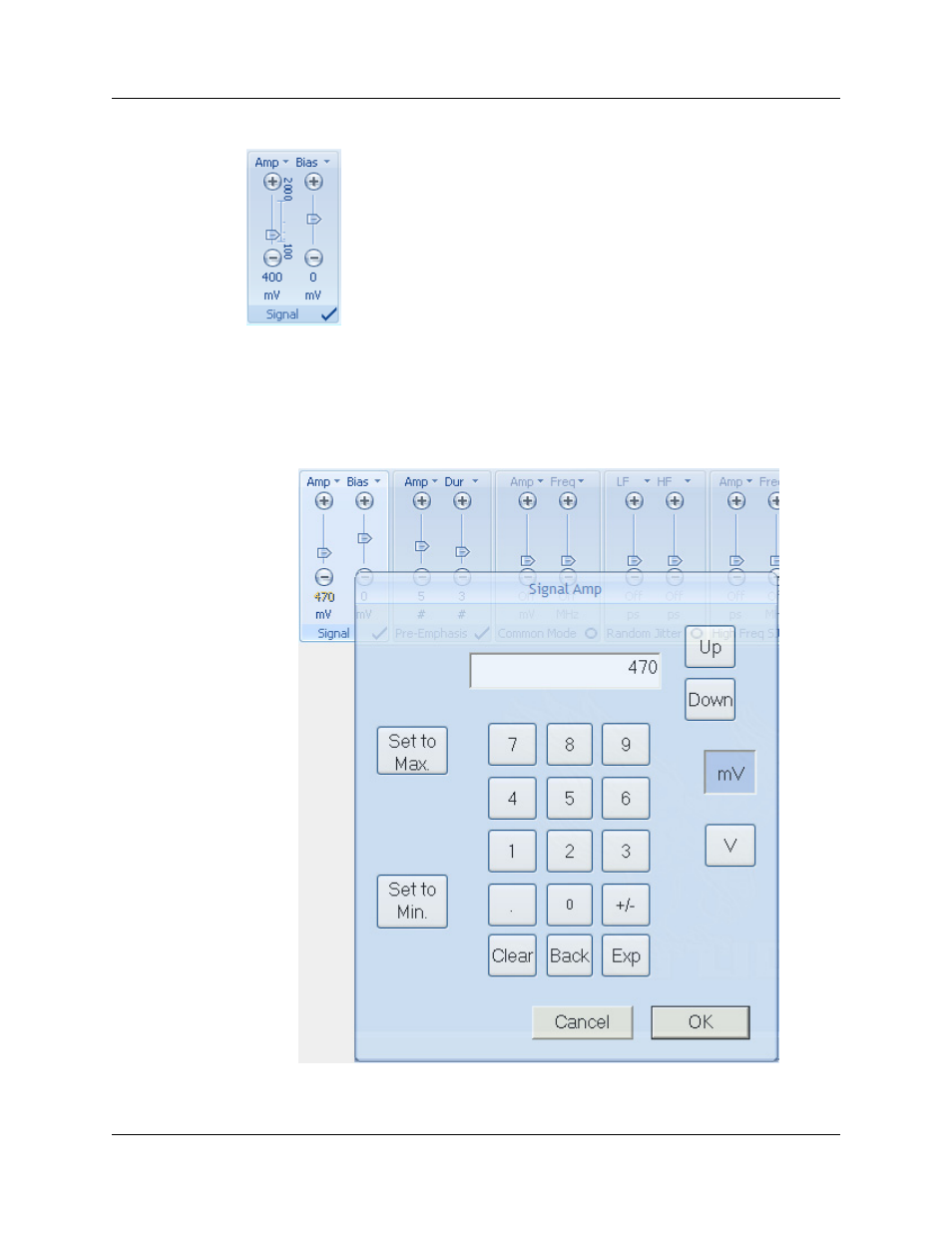

An aid to entering and changing values for signal impairment controls can be found by
turning on the On-screen Keypad. The On-screen Keypad can be turned on from the
View panel of the Options tab. When turned on, if the numeric value below the slider
bar in any control is clicked, the value will be highlighted and the On-screen Keypad will
appear as shown below.
