PeRT 3 Eagle User Manual Version 1.6
LeCroy Corporation
51

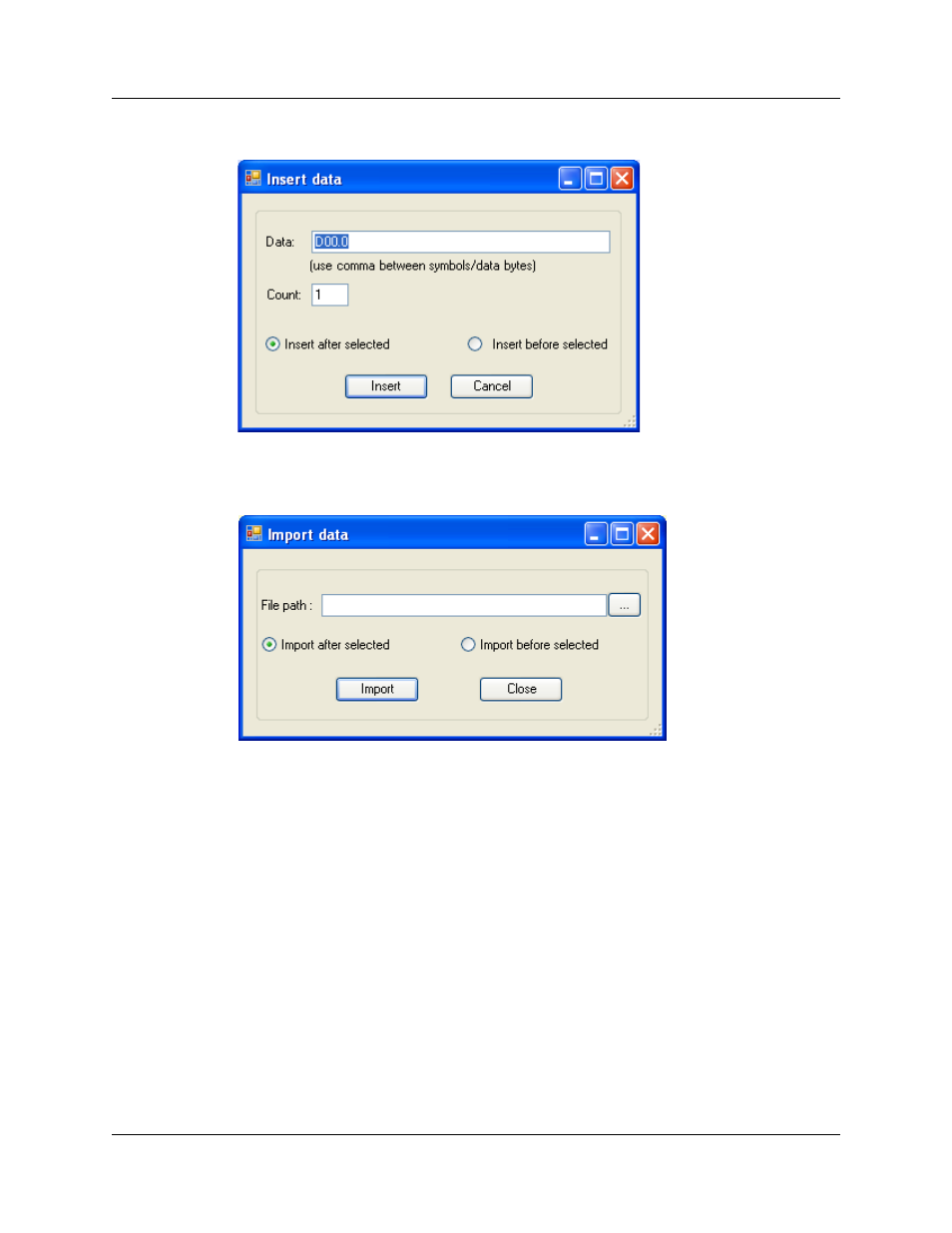

Clicking the Insert Data icon brings up the following window:
This window allows the user to enter a repeated value into the data, with the choice of
entering the data either before or after any symbol shown in the data stream.
Clicking the Import Data icon brings up the following window:
By clicking on the "..." button, the user can navigate the file system to locate the data file
to be imported, and then click the Import button to import the data.
Note that if data is entered outside of a frame, the frame remains intact and the data is
simply inserted into the stream between frames. If data is entered inside a frame, the
frame structure may be corrupted. This is often indicated to the user by highlighting the
CDB (H) field in red with the message "Frame data is incomplete."
Modifying
Data Within
a Pattern
The data pattern can be modified directly by double-clicking on the data cell in the top
containing that value, then typing in the new value. If in Waveform, Binary (10), KD or
10bit (3FF) mode, the new value can be entered directly into the cell. If in SC or US
mode, the user can type the new K-code or D-code values directly into the cell, or use
the drop-down menu to get a list of valid values.
Again, if the data is located within a frame, modifications may render the CRC invalid or
may corrupt the frame. This will be indicated by the frame summary in the bottom half of
the window.
