57

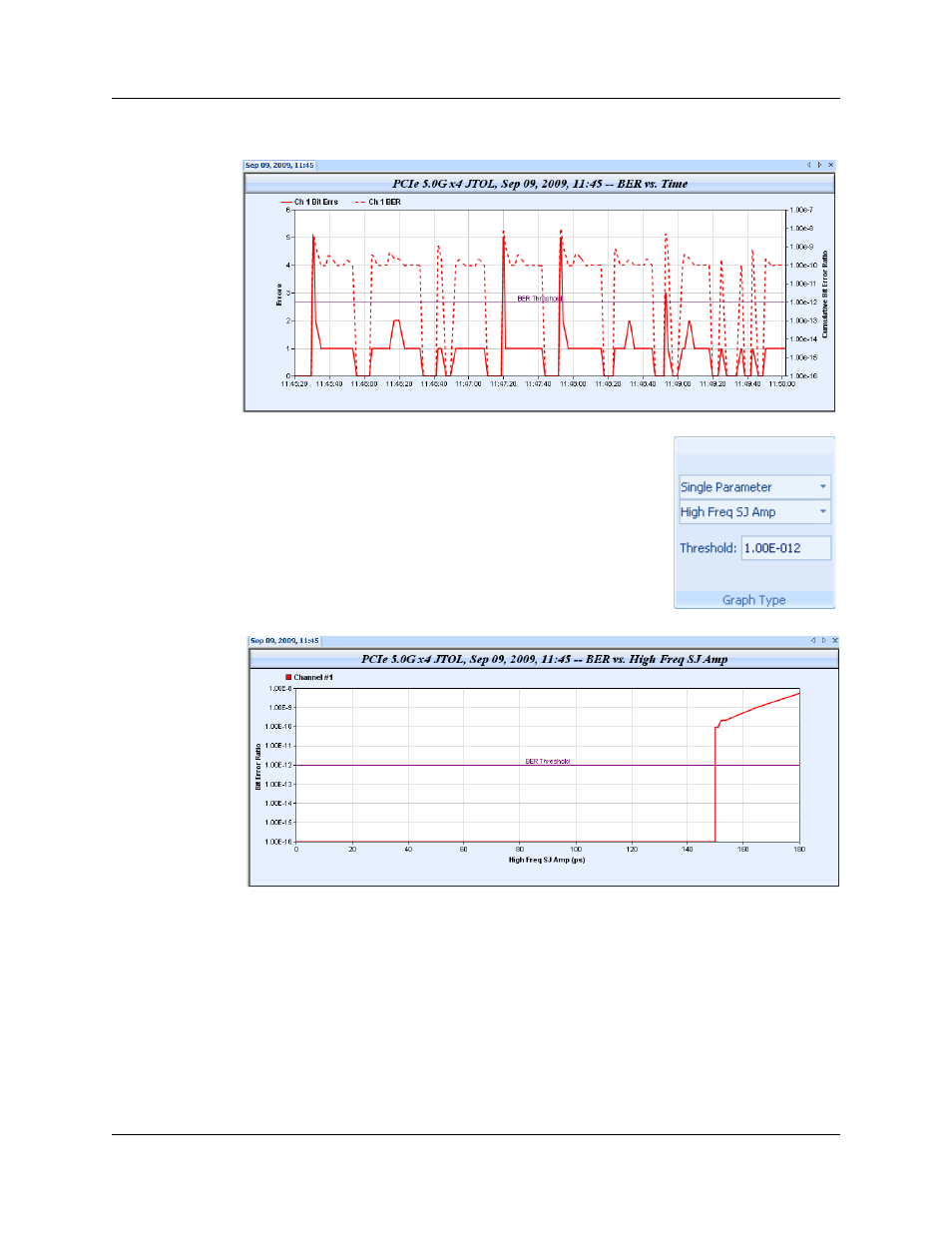

Single
Parameter
This allows a graph of a single jitter or signal parameter
variable (selected from a test matrix) vs. BER. Selecting this
option allows the user to specify the parameter to be used (the
second field in the panel), and populates the Data Set boxes
to show other parameters tested, allowing the user to specify
fixed values of other parameters to select the specific data set
of interest. The BER threshold displayed can be changed by
typing a new value into the Threshold field. Additional
channels can be displayed by clicking the channel number(s)
in the Data Set panel.
