Version 1.6 PeRT 3 Eagle User Manual
40
LeCroy Corporation
(see the icon circled in red at the right). This will minimize the two windows (the Main
Library window will flatten to the left side of the main application window, and the Output
window will flatten to the bottom of the main application window).

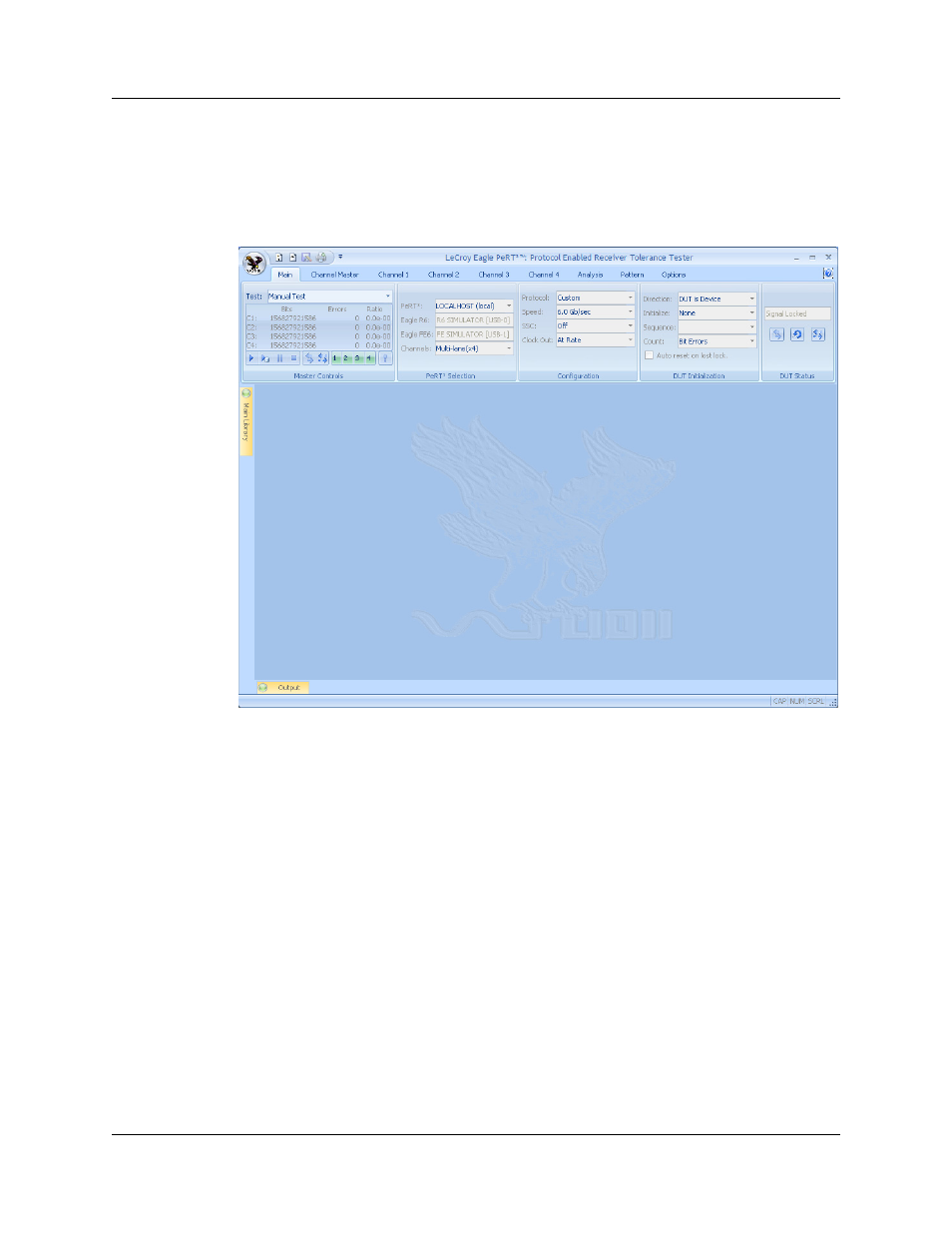

The resulting main application window display will appears as shown below, allowing
more space for test script and pattern editing:
The minimized windows can be temporarily viewed by hovering the cursor over the green
button next to the window name, and the window will disappear again when the cursor is
moved off the window. To restore the window to normal size, hover the mouse over the
green button to make the window appear, and then click the pin icon again.
Starting a New Test Script
Start a new test script by hovering the mouse over the green button of the Main Library
window until it appears, make sure the Test Scripts tab is selected, and clicking the New
icon at the top of the window.
