Notifications
The Notifications panel allows the user to request notification when an
invalid 10b data pattern is part of the current pattern. This is a form of
automatic error checking when the user is entering encoded data at the
10b level.
Once there is some initial data in the pattern, some of these commands can also be
accessed by right-clicking the mouse while hovering over a data cell in the data pattern.
Adding
Frames to
Patterns

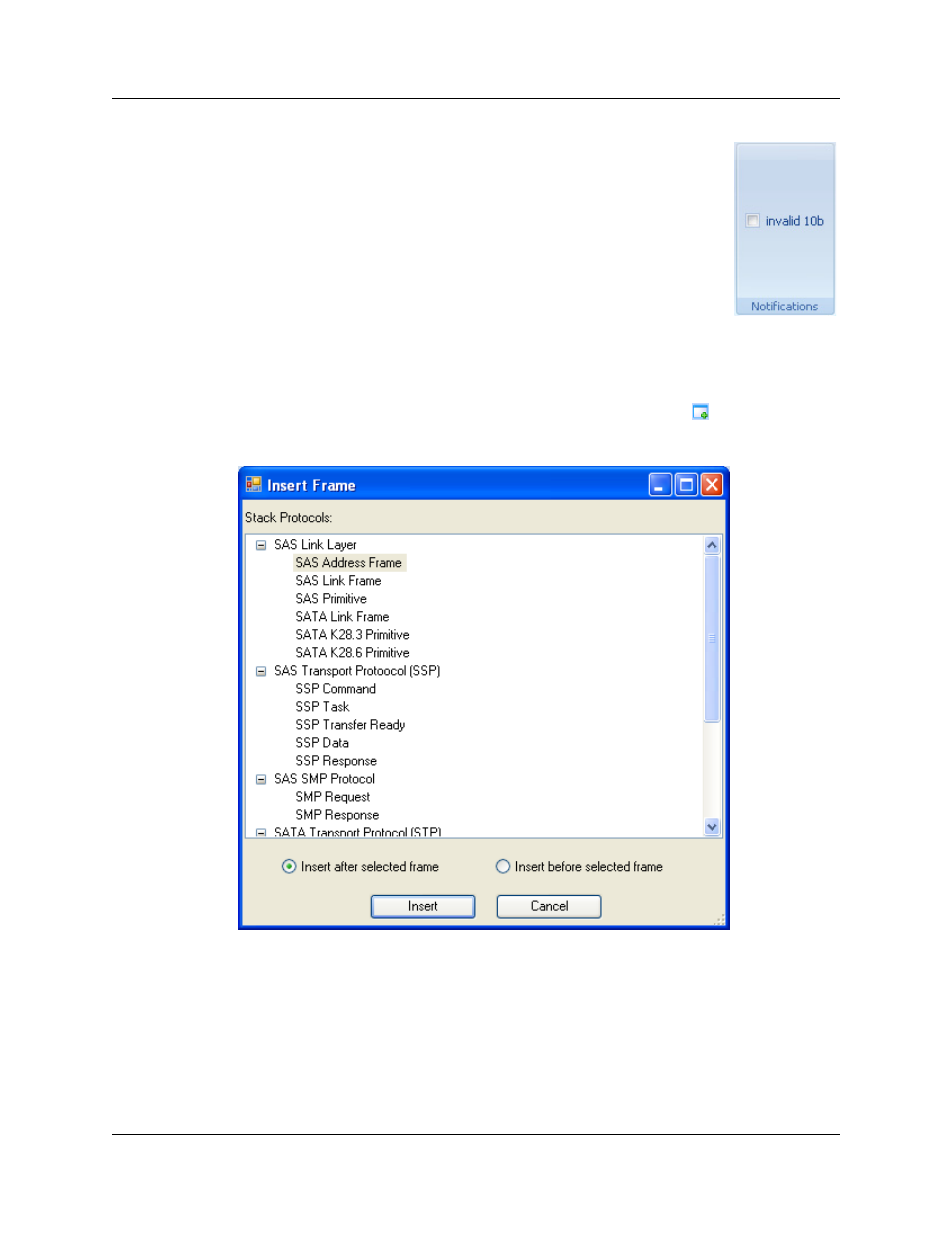

Frames can be added to the pattern by clicking the Insert Frame icon. When this
icon is clicked, a library of available frames that are pre-defined for the selected protocol
appears:
