PeRT 3 Eagle User Manual Version 1.6
LeCroy Corporation
41

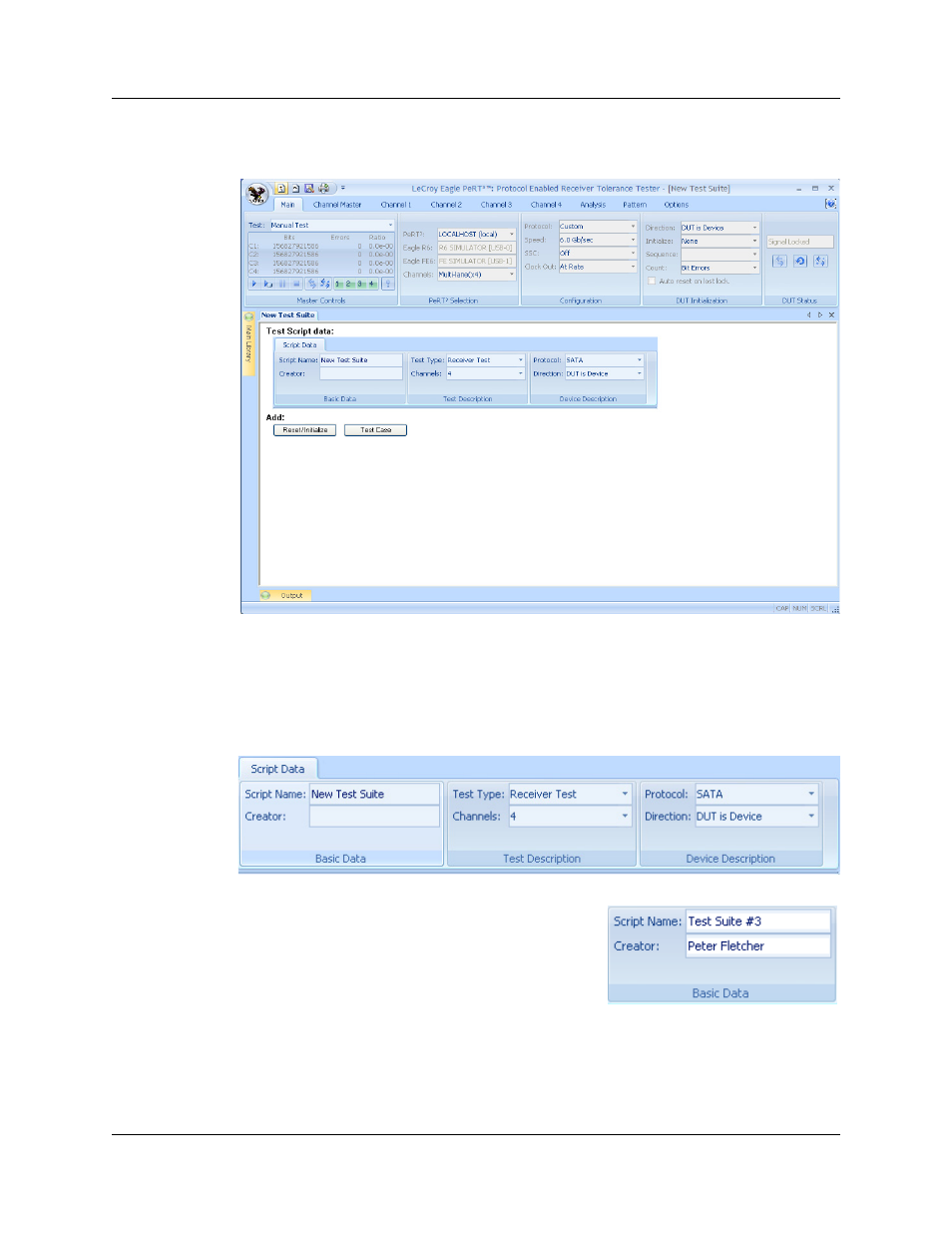

These actions produce a main application window which looks as follows, providing more
visible space for test script development:
Test Script Data Block
The first block that appears in the new test script window is the header block, named Test
Script Data. This block contains the Script Data tab, which contains three panels, Basic
Data, Test Description and Device Description.
Basic Data
The Basic Data panel allows the user to name the
test script and identify the creator of the script by
entering this information into the Script Name and
Creator fields. The Script Name will be the name
listed in the Main Library window, under the Test
Scripts tab, whenever that window is displayed.
