Version 1.6 PeRT 3 Eagle User Manual
58
LeCroy Corporation

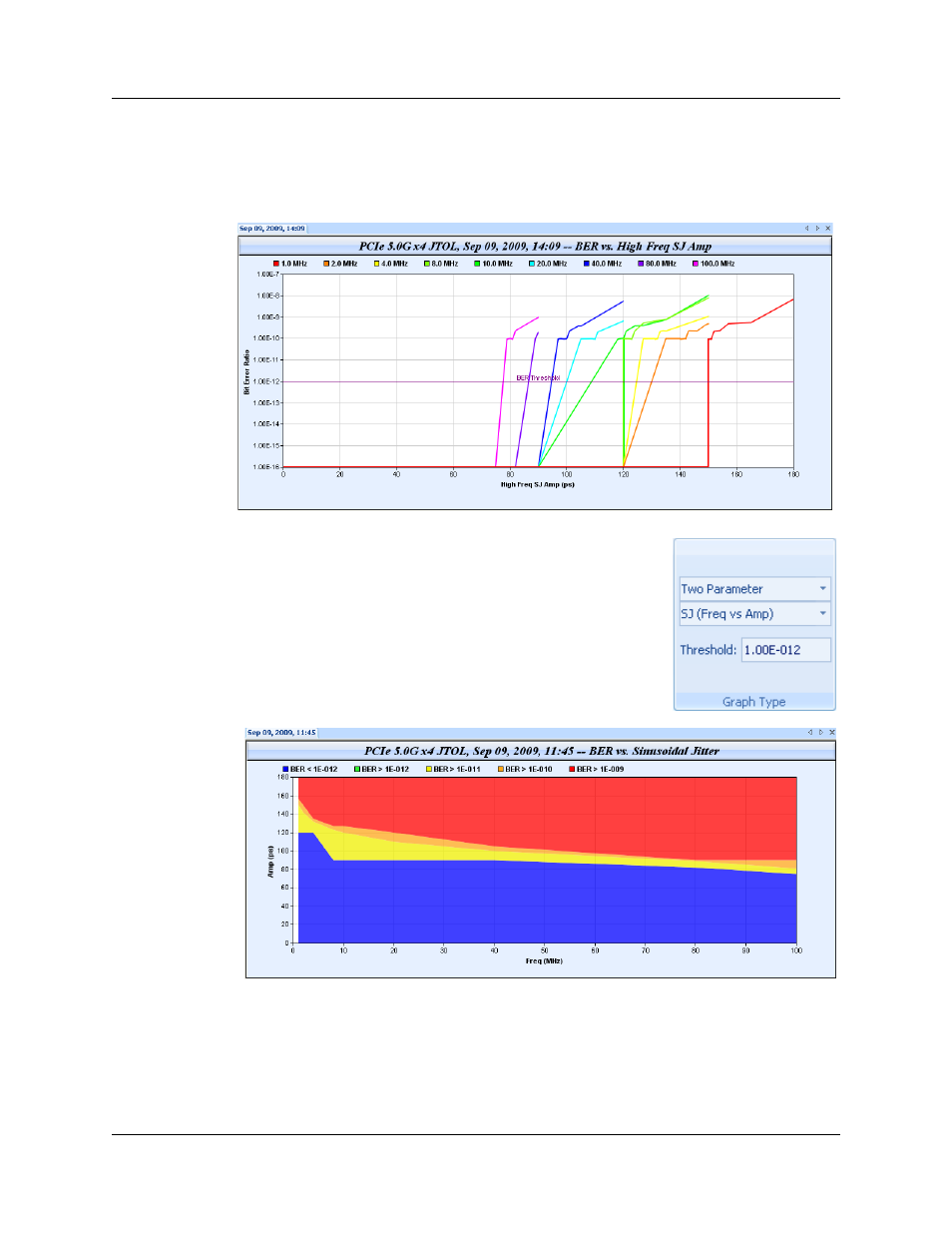

Multi Single
Parameter
This graph allows the display of multiple values of any single parameter. For example, in
the graph shown above (Single Parameter) only one value (1.0 MHz) of the available
values for high frequency SJ amplitude. The Multi Single Parameter graph below shows
all available values.
Two
Parameter
The Two Parameter graph shows a matrix of two parameters
with BER shown as a series of colors scaled to the threshold
BER value entered in the Threshold field. The user can select
which two parameters to use for the graph in the drop-down
menu in the second field, and also select nominal values for
other parameters in the Data Set panel. Only one channel at
a time may be graphed, selected by clicking on the channel
number in the Data Set panel.
