Version 1.6 PeRT 3 Eagle User Manual
46
LeCroy Corporation

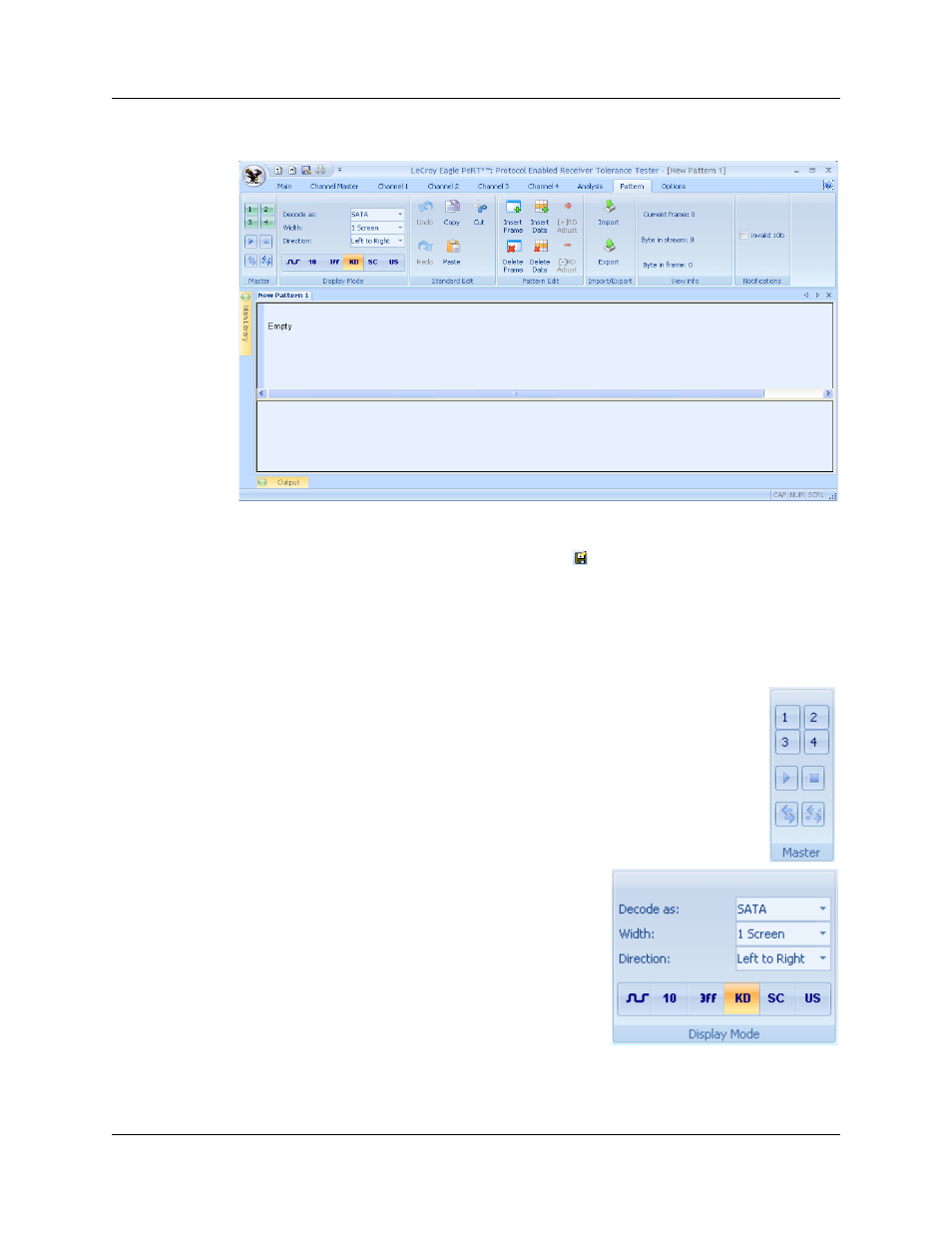

The default name for the new pattern is "New Pattern". This name can be changed by
selecting the new pattern in the Main Library (it will be at the bottom of the list) and
clicking on the Rename the Selected Item icon
in the Main Library window toolbar.
Pattern
Editor Tab
Controls
The Pattern tab contains seven panels, which allow the user to create new patterns and
edit existing patterns. These panels are Master, Display Mode, Standard Edit, Pattern
Edit, Import/Export, View Info and Notifications. Each of these panels is described
below.
Master
The Master panel provides controls to start and stop a test, and to connect
and disconnect to the DUT. The four numbered indicators light to show
which channel(s) are being tested.
Display Mode
The Display Mode panel allows the user to specify
the protocol to be used when decoding frames, the
width of the data display, the direction for data
display, and the format for the pattern data. There
are six different formats that can be used for
displaying the pattern data. From left to right in the
selection bar, these formats are:
