PeRT 3 Eagle User Manual Version 1.6
LeCroy Corporation
7
The PeRT
3

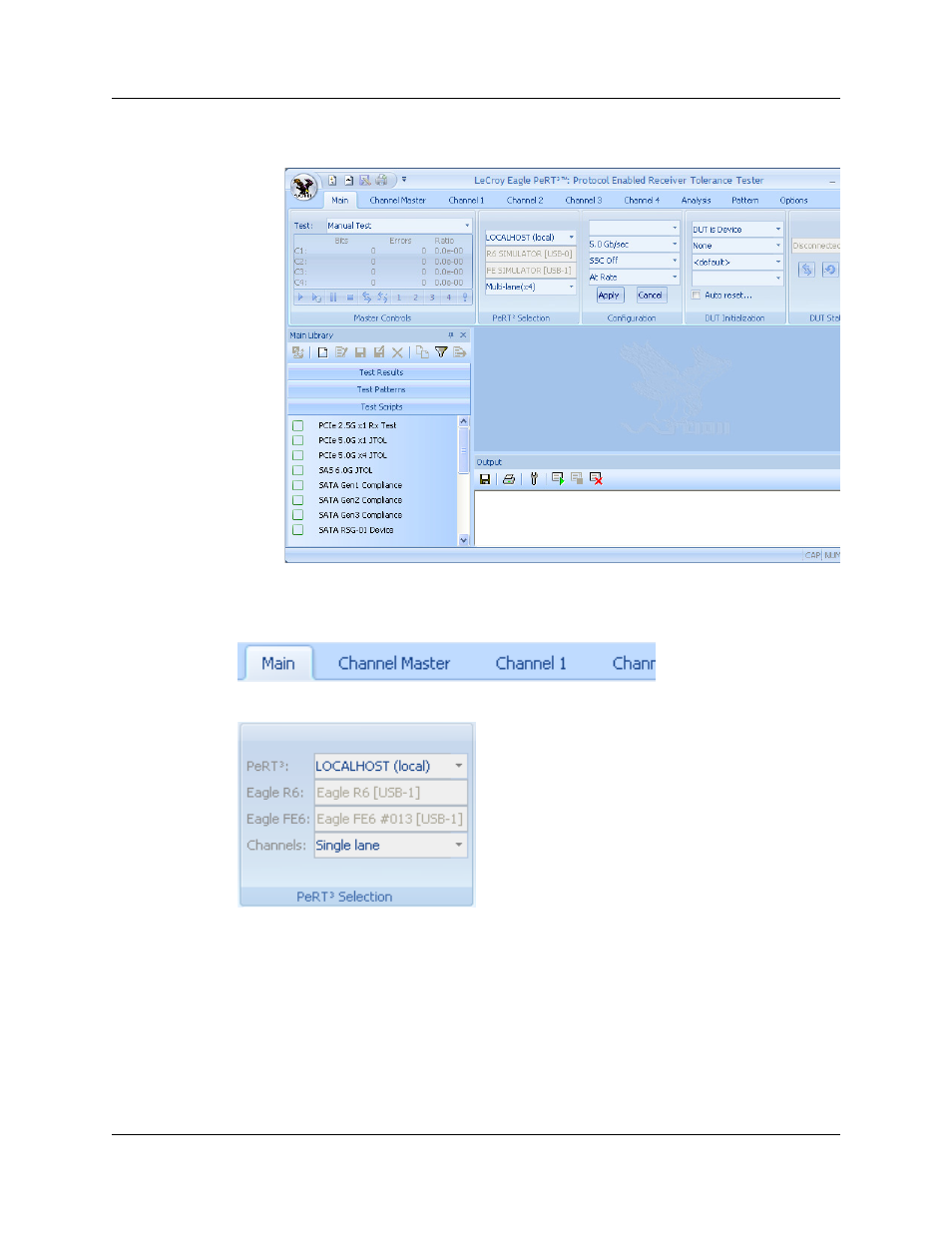

main application window will appear, as follows:
If the top part of the window does not appear similar to the illustration above, make sure
that the Main tab is selected along the top of the window. If this tab is not selected, click
on the tab to select it.
With the Main tab selected, the PeRT3 Selection panel will be displayed, as follows:
