Teledyne LeCroy PeRT3 Eagle Systems - Manual (Page 24)

Version 1.6 PeRT 3 Eagle User Manual
20
LeCroy Corporation

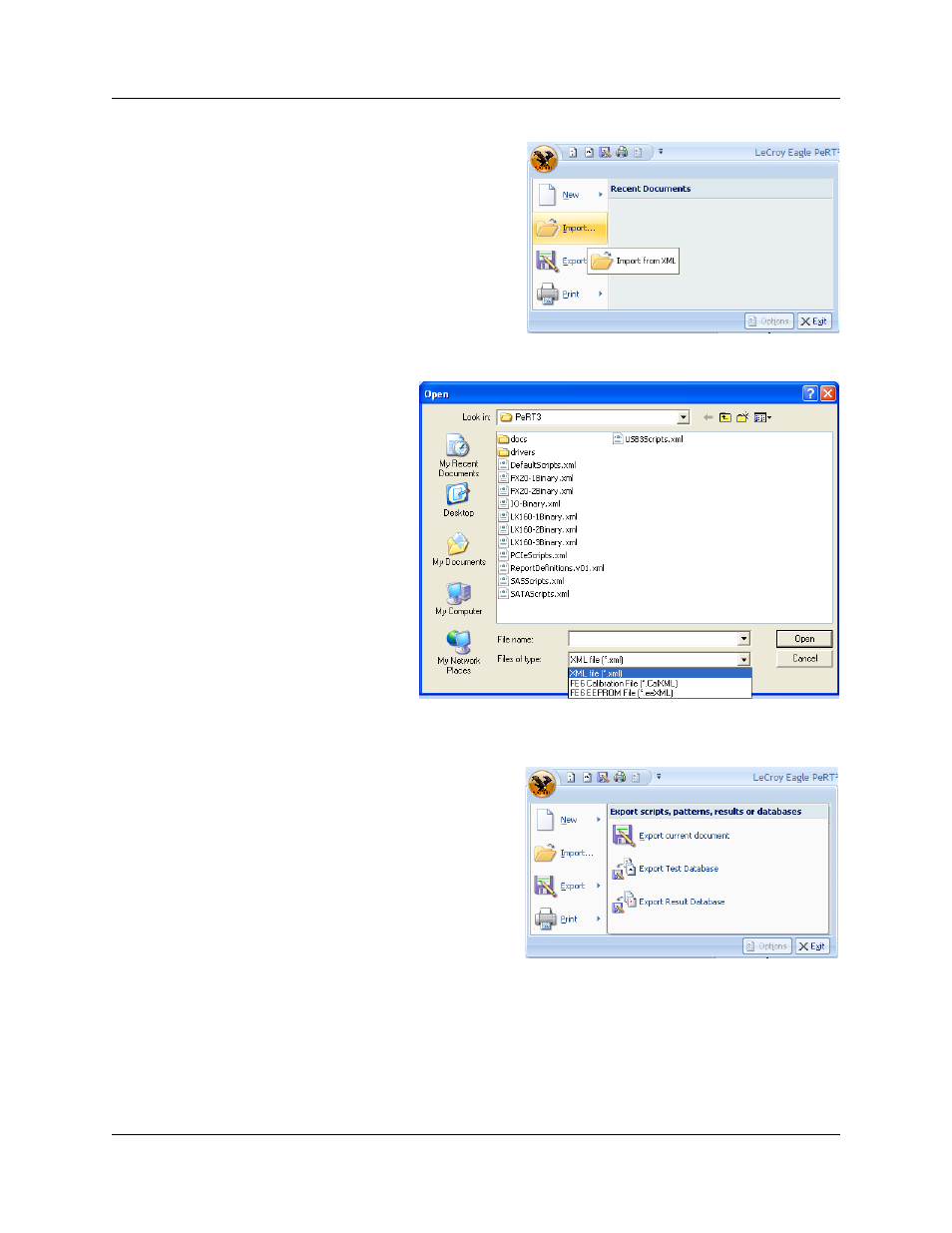

Import... Hovering the cursor over the Import
icon will display a tool tip as shown on
the right. Clicking the icon will bring up
a new window which allows the user to
select the file to be imported (see
below).
All files to be imported must be XML
files, and can include scripts, patterns,
test reports that have been exported
from other PeRT
3
systems. Imported
files can also include license updates,
updated binaries, software updates, etc.
In addition, by modifying
the Files of Type
selection in the bottom
field of the window, the
user may select
calibration files or new
firmware files (also
formatted as XML files,
and designated with the
file extensions .CalXML
and .eeXML
respectively).
Files that are imported
are placed into the
appropriate library or
location on the local
server, or, if appropriate,
downloaded to the
hardware.
Export... The Export command is used to export
files to be transferred to other PeRT
3
systems. This can include test scripts,
patterns and test results. By hovering
the cursve over the Export icon the
following options appear. The user can
select to Export current document
(script, pattern or test result), Export
current database or Export result
database. All files are exported as
XML files.
