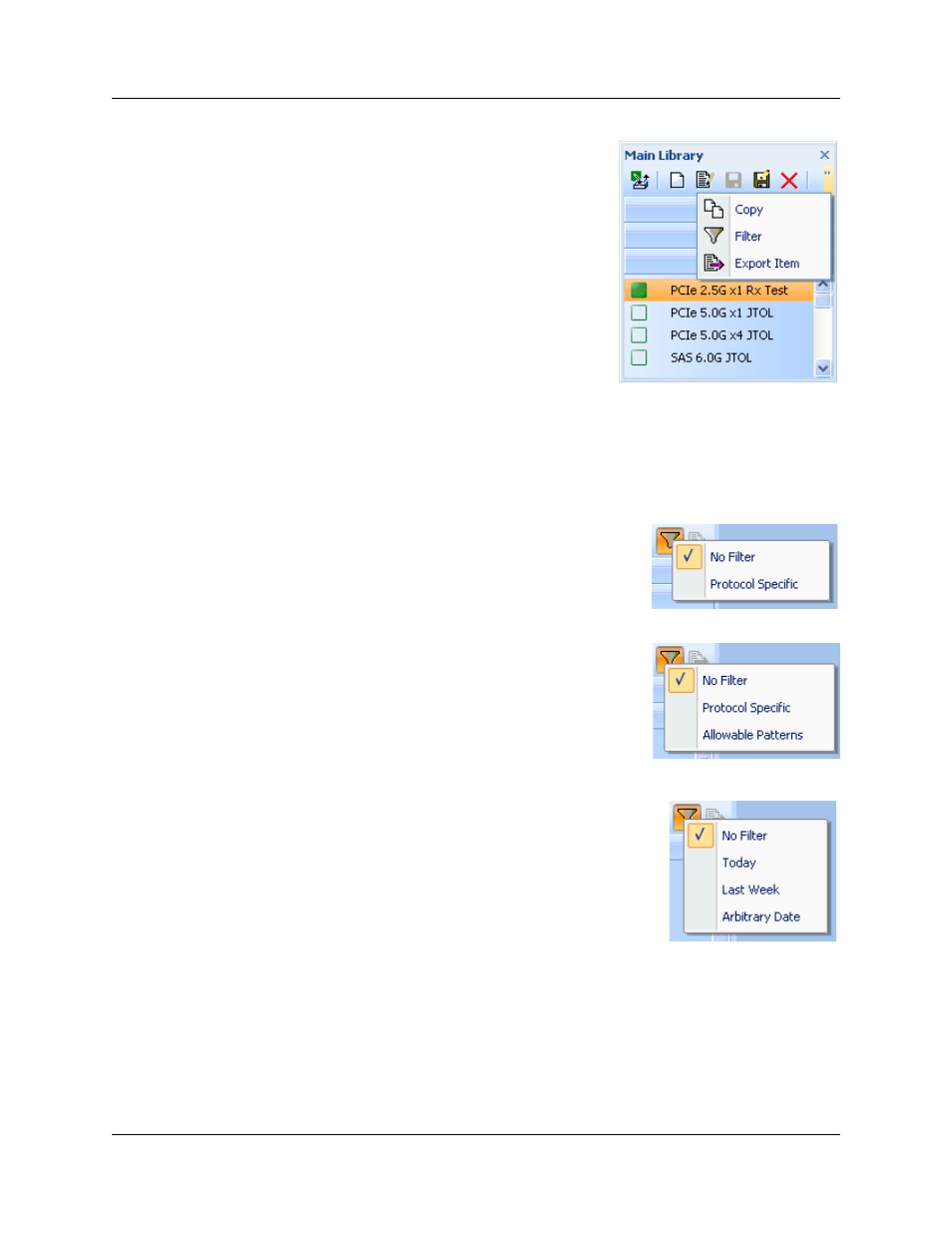

Note that if the Main Library window is too narrow to
display all available buttons, a small double arrow will
appear on the right side of the list of buttons. Clicking
this double arrow will provide a drop-down list of the
remaining buttons, as shown on the right.

By selecting the appropriate tab (Test Scripts or Test
Patterns) and then clicking the Create a New Item
icon, new test scripts and test patterns can be
generated as described in the following chapters.

By double-clicking on the name of a test script or test
pattern, the user can view the script or pattern details
and can modify the script or pattern. By
double-clicking on a test result, the user can display
test results in the analysis window as a graph or table (see Chapter 9: Analysis and
Reports). Test results can not be modified.

The Filter Function

The Filter button can be used to control what is displayed in the various tabs (Test
Scripts, Test Patterns, Test Results) of the Main Library window.

For Test Scripts, the user can select either No Filter or
Protocol Specific filter. Selecting Protocol Specific
limits the items displayed in the Test Scripts section to
scripts written for the current protocol. (The current
protocol is the protocol selected in the Configuration
panel of the Main tab.)

For Test Patterns, the user can select No Filter, Protocol
Specific, or Allowable Patterns. If Protocol Specific is
selected, patterns that have been written for the selected
protocol are displayed. If Allowable Patterns is selected,
patterns that are permitted under the current protocol are
displayed. This may include some generic patterns but will
exclude patterns that were written for the current protocol
but are not valid under that protocol.

For Test Results, the user can select No Filter, Today, Last
Week, or Arbitrary Date. If Today is selected, only test
results obtained in the last 24 hours are displayed. If Last
Week is selected, only test results obtained in the last seven
days are displayed. If Arbitrary Date is selected, a window
will appear to allow the user to select a range of dates.
