LabMaster 10 Zi Oscilloscopes
64
922561-00 Rev A
Z
OOMING
S
EGMENTS IN
S
EQUENCE
M
ODE

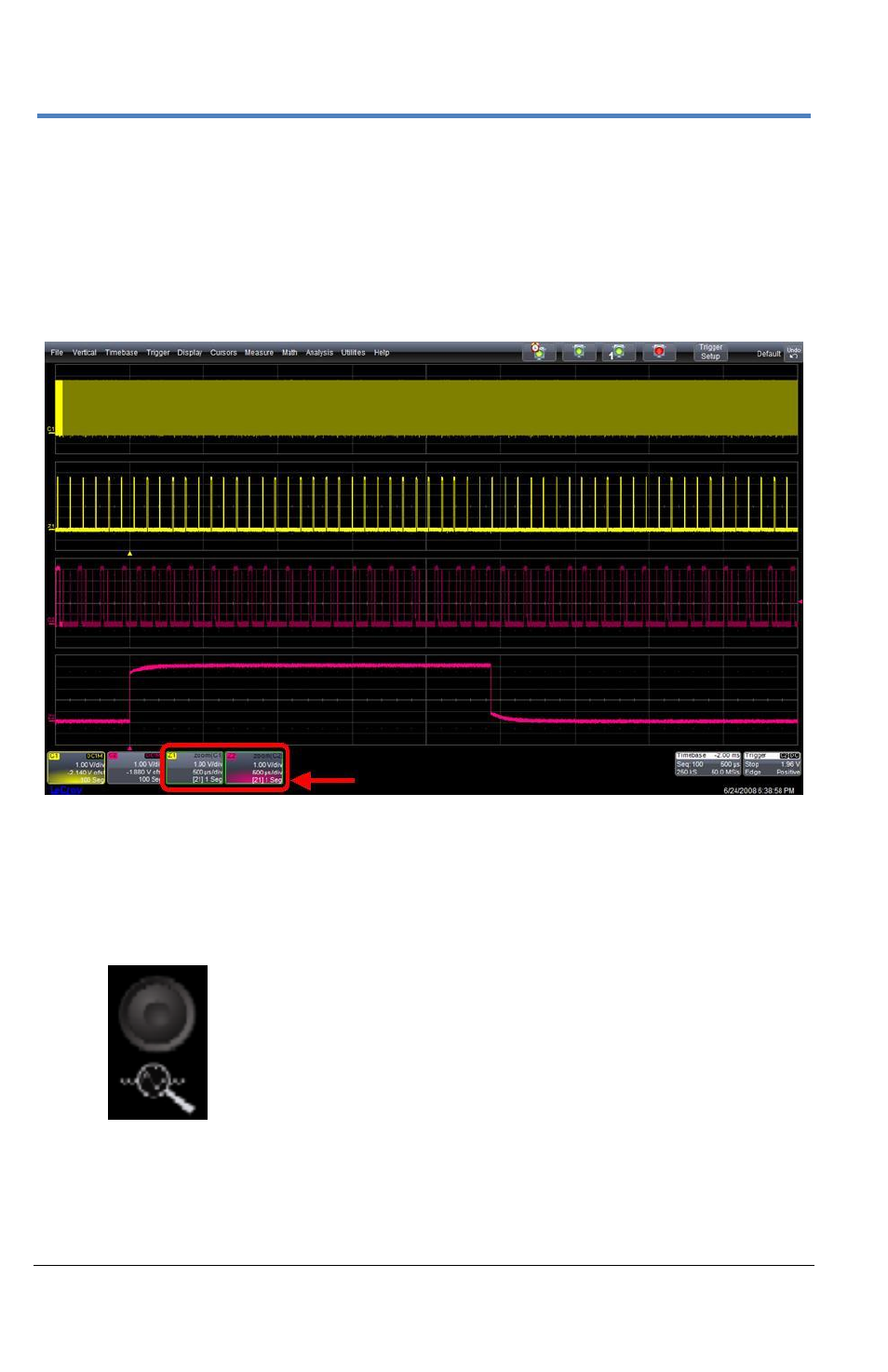

You can zoom individual segments easily using the Zoom front panel button.
When you zoom, the zoom traces default to Segment 1. Channel descriptors
indicate the total number of segments acquired. Zoom descriptors indicate
[Seg #] and #Segments in the Zoom. You can scroll through the segments
usingZoom front panel position knob.
Sample Zoom of Segments in Sequence Mode
1. Touch the front panel Zoom button.
2. Turn the Z
OOM front panel position knob to scroll through the
segments.
3. To vary the degree of zoom, touch the newly created Zx trace label.
The setup dialog for the zoom (Z1 to Z4) opens. It shows the current
horizontal and vertical zoom factors.
