Getting Started Manual

922561-00 Rev A

Choose TimeBase → Horizontal Setup... to access the Timebase

dialog.

If you have more than one Acquisition module, touch the DBI tab to
show the DBI dialog. Otherwise, use the Digital Bandwidth Interleave
area to the far right of the Timebase dialog.

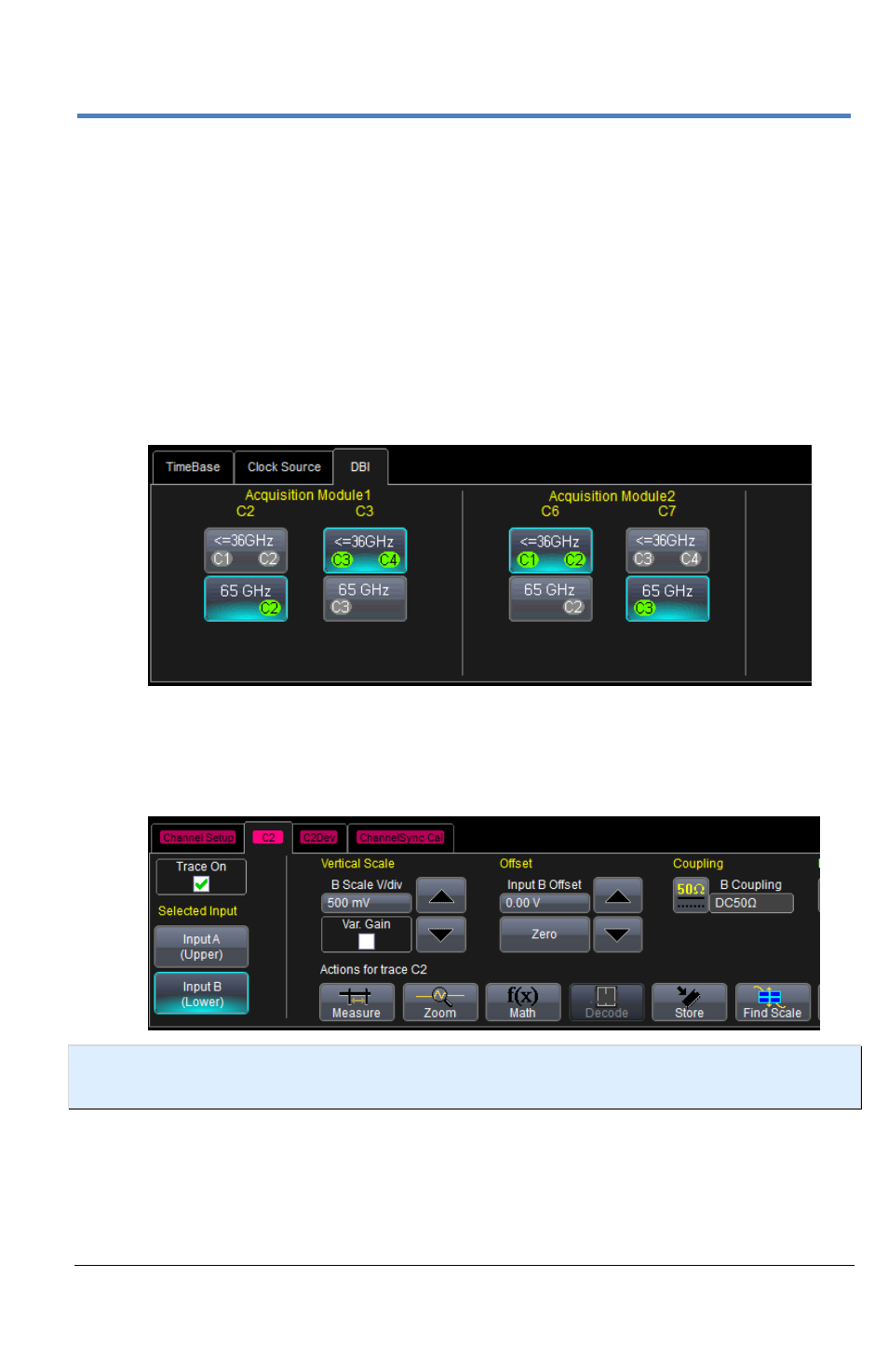

Select the inputs to combine by touching the corresponding higher
bandwidth button beneath the pair (in the image below, 36 GHz C1
and C2 are combined into one 65 GHz C2). The active input is
highlighted. Combinations can be made in one or all modules.

The respective channels are combined into higher bandwidth
channels, labeled "Input B".

On the Channel setup dialog, select Input B.

NOTE

: Use Channel

for high-speed serial triggering, even in cases where the

oscilloscope is operating in 50, 60, or 65 GHz modes.
