Aux Output

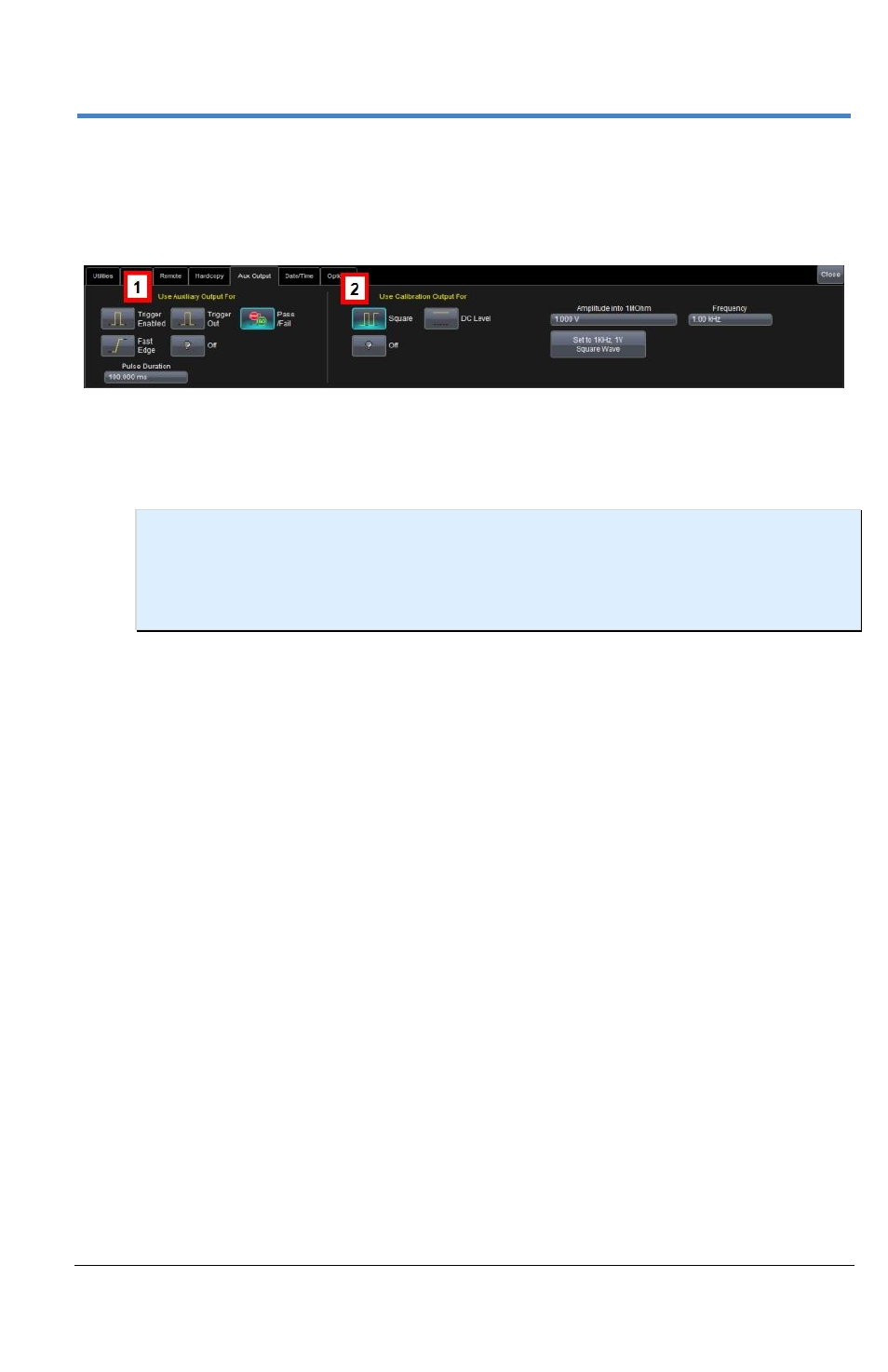

The Aux Output dialog allows you to specify Auxiliary and Calibration
Output details.
1.
If you want a specialized output, touch one of the following buttons
under Use Auxiliary Output For: Square Wave, Trigger Enabled,
Trigger Out, Pass/Fail, or Off.
NOTE
: If
Pass/Fail
is selected on this
Use Auxiliary Output For
section of
the dialog, a
Pulse Duration
data entry control is made available. Provide a
value within your instrument's specified range. Refer to datasheet
specifications at www.teledynelecroy.com.
2.
On the Use Calibration Output For section of the dialog, choose
Square, DC Level, or Off. If you want a 1 kHz, 1 V Square Wave, touch
the Set to 1 kHz, 1 V Square Wave button.
3.
If Square or DC Level is selected, enter these additional values:
If you selected Square, enter a Frequency .
If you selected Square or DC Level, enter an Amplitude into 1
MΩ.
