Pass/fail testing – Teledyne LeCroy LabMaster 10Zi Operators Manual User Manual
Page 129

Getting Started Manual
922561-00 Rev A
121
5.

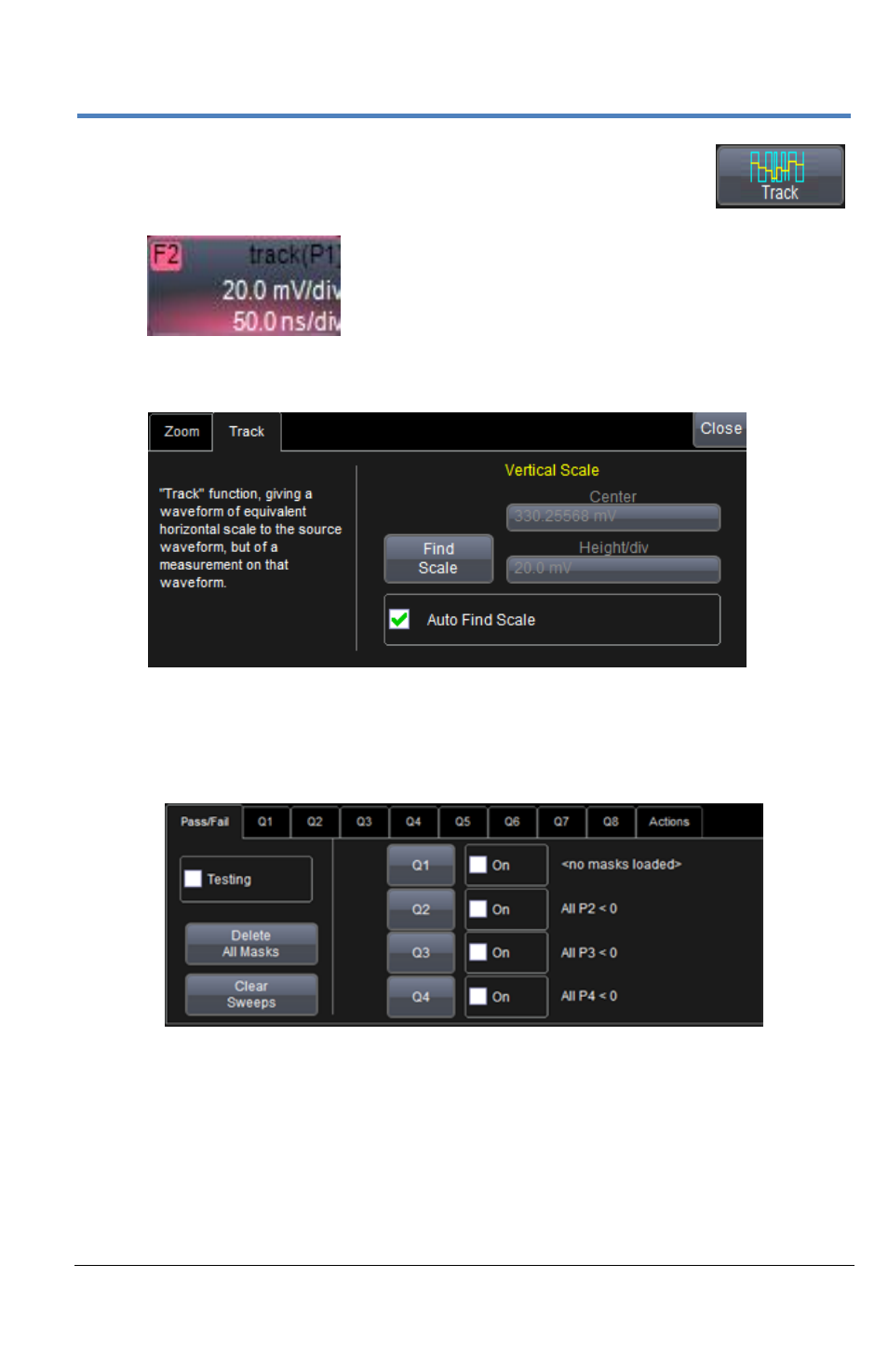

Touch the Track button at the bottom of the dialog
and select a math function location (Fx) on which to
store the Track display.
The Track is then shown along with its
respective trace descriptor label for the selected
math function.
6.
Touch the newly displayed Track math function trace label if you
want to change any settings in the Track dialog:
Pass/Fail Testing
Access the main Pass/Fail dialog by selecting Analysis → Pass/Fail Setup...
from the menu bar. The main Pass/Fail dialog is shown.
Access the respective Qx dialogs either by touching a Qx button on this
main Pass/Fail dialog, or touching a Qx tab as described in Displays
Containing Masks (on page 96).
When you have each of the Qx dialogs configured and enabled as desired,
you can then begin your testing and turn them all on or off using the Testing
checkbox on the main Pass/Fail dialog. You can also specify Actions for all or
some of your conditions using the Actions dialog.
