Fairbanks FB6002 INSTRUMENTATION User Manual
Page 9
Section 1: General Information
01/13
9
51293 Rev. 2

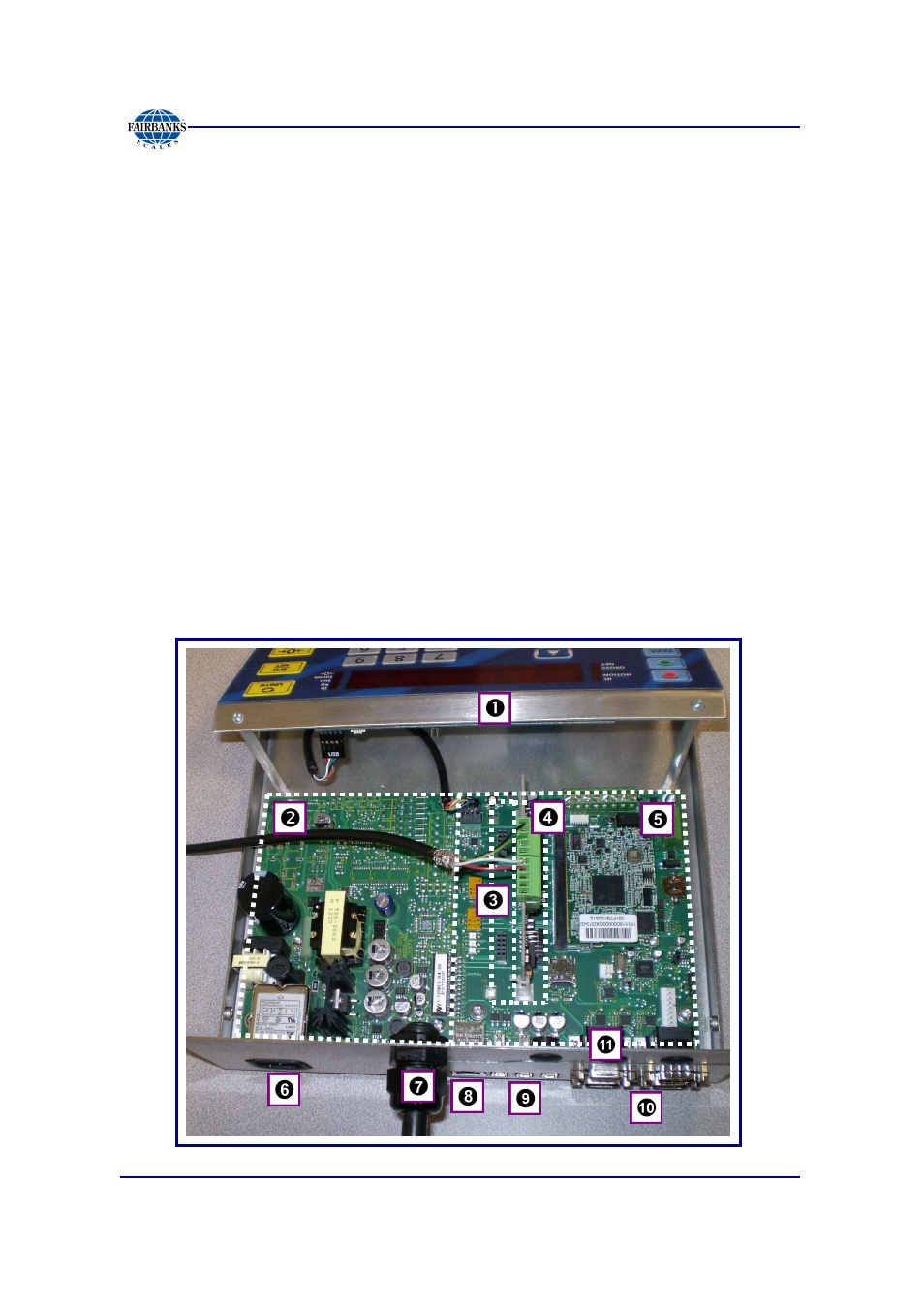

1.2. FB6001/2 INSTRUMENT COMPONENTS
Each FB6001/2 instrument consists of four (4) primary hardware components, as
listed below.
1. Front Panel Assembly
2. Power Supply PCB Assembly
4. Analog PCB Assembly
3. One of Two Expansion Modules
─
Analog Relay Card
─
4 to 20mA Card
5. Base Board (SBC) Assembly
Other elements include the following.
6. Power Cable Outlet
9. Three (3) USB Jacks
7. Load Cell Cable Gland
10. Three (3) RS232 9-pin Serial I/O COM (Ports 1, 2, 3)
8. RJ45 Network Cable Port
11. RS232 Port (Console) for remote programming and
configuration utilities
