Section 6: Serial Input / Output

01/13

64

51293 Rev. 2

6.5.5.

SP298 Printer Settings

For FB6001/2 Instrument Desktop and NEMA 4X

SERIAL communications, use cable

25932

.

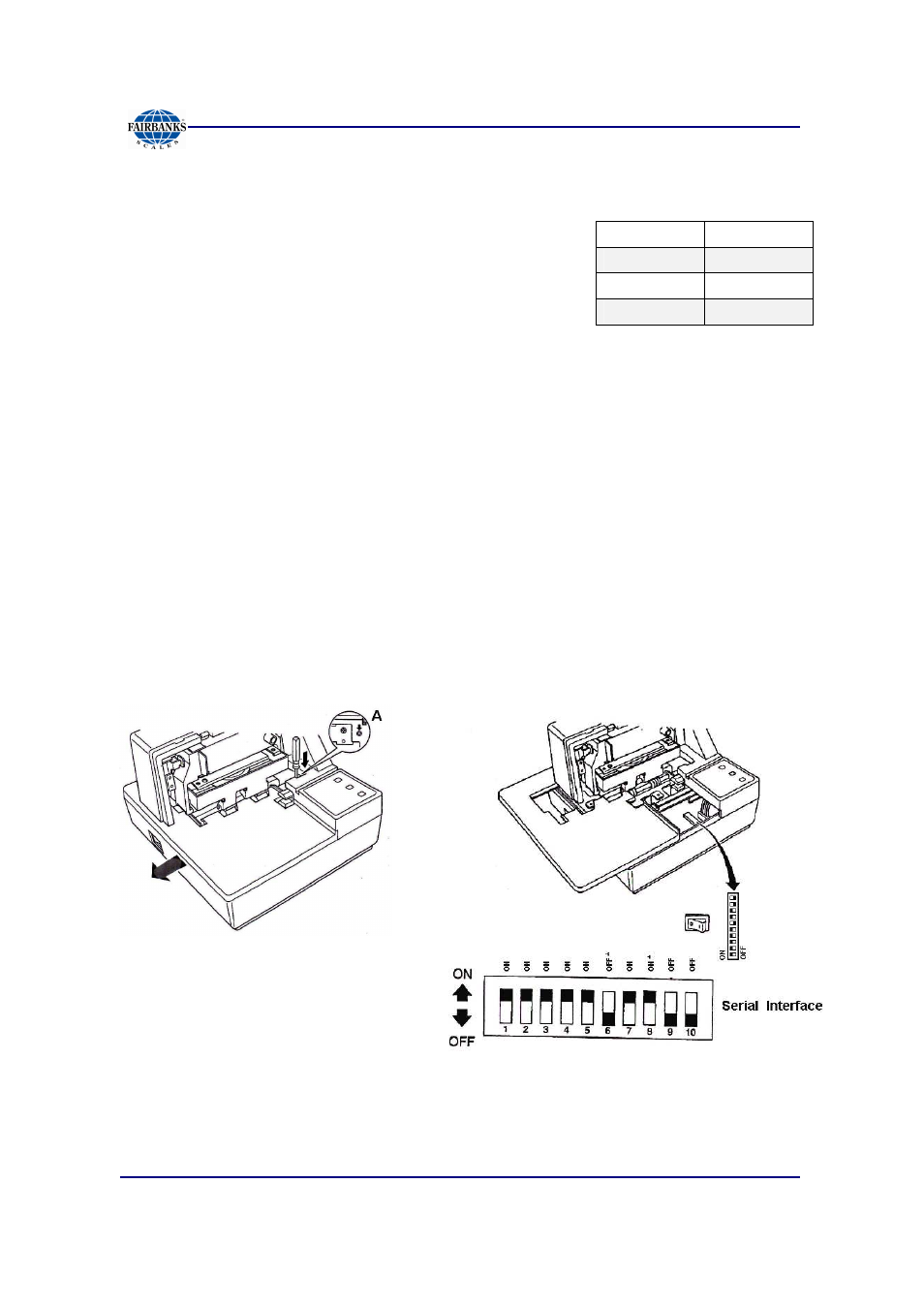

ACCESSING THE DIP SWITCHES

1.

REMOVE ALL POWER FROM THE PRINTER, AS WELL AS ALL NETWORK
CABLES FROM BETWEEN THE PRINTER AND THE INSTRUMENT.

2. Remove the

Printer Cover

.

3. Press down with a screwdriver at

Location “A”

marked in the illustration

below, and carefully slide the Document Table in the direction indicated by the
arrow until it is out of the way.

– It is not necessary to remove the document table completely. Just move it

enough to access the DIP Switches inside.

4. Set the

DIP Switches

into their correct positions.

5. Slide the Document Table back into place while pressing down at

Location

“A”

.

6. Replace the

Print Cover

.

BAUD

9600

PARITY

No

DATA BITS

8

STOP BIT

1
