Tm-u295 ticket printer settings – Fairbanks FB6002 INSTRUMENTATION User Manual
Page 63
Section 6: Serial Input / Output
01/13
63
51293 Rev. 2
6.5.4.

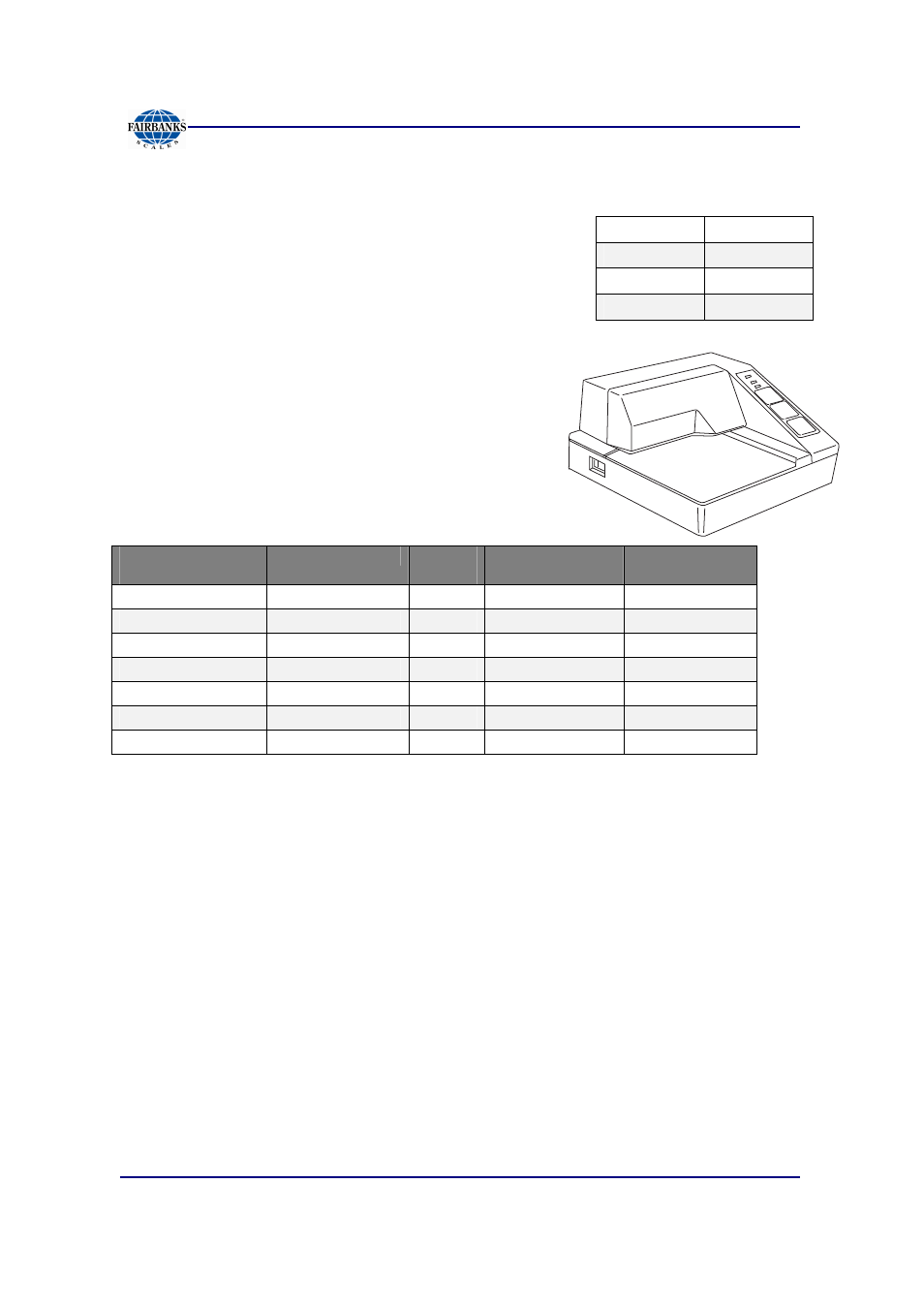

TM-U295 Ticket Printer Settings
•
For FB6001/2 Instrument Desktop and NEMA 4X
SERIAL communications, use cable
25932
.
.
Set the printer dip switches as listed below.
SW1: 1 and 3 =
ON
Remainder =
OFF
Cable
25932
Wiring for COM 1-3
BAUD
9600
PARITY
No
DATA BITS
8
STOP BIT
1
DB-9
INSTRUMENT
DESCRIPTION
WIRE
COLOR
DB-25
PRINTER
DESCRIPTION
2
RxD
BR
2
TxD
3
TxD
R
3
RxD
4
DRT
O
6
DSR
5
SG
Y
7
SG
6
DSR
G
20
DTR
7
RTS
BL
5
CTS
8
CTS
BK
4
RTS
