Section 6: Serial Input / Output

01/13

68

51293 Rev. 2

6.5.7.

SP2000 Printer Settings

The SP2000 is a Dot Matrix ticket printer. The following switch settings and cable
requirements will work with the default format.

For FB6001/2 Instrument Desktop and NEMA 4X

SERIAL communications, use cable

25932

.

Set the printer’s dip switches according to the following:

DSW 1

:

All

OFF

.

DSW 2:

Three (3) ON

only.

DSW 3:

One (1)

and

five (5) ON

only.

6.5.8.

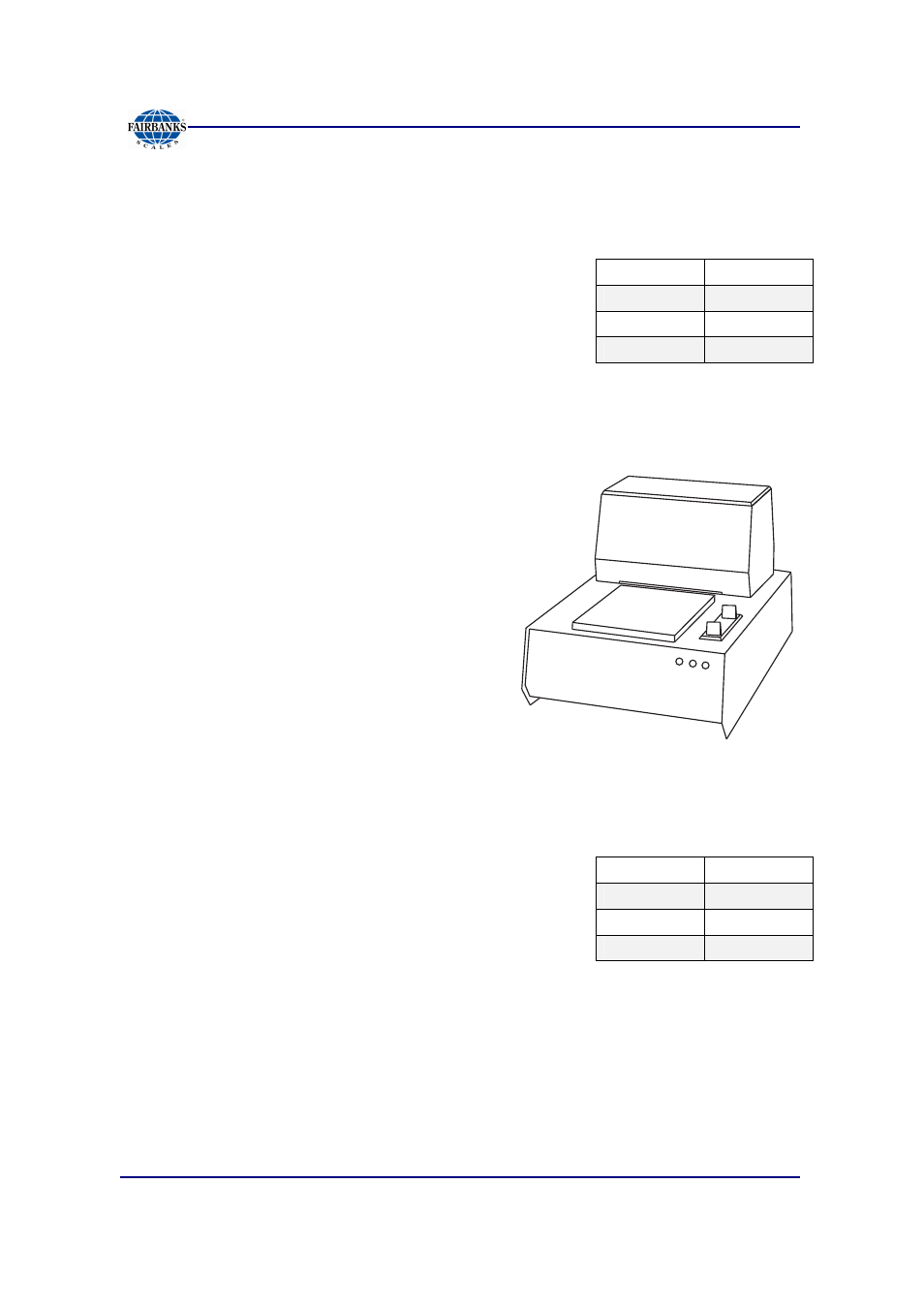

SP2200 Printer Settings

The SP2200 is a Dot Matrix ticket printer. The following switch settings and cable
requirements will work with the default format.

FB6001/2 Desktop and NEMA 4X use cable

25932

.

Set the printer’s dip switches according to the following:

DSW 1:

Two (2), three (3), and eight (8)

ON

only.

DSW 2

and

3:

All

OFF.

BAUD

2400

PARITY

EVEN

DATA BITS

7

STOP BIT

1

BAUD

2400

PARITY

NO

DATA BITS

7

STOP BIT

2
