Programming the inbound ticket format, Inbound – Fairbanks FB6002 INSTRUMENTATION User Manual
Page 43
Section 5: Configuration Menu
01/13
43
51293 Rev. 2
5.4.4.Programming the Inbound Ticket Format
Defined below is the structure and appearance of an
Inbound
ticket example.

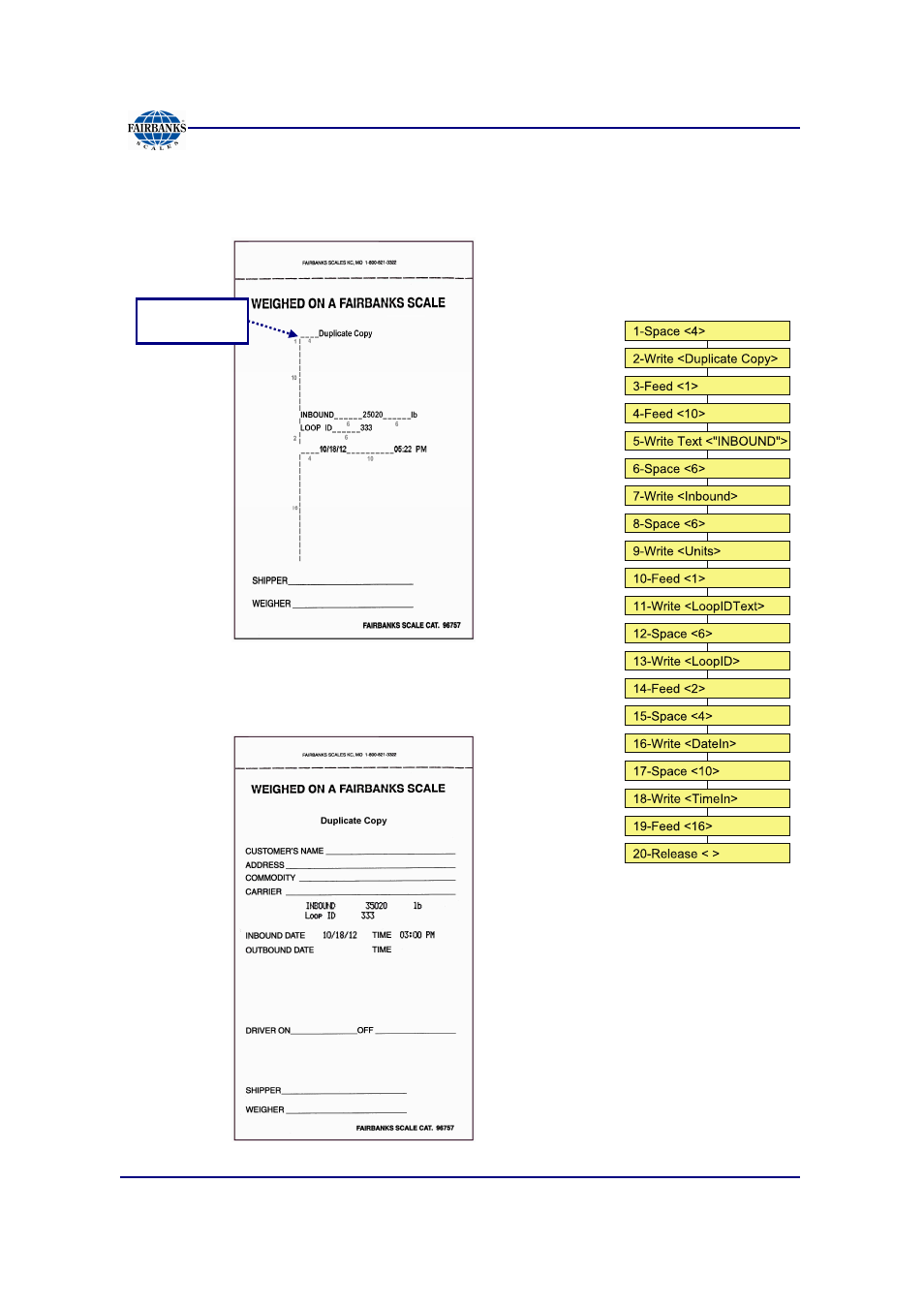

The image above shows the printed areas and other
defined elements of the ticket.
– All grey markings are for illustration purposes
only, and not printed.
Example of an Inbound Ticket.
X / Y axis
starting point.
The flow chart above outlines
the coordinates for each
element of the Inbound Ticket.
