CAL Menu

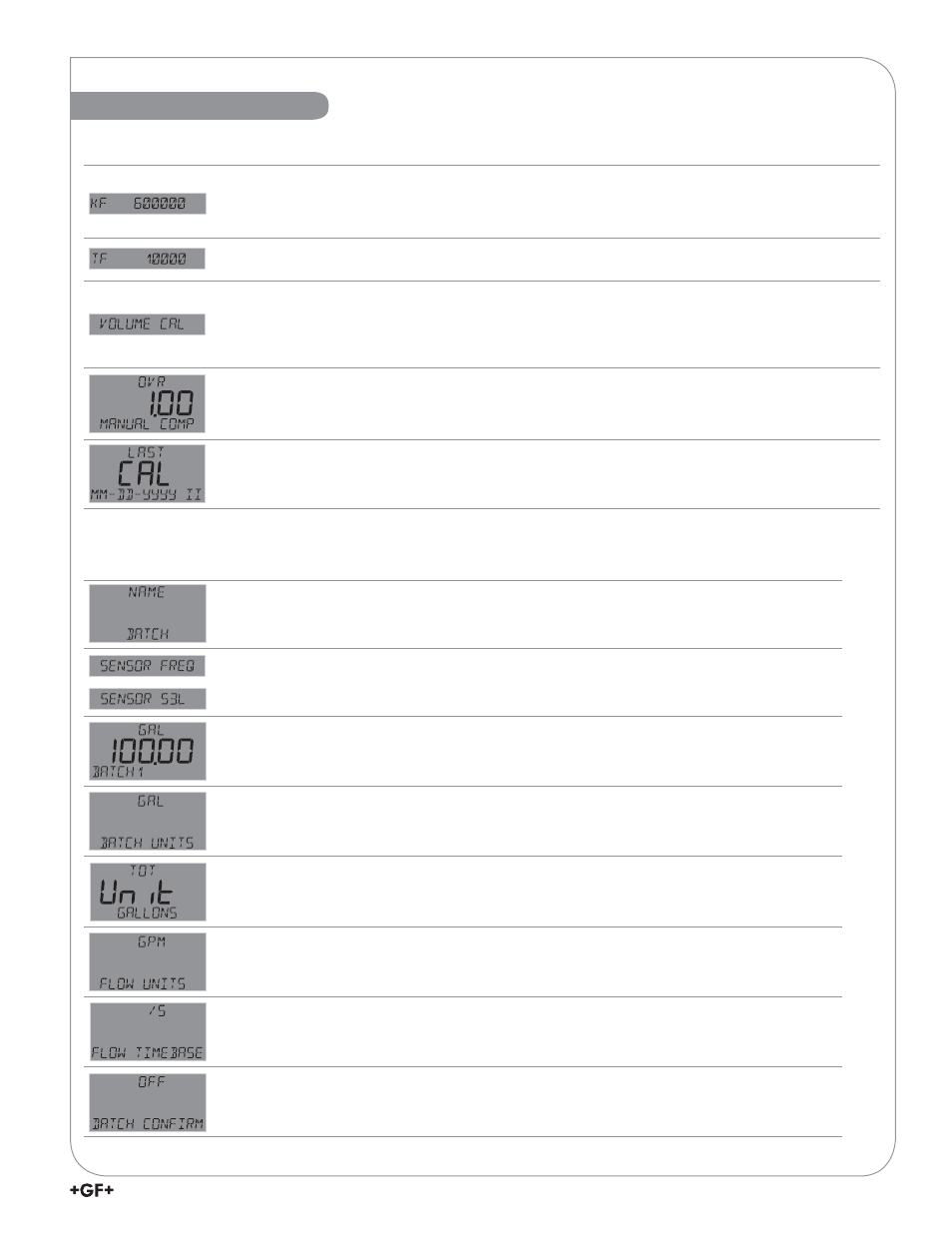

K-Factor Set K-Factor (pulses per unit volume) according to Flow Sensor manual.
Min: 0.0001, max: 999999. Cannot be zero. Default = 60.0000. In Simple Mode, the K-Factor will be used
for all batches. In Advanced Mode, there is one K-Factor for each stored batch. See NOTE in Calibration
section for Volume Calibration procedure.
T-Factor sets the volume of each count of the Totalizer as a multiple of the volume unit of the K-Factor.
Min: 0.0001, max 999999. Cannot be zero. Default = 1.0000.
Volume Calibration Enter the dispensed volume so the 9900 can calculate a K-Factor. Refer to Volume
Calibration section on page 24 for procedure.
Note:
Relays and 4 to 20 mA output will be suspended while Volume Calibration is performed, except
for relays used for Batch or Two Stage modes. Relays in pulse mode will suspend pulsing while Volume
Calibration is being performed.
Manual Overrun Compensation (ADVANCED Mode only) When Manual Compensation is enabled, a
batch will be stopped when the dispensed batch volume reaches an amount equal to the batch size volume
minus the Manual Overrun Compensation volume.
Calibration Date Enter date of calibration (mm-dd-yyyy) and initials of calibrator (ii).
Menu System
Customize Label If desired, a custom name can be entered. Enter 13-character string.
Default = BATCH.
Freq or S 3 L If your fl ow sensor is confi gured for frequency output, select FREQ.
If confi gured for Digital (S 3 L) output (recommended), select S3L. Default = FREQ.
Batch Size Set batch size and batch name of up to ten stored batches.
Setting batch size to zero hides the batch in VIEW Mode. One batch must be non-zero.
Note: Same batch names can be assigned to multiple batches.
Batch Units Enter up to four characters to defi ne Batch Units. Default = GAL. (Actual calculations
are determined by the K-Factor).
Divide this unit by Flow Timebase to get Flow Units.
Totalizer Units Identifi es the Totalizer Units. It has no effect on any calculation.
Default = GALLONS.
Flow Units Identifi es the Flow Units. It has no effect on any calculation.
Flow Units equal Batch Units divided by Flow Timebase. Default = GPM.
Flow Timebase Select S (seconds), M (minutes), H (hours), or D (days). Default = s.
Batch Confi rmation Select Batch Confi rmation option. Choose ON, OFF, or PWD (password).
Default = OFF.
