6. STRUCTURE AND FUNCTION
6.1. Structure
The angle seat valve consists of a pneumatically actuated piston
actuator and a 2/2-way valve body.
The actuator is manufactured from polyphenylene sulphide (PPS).
The tried and tested, self-adjusting packing gland ensures high
tightness. The streamlined valve body made of stainless steel
enables high flow values.
Transparent cap with position indicator
Actuator cover
Actuator body
Angle seat body
Numbers for indicating the
direction of flow

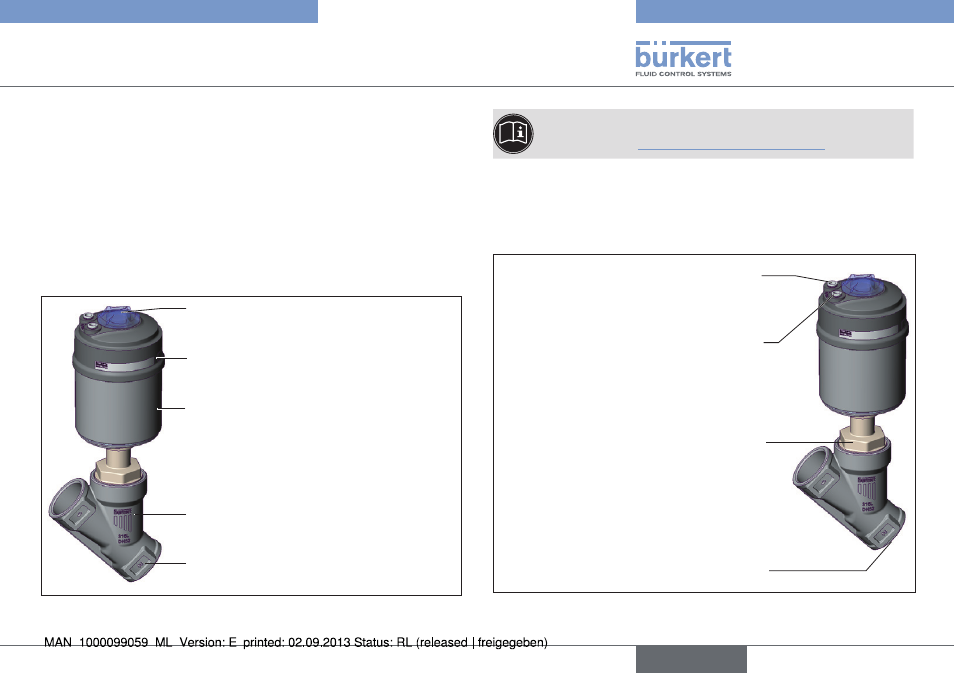

Fig. 1: Angle seat valve Type 2100, structure and description, (1)
The description of the control function (CF) can be found in
chapter entitled “6.2.1. Control functions (CF)”
Air discharge connection for CFA, CFB
Pilot air port for CFI
Pilot air port for CFA, CFB, CFI
Interface actuator/body
with flats
Port connection
2
1
