BEI Sensors MHK5 Absolute Hollow Shaft Encoder User Manual
Page 63

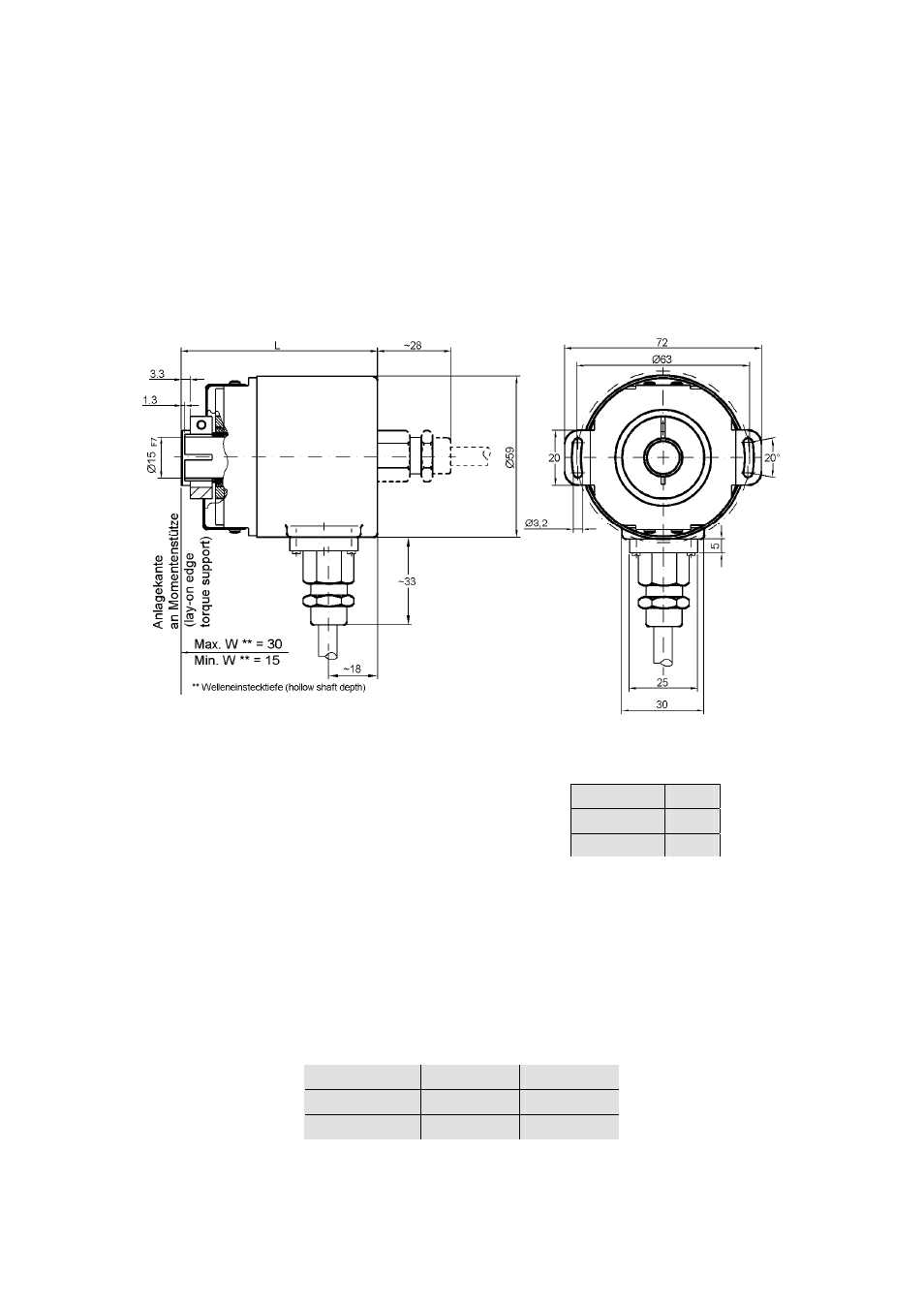

Blind shaft (B)
Cable exit (cable diameter = 8 mm) or 5 pin M12 connector
Mounting instructions
The clamp ring should only be tightened if the
shaft of the driving element is inserted into the
hub shaft.
The diameter of the hollow shaft can be reduced
to 12mm, 10 mm or 8 mm by using an adapter
(this reducing adapter can be pushed into the
hollow shaft).
Maximum shaft movements of the drive element
are listed in the table.
Axial
Radial
static
± 0,3 mm
± 0,5 mm
dynamic
± 0,1 mm
± 0,2 mm
L
Single-Turn
72mm
Multi-Turn
81mm
