17

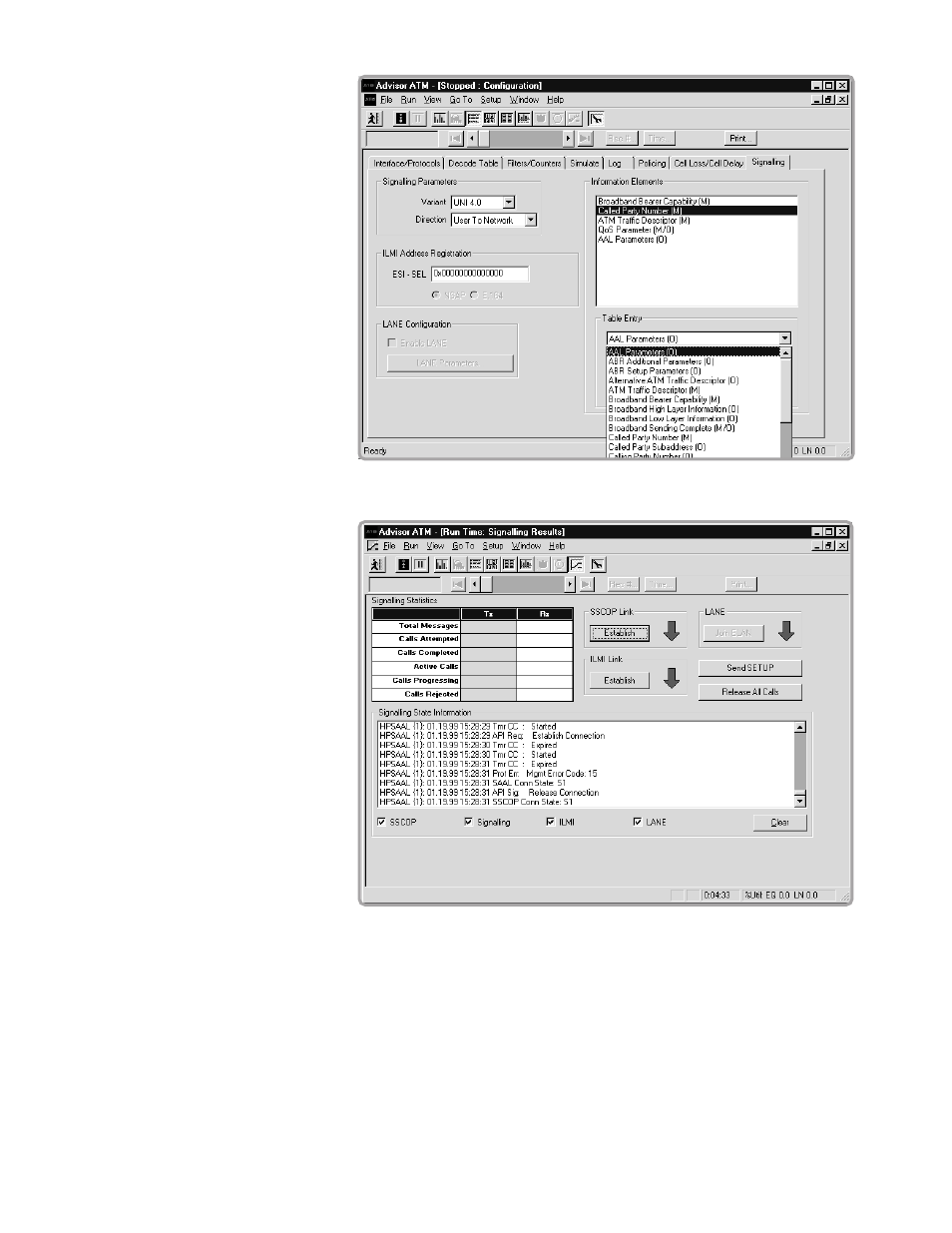

Figure 4: Signaling Configuration.
Figure 5: Signaling Results.
ATM Testing (continued)
Physical Layer
Inverse Multiplexing for ATM (IMA)
The Advisor can now decode IMA Control Protocol cells. These ICP cells are
sent regularly on each E1 or T1 in an IMA Link Group in order to manage the
IMA process. The ability to decode and display these physical layer cells helps
troubleshooters identify IMA configuration problems.
