Routine Maintenance
As an end user/owner, there is a limited amount of
maintenance that you may need to perform on the console.
To keep the unit in good, serviceable condition, follow the
procedures outlined below.
Warning
Do not attempt to open the console
unless you are a certified Franklin
Fueling Systems technician. Electrical
hazards exist and injury or death may
occur if the console interior is accessed
by unauthorized personnel.
Console Care
Carefully wipe the outer areas of the console with a soft,
damp cloth to remove any residue or build-up. Some
chemicals may damage the protective cover on the
LCD display. Avoid spraying the console with anything
directly. Cords and cables routed from the inside and
bottom of the console could contain electrical energy. Use
caution in these areas to avoid shock. Ensure that data
communications and electrical energy lines are segregated
so that electrical interference will not be induced into data
transmission lines, or erroneous data returns could result.
LCD Touch Screen
Calibration
If the touch screen does not appear to be accurately
registering “touches,” it may need to be calibrated. To
calibrate the touch screen function of the display, you must
first access the calibration application*.
1. From the
Quick Jump Menu, select Utilities and then
select Tools / Calibrate TouchScreen.
2. You will be asked if “you are sure,” answer Yes.
3. Follow the on-screen instructions to complete the
calibration process.
* Note - If you are unable to navigate to the Tools menu to
calibrate you can reboot the TS-550 evo and wait
for the Loading Status Bar to be full and press and
hold the LCD touch screen for ten seconds. This
will run the touch screen calibration.
Internal Printer
To Change Printer Paper

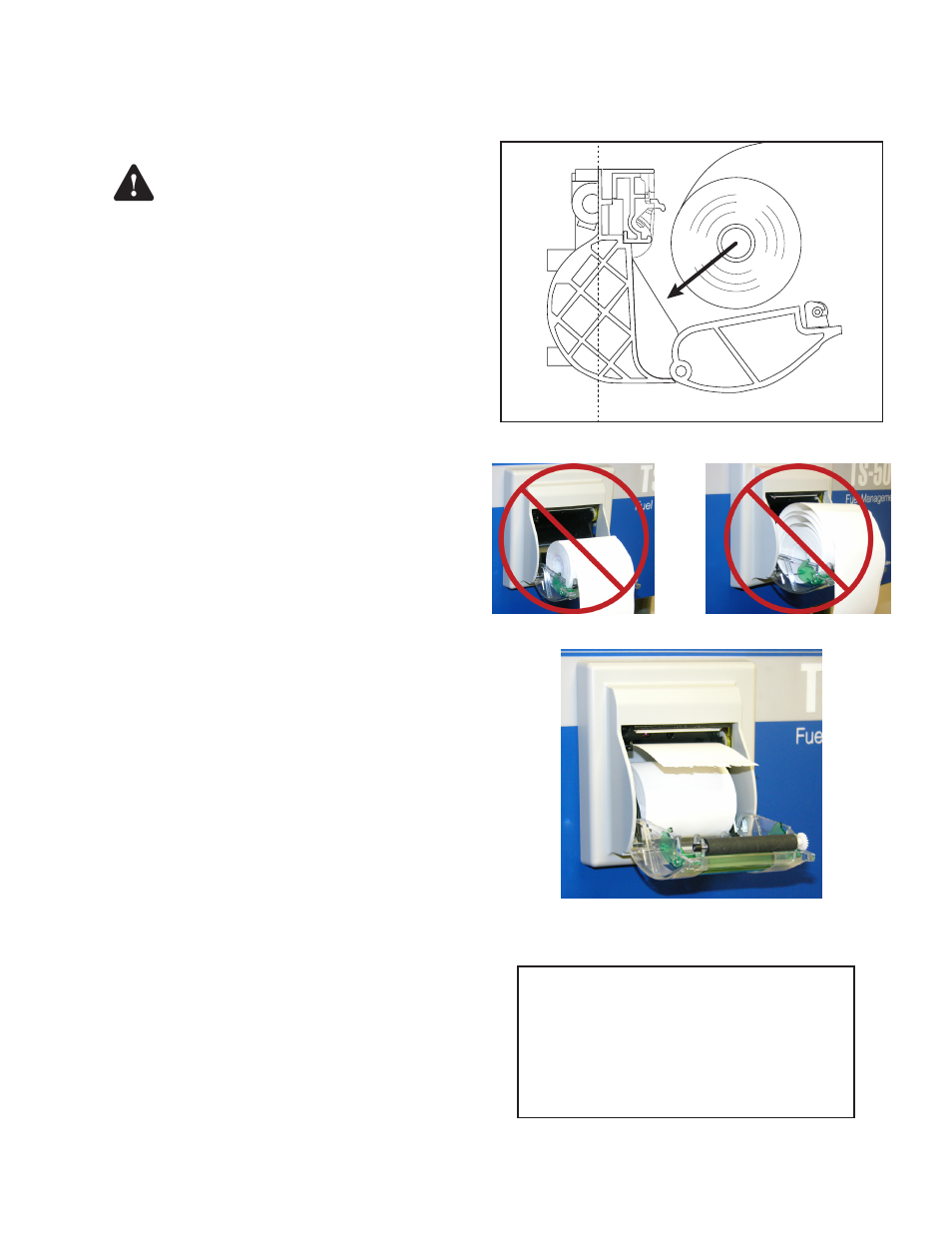

1. Lift up on the green panel to open the printer and load
paper. Make sure the roll is oriented as shown.
Load Paper
Do NOT load paper from door, Do NOT have paper wound
loosely
Paper Loaded Correctly
2. Close the printer door.
3. Restore power to the tank gauge.
Paper Specifications
Type: Thermal Printer Paper
Width: 58 mm (2.28”)
FFS part #: TS-TP2 (box of 5 rolls)
TS-TP2C (Carton of 20 boxes = 100 rolls)
