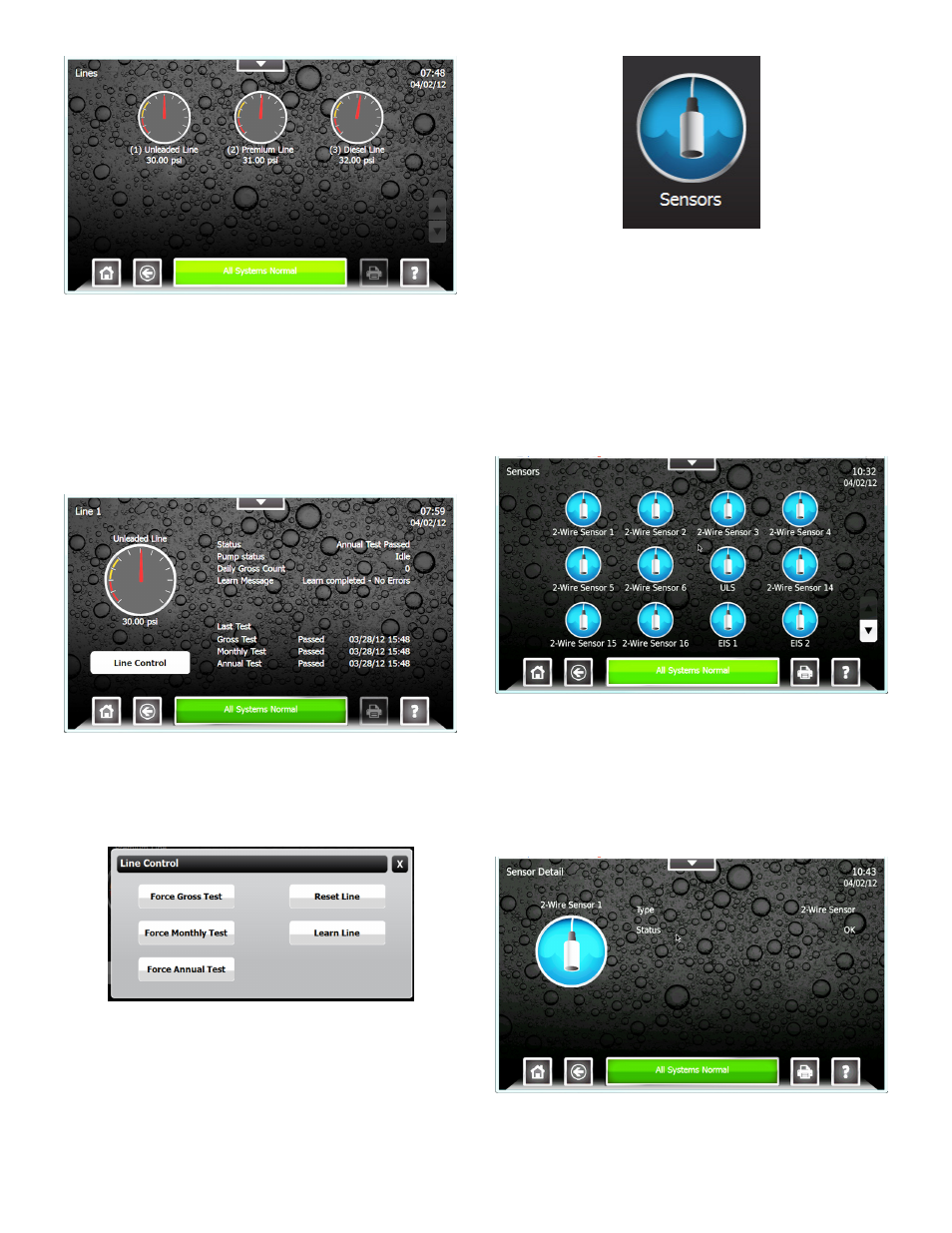

Line Status Detail Screen
The Line Status Detail screen will provide detailed
information on Line Leak Testing and the Line Status. The
Line status, Pump status, number of Gross Leak Tests
performed, Line Learn Messages, and the date and time
of the last line test completed. An alarm condition on the
Line is also indicated here, if present. From the Line Detail
screen Line Control can be accessed. To access the Line
Status Detail Screen select a line from the Line Status
Summary screen.
Line Controls feature can be accessed using the Line
Control Button on the Line Status Detail Screen. This will
allow authorized users and technicians to start line leak
tests, reset the line, and learn the line.
Sensor Status Summary Screen
The Sensor Status Summary screen displays a graphical
representation of a sensor, the name of the sensor and
will indicate any alarm conditions. Pressing the print button
from the screen will print a sensor status report for all of the
sensors.
To access the Sensor Status Summary screen select
Sensors from the Quick Jump Menu (QJM).
Sensor Status Detail Screen
The Sensor Status Detail screen will provide details on
the sensor type and the sensors current status. Any alarm
condition on the Sensor is also indicated here, if present.
Pressing the print button from this screen will print a sensor
report for that tank. To access the Sensor Status Detail
Screen select a sensor from the Sensor Status Summary
screen.
